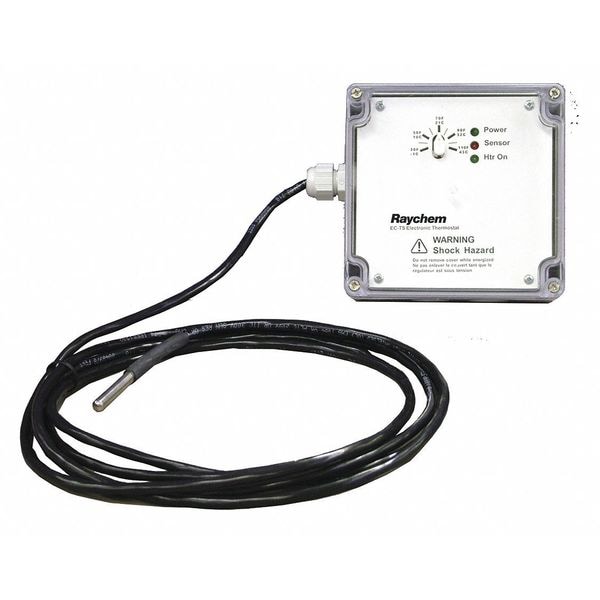

Line Voltage Thermostat, Heat Only, 30 to 110F, Exposed Dial, Push Buttons, 100 to 277V AC, 1H

  • Mfr # EC-TS

  • Zoro # G3886517

product price:
$
579.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Floor Heating and Snow Melting Applications, Flow Maintenance, Freezer Frost Heave, Pipe Freeze Protection
Display Type
LED
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EC-TS
Zoro #
G3886517
UPC #
715629007278
Country of Origin
United States

Dimensions

Sensing Bulb Dia.
1/4 in
Overall Length
4-1/2 in
Lead Length
25 ft
Overall Width
4-3/4 in
Overall Height
4-13/16 in
Overall Depth
2 in
Mounting Hole Diameter
5/32 in
Bulb Length
2 in

Details

Compatible System Type
Floor Heating and Snow Melting Applications, Flow Maintenance, Freezer Frost Heave, Pipe Freeze Protection
Display Type
LED
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
Number of Heating Stages
1
Temperature Control Range
30 to 110 Degrees F
Control Type
Exposed Dial, Push Buttons
Voltage
100 to 277V AC
Mounting
Wall
Item
Line Voltage Thermostat
Contact Rating Resistive @ 240V
30 A
Includes
25 ft Temperature Sensor, Positive Off, Remote Sensing Bulb
Sensor Type
Thermistor
Contact Rating Resistive @ 120V
30 A
Standards
cULus Listed
Number of Switches
1
Contact Rating Resistive @ 277V
30 A
Resistive Amps @ 208VAC
30 A
Enclosure Type
Plastic
Number of Relay Outputs
0
For Use With
Any hardwired heating cable system
Number of Relay Inputs
0
Thermostat Type
Line Voltage Electronic Thermostat
Features
Adjustable Set Point Range 30 Degrees F to 110 Degrees F
Minimum Operating Temperature
-40 Degrees F
Temperature Differential
4 Degrees F
Stages
1H
Number of Poles
1
Fan Settings
No Fan Setting
System Settings
Heat-Off
Electrical Connection Type
Screw Rising Cage Clamp
Full Load Amps @ 240V AC
30 A
Enclosure Color
Gray
Contact Rating
100 to 277V AC
Temperature Readout
No
Minimum Control Temperature
30 Degrees F
Frequency
50 Hz, 60 Hz
Mounting Direction
Horizontal
Full Load Amps @ 120V AC
30 A
Includes Positive Off
Yes
Temperature Sensitivity
+/-3 Degrees F
Differential Type
Fixed
Amperage
30 A
Temperature Scale
Fahrenheit/Celsius
Maximum Operating Humidity
90 %
Enclosure NEMA Rating
4X
Maximum Operating Temperature
212 Degrees F
Housing Material
Polycarbonate
Lead Material
PVC
Minimum Operating Humidity
0 %
Maximum Control Temperature
110 Degrees F
Programming Capability
Not Programmable
Lead Gauge
20 ga
Lead Wire Gauge
20 ga
Resistive Amps @ 208V AC
30 A
Housing Color
Gray

Description

Line Volt Electronic Tstat, Thermostat Switch Type SPST, Thermostat Control Range 30 Degrees to 110 Degrees F, Thermostat Voltage 100 to 277V AC, Full Load Amps @ 120VAC 30 A, Full Load Amps @ 240VAC 30 A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating, Remote Sensing Bulb Included Yes, Switch Action Open on Rise, Number of Switches 1, Differential 4 Degrees F, Height 4 13/16 in, Width 4 47/64 in, Depth 2 in, Temp. Sensitivity +/-3 Degrees F
