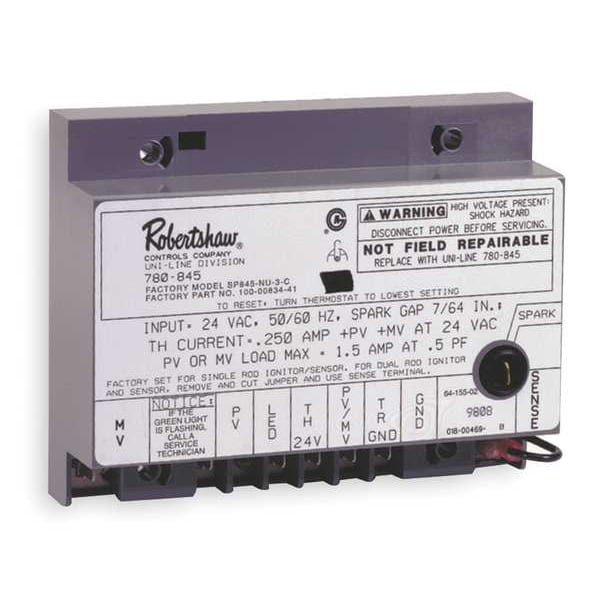

Ignition Module, Intermittent Pilot, 24 V

Mfr # 780-845
Zoro # G2030131

147.99

Free Shipping & Returns

Key Features

Electrical Ratings

24V AC

Voltage

Prepurge Time (Sec.)

360 sec

Amps AC

1 A

Type

Intermittent Pilot Ignition

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 780-845
Zoro #: G2030131
UPC #: 662013644727
Country of Origin: Mexico

Dimensions

Depth (In.): 34 in
Overall Depth: 34 in

Details

Electrical Ratings: 24V AC
Voltage: 24
Prepurge Time (Sec.): 360 sec
Amps AC: 1 A
Item: Ignition Control
Type: Intermittent Pilot Ignition
Bracket: Universal
Gas Type: LP/NG
Control Volts: 24 V
Electrical Connections: 1/4 in Quick Connect
For Use With: Residential, Commercial Heating Equipment
Includes: Diagnostic LED
Retries: 3
Standards: cCSAus
Product Type: Ignition Control
Lock Out Time: 90 sec
Pre-Purge Time: 6 min
Control Voltage: 24V AC
Pilot Valve Current Output: 1 A
Input Voltage: 24V AC
Ignition Cycle Time: 90 seconds
Maximum Input Current: 1.5 A
Main Valve Current Output: 1 A
Minimum Operating Temperature: -40 Degrees F
Frequency: 50/60 Hz
Automatic Reset Time: 1 hr
Series: 780
Compatible with Brand: ACM Email,Acme Industries,Acme Miami,Acme National,Acro,Addison,Addressograph,Adhesive Machining,Admiral,Adrian Steel,Advanced Machine,Aerovent Fan & Equip,Air Comfort (Mcgraw),Airflow,Binet,Blissfiel,Bradford-White,Brown Stove,Cabell,Catalina,Cavalier,Cemco,Chamberlain,Chicago Dryer,Circle Steel Corporation,Climate Master,Collectramatic,Columbus Showcase,Comfortmaker,Cubec,Custom Made Products,Cutler Hammer,D.P.D. Mfg. Company,Dacor,Dairy Equipment,Dallas Hermetic,Davis Products,Davmor Industries,Davmor Prod System,Dawn Equipment,Dayton,DCA Food,De Laval Separator,Dean,Dearborn,Decatur Works,Deepfreeze,Deering,Delanair Engineering,Delco,Delfield (Alco Food),Delmonico,Dentsply,Despatch Industries,Detrol Miller-Harris,Dexter,Dextrex Chemical,DI-EL,Digistat,Discovery Canada,Dixie,Dixon,Doboy Packaging,Dole Refrigeration,E-Tech,Eaton,Economics Lab,Ed PAC/AC,Edison,Eisco Limited,Electric Heaters,Electric Motor Serv,Electric Switch,Electro Freeze,Electro-Home,Electro-Therm,Electromode,Elixier,Elkay,Ellis & Watts,Elmet,Embassy Industries,Ember/Glow,Emerson,Essick,Evans,Evcon Air Pro,Garland,General Steel Wares,Henney Penney,Hydro-Matic Pump,Illinois Range,Internat Harvester,International,Johnson Controls,Johnstone Supply,Kaico Vending,Keeprite Products,Kellogg-American,Koehring Construction,Kold Pack,Koldair,Kool-Fire,Leeds & Northrup,Leemco,Lennox,Lincoln Food Service,Nova Controls,Pitco,Robertshaw,Uni-Line,White-Rodgers
Flame Sensor Current Output: 0.7 mA
Number of Retries: 3
Compatible with Series: Universal
Thermostat Anticipator Setting: Thermostat Anticipator
Replacement Type: Universal
Electrical Connection Type: 1/4 in Quick-Connect
For Fuel Type: LP, Natural Gas
Maximum Operating Temperature: 175 Degrees F
OEM Replacement Part Number: 00018-03940,00018-03941,100-00802-02,100-00802-06,100-00826-01,100-00826-02,100-00826-03,100-00826-51,100-00831-01,100-00831-02,100-00831-03,100-00831-05,100-00831-06,100-00831-07,100-00831-10,100-00831-12,100-00831-13,100-00831-14,100-00831-15,100-00831-51,100-00831-52,100-00831-53,100-00831-60,100-00831-62,100-00831-63,100-00831-65,100-00834-01,100-00834-02,100-00834-03,100-00834-04,100-00834-05,100-00834-06,100-00834-07,100-00834-08,100-00834-09,100-00834-10,100-00834-11,100-00834-12,100-00834-13,100-00834-16,100-00834-18,100-00834-19,100-00834-20,100-00834-21,100-00834-22,100-00834-23,100-00834-24,100-00834-25,100-00834-26,100-00834-27,100-00834-28,100-00834-29,100-00834-30,100-00834-31,100-00834-32,100-00834-33,100-00834-37,100-00834-38,100-00834-39,100-00834-40,100-00834-41,100-00834-43,100-00834-44,100-00834-45,100-802-02,100-802-06,100-826-01,100-826-02,100-826-03,100-826-51,100-831-01,100-831-02,100-831-03,100-831-05,100-831-06,100-831-07,100-831-10,100-831-12,100-831-13,100-831-14,100-831-15,100-831-51,100-831-52,100-831-53,100-831-60,100-831-62,100-831-63,100-831-65,100-834-01,100-834-02,100-834-03,100-834-04,100-834-05,100-834-06,100-834-07,100-834-08,100-834-09,100-834-10,100-834-11,100-834-12,100-834-13,100-834-16,100-834-18,100-834-19,100-834-20,100-834-21,100-834-22,100-834-23,100-834-24,100-834-25,100-834-26,100-834-27,100-834-28,100-834-29,100-834-30,100-834-31,100-834-32,100-834-33,100-834-37,100-834-38,100-834-39,100-834-40,100-834-41,100-834-43,100-834-44,100-834-45,14301,1601677,1781902,181723,182352,182672,18G9101,1TGD9,21347,22448,233-39762-00A,233-39949-00A,233-39949-00B,233-39949-00C,233-81839-00A,2405500,2619600,32-0319,38160B001,39,41K2701,50D50-843,51885A,5H73325B,5H73696B,60132501,601378,630846,64472,7-70151,70754,780-737,780-745,780-84E,97H0401,98203,SP735L,SP745,SP745-NL-1-30,SP745-NL-1-60,SP745-NL-3-60,SP745-NL-3-60-0.5,SP745-NR-1-60,SP745-NR-3-75-0.5,SP745-NR-C-60-30,SP745-NR-C-90-06,SP745-NU-3-60-5,SP845-NL-1-C,SP845-NL-1-L,SP845-NL-3-C,SP845-NL-3-L,SP845-NR-3-C,SP845-NU-3-C,SP845NR1L,SP845NR3L

Description

Ignition Control, Product Type Ignition Control, Maximum Operating Temperature 175 Degrees F, Minimum Operating Temperature -40 Degrees F, Lock Out Time 90 sec, Pre-Purge Time 6 min, Number of Retries 3, Main Valve Current Output 1 A, Flame Sensor Current Output 0.7 mA, Ignition Cycle Time 90 seconds, Automatic Reset Time 1 hr, Compatible with Series Universal
