Raytek

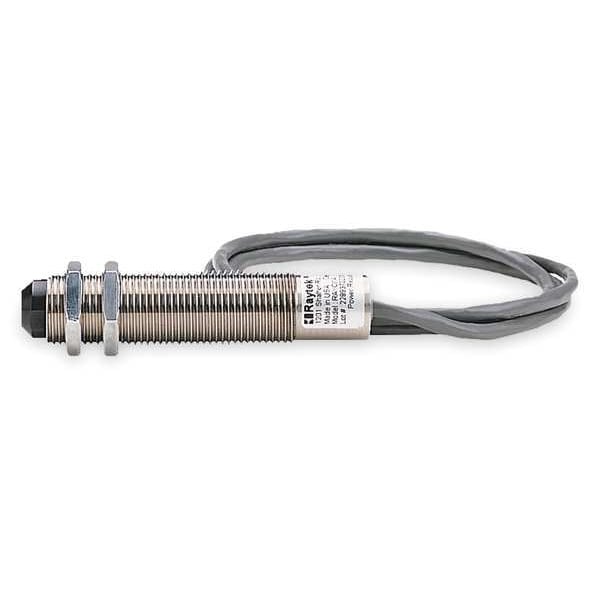

Fixed Mount IR Temp. Sensor, 32 to 240F

product price: $444.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Environmental Applications IP 65 (NEMA-4)
  • Sensor Length 3.5 in
  • Repeatability +/-1% of Measured Value or +/-1 Degrees C (Whichever is Greater)
  • Includes (2) Mounting Nuts, 1 m of Cable, Infrared Temperature Sensor
See all product information

Product Information

Dimensions

Sensor Length 3.5 in
Manufacturers Warranty Length 2 yr
Dia. 0.75 in
Sensor Spot Size and Distance 1.00 in @ 4 in
Thread Size 3/4"-16
Sensor Cable Length 10 ft
Manufacturer Warranty Length 2 yr
Cable Length 3.28 ft

Details

Promotion Restriction Not eligible for promotion
Item Fixed Mount Infrared Temperature Sensor
Environmental Applications IP 65 (NEMA-4)
Repeatability +/-1% of Measured Value or +/-1 Degrees C (Whichever is Greater)
Includes (2) Mounting Nuts, 1 m of Cable, Infrared Temperature Sensor
Loop Resistance 50 kiloohm
Sensor Measurement Temp. Range 32 Degrees to 662 Degrees F
Sensor Emissivity 0.95
Sensor Output Type J Thermocouple
Ambient Temp. Range 32 Degrees to 160 Degrees F
Response Time 350 msec
Impedance 50 ohm
Sensor Accuracy +/-2.0%
Sensor Power Source 12 to 24V DC
Sensor Item Fixed Mount Infrared Temperature Sensor
Spectral Response 8 to 14um
Sensor Current Rating 20 mA
Sensor Measurement Temp. Range` 32 Degrees to 240 Degrees F
Standards ISO 9001
Maximum Operating Temperature Degrees F 662 Degrees F
Maximum Temperature Measured Degrees F 662 Degrees F
Minimum Temperature Measured Degrees F 32 Degrees F
Input Voltage 24V DC
Accuracy Degrees F +/-2.0%
Thread Type UNF 2A
Minimum Emissivity Setting 0.95
Emissivity Adjustability Fixed
Maximum Emissivity Setting 0.95
Distance To Spot Ratio 4:1
IP Rating IP65
NEMA Enclosure Rating 4

Description

Fixed Mount Infrared Temperature Sensor, Cable Length 3.28 ft, Distance To Spot Ratio 4:1, Emissivity Adjustability Fixed, IP Rating IP65, Thread Size 3/4 In.-16, Thread Type UNF 2A, Maximum Operating Temperature Degrees F 662 Degrees F, Minimum Emissivity Setting 0.95, Impedance 50 ohm, Maximum Emissivity Setting 0.95, Maximum Temperature Measured Degrees F 662 Degrees F, Minimum Temperature Measured Degrees F 32 Degrees F, NEMA Enclosure Rating 4
