Product Information
MFR #
RAYMID10LTCB15
Zoro #
G2732021
UPC #
095969314787
Country of Origin
Germany
Dimensions
Dia.
0.55 in
Housing Length
3.2 in
Thread Size
M12 x 1
Manufacturers Warranty Length
No Warranty (Service Available)
Housing Width
2.4 in
Sensor Length
1.1 in
Cable Length
49.21 ft.
Details
Item

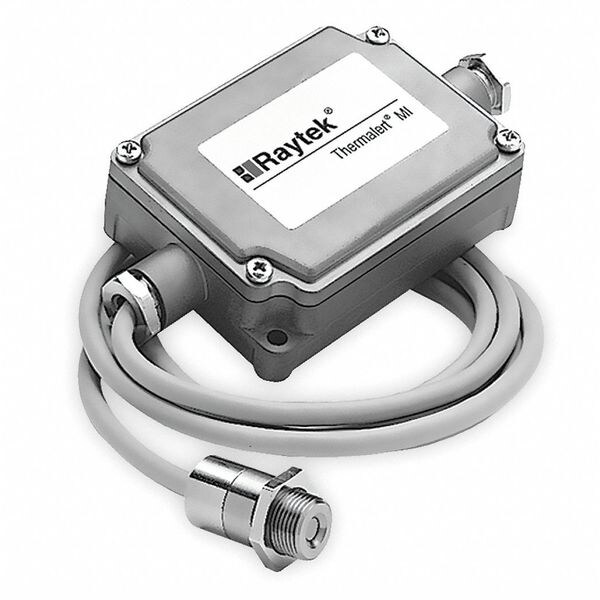

Fixed Mount Infrared Temperature Sensor
Environmental Applications
IP 65 (NEMA-4)
Loop Resistance
100 K Ohms On mV DC Output or 500 Ohms On mA DC Output With 24 V DC Power
Spectral Response
8 to 14um
Repeatability
+/-0.5% of Reading or +/-1 Degrees F, Whichever Is Greater
Response Time
150ms
Includes
Head Mounting Nut and Instructions
Ambient Temp. Range
32 Degrees To 160 Degrees F
Impedance
20 Ohms (On Thermocouple Output)
Description
Fixed Mount Infrared Temperature Sensor, Cable Length 49.21 ft., Thread Size M12 x 1, Impedance 20 Ohms (On Thermocouple Output), Repeatability +/-0.5 Percent of Reading or +/-1 Degrees F, Whichever Is Greater, Response Time 150ms, Includes Head Mounting Nut and Instructions, Loop Resistance 100 K Ohms On mV DC Output or 500 Ohms On mA DC Output With 24 V DC Power, Sensor Length 1.1 in
