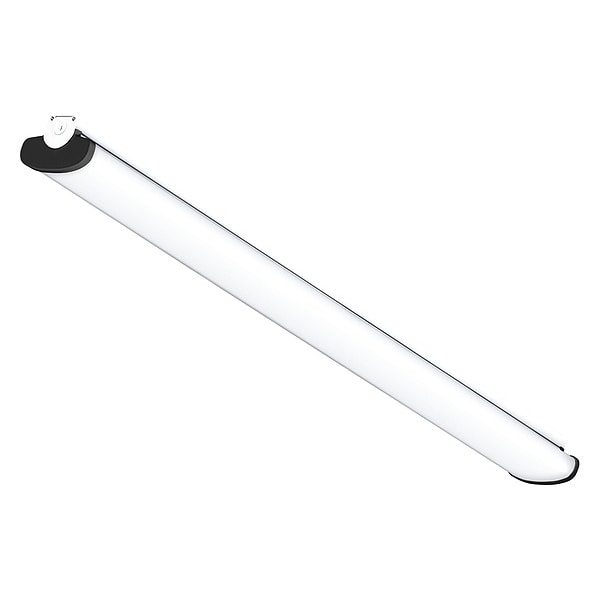

LED Linear Fixture, 4 ft L, 8880 lm, 74W

  • Mfr # SHL4B2432NU50

  • Zoro # G7719945

product price:  $201.99
/ea
Free Shipping & Returns

Key Features

Voltage
120/277V AC
Dimmable
Yes
Color Temperature
5000K
Fixture Warranty
5 yr
Item - Decorative and Surface Mount Fixtures
LED Surface Mount Fixture
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SHL4B2432NU50
Zoro #
G7719945
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Nominal Height
3 in
Nominal Width
5 5/16 in
Nominal Length
4 ft
Height
3"
Width
5-5/16"
Length
47-15/64"
Overall Width
5 3/8 in
Overall Length
47 1/2 in
Overall Height
3 in
Manufacturers Warranty Length
5 yr
Wire Rope Length
47 1/2 in

Details

Item
LED Linear Fixture
Voltage
120/277V AC
Dimmable
Yes
Color Temperature
5000K
Lumens
8,880 lm
Fixture Warranty
5 yr
Item - Decorative and Surface Mount Fixtures
LED Surface Mount Fixture
Emergency Battery Backup
No
Fixture Type - Decorative and Surface Mount Fixtures
Strip Light
Fixture Voltage
120/277
Max. Fixture Wattage
74 W
IP Rating
Not Rated
Color Temp.
5000K
Rated Life
50,000 hr
Standards
FCC, TAA, UL
Lamp Watts - Fixtures
74.0 W
Light Color
Daylight
Number of Light Bars
0
Fixture Temp. Range
14 Degrees to 104 Degrees F
Fixture Housing Material
Aluminum
Temp. Range
-10 Degrees to 40 Degrees C
Color Rendering Index
80
Fixture Housing Color
Black
Lumens Per Watt
120.0
Lighting Technology
LED
Linkable Up To
Unlinkable
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Listed
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Lighting Certification
DLC 5.0
Dimmable / Non-Dimmable
Dimmable
Warranty
5 yr
Fixture Rated Life
50,000 hr
Emergency Back Up Battery
No
LED Replacement For
(4) Lamp T8
Lumens per Watt
120 lm/W
Housing Material
Aluminum
Series
SHL
Linkable
No
Lens Type
Glare Reducing Diffuser
Bulb Included
Integrated LED
Ballast Start Type
No Ballast
Light Technology
LED
Mounting Style
Surface
For Bulb Type
Integrated LED
Beam Angle
180 Degrees
Sensor Type
Occupancy Sensor Compatible
Finish
Unfinished
Fixture Type
Strip Light
Fixture Ballast Type
No Ballast Required
Lens Shape
Architectural
Housing Color
Black
Ambient Temperature - Maximum
104 Degrees F
Maximum Fixture Wattage
74 W
Mounting Hardware Type
(6) Screws
Lumen Selectable
Not Selectable
Ballast Type
No Ballast Required
Light Output
8,880 lm
Dimming Method
0-10V
Color Selectable
Not Selectable

Description

4 ft, Lens Shape Architectural, 5000K, 8,880 lm, 120 lm/W, Max. Fixture Wattage 74 W, LED, Sensor Type Occupancy Sensor Compatible, Mounting Style Surface, Linkable No, For Bulb Type Integrated LED, LED Replacement For (4) Lamp T8, Bulb Included Integrated LED, Dimmable Yes, SHL
