  11. Sleeve Anchor, 100 PK
This item is Discontinued.

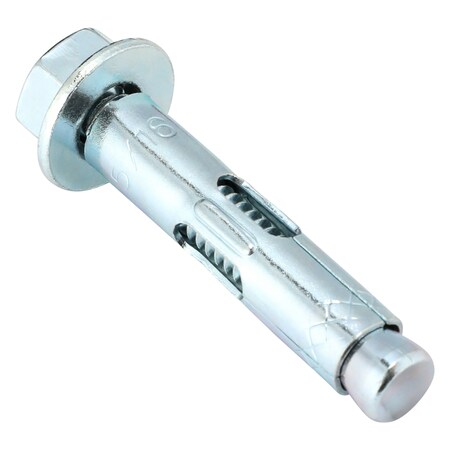

Red Head Sleeve Anchor, 100 PK HN-1614

Sleeve Anchor, 100 PK (Discontinued)

  • Mfr # HN-1614
  • Zoro # G2369193
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HN-1614
Zoro #
G2369193
UPC #
662520021394
Country of Origin
China

Dimensions

Anchor Diameter
5/16 in
Overall Length
1 1/2 in
Drill Bit Size
5/16 in
Thread Size
1/4"-20
Maximum Material Thickness
1/4 in
Minimum Installation Depth
2 in
Anchor Length
1 1/2 in
Max. Work Thickness
1/4 in
Anchor Dia.
5/16 in

Details

Item
Sleeve Anchor
Compatible Material
Brick
Finish
Zinc Plated
Head Type
Hex
Drive Type
External Hex
ICC Approved for Cracked Concrete
No
Ultimate Shear Strength (4,000 psi Concrete)
2,400 lb
Ultimate Tension Strength (4,000 psi Concrete)
2,600 lb
ICC Approved for Un-Cracked Concrete
Yes
Industry Standards
Factory Mutual, GSA A-A-1922A (Formerly GSA: FF-S-325 Group II, Type 3, Class 3)
Expansion Anchor Head Style
Hex Nut
Material
Steel
Ultimate Tension in 4000 PSI Concrete (Lb.)
2,600 lb
Ultimate Shear in 4000 PSI Concrete (Lb.)
2,400 lb
Head Style
Hex Nut
Min. Embedment
1 1/4 in
Meets/Exceeds
A-A-1923A
Fastener Finish
Zinc Plated
Anchor Material
Steel
Minimum Ultimate Tension Strength
1,400 lb
Maximum Ultimate Tension Strength
2,600 lb
System of Measurement
Inch
Minimum Installation Torque
8 ft-lb
Series
Dynabolt
Material Quality Standards
ASTM E488
Maximum Ultimate Shear Strength
2,400 lb
Maximum Installation Torque
8 ft-lb
Minimum Ultimate Shear Strength
2,040 lb

Description

Sleeve Anchor, System of Measurement Inch, Anchor Diameter 5/16 in, Overall Length 1 1/2 in, Thread Size 1/4 In.-20, Drive Type External Hex, Head Type Hex, Material Steel, Finish Zinc Plated, Drill Bit Size 5/16 in, Compatible Material Brick, Minimum Installation Torque 8 ft-lb, Maximum Installation Torque 8 ft-lb, Minimum Installation Depth 2 in, Maximum Material Thickness 1/4 in, Maximum Ultimate Shear Strength 2,400 lb, Maximum Ultimate Tension Strength 2,600 lb
