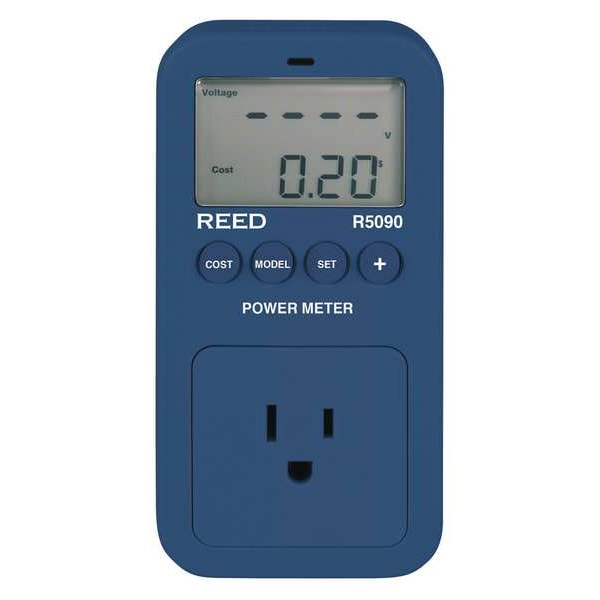

Reed Instruments Digital Power Meter 100 to 150VAC R5090 - main

Digital Power Meter 100 to 150VAC

  • Mfr # R5090

  • Zoro # G8475951

product price: $51.99
/ea

Key Features

Sampling Rate
1 sec
Phase
1
Includes
Battery
Max. Watts
2,000 W
Kit Current Capability
15 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R5090
Zoro #
G8475951
UPC #
-
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Manufacturer Warranty Length
1 yr

Details

Item
Power Meter
Sampling Rate
1 sec
Phase
1
Includes
Battery
Max. Watts
2,000 W
Kit Current Capability
15 A
Display
LCD
Voltage Accuracy
+/-1%
AC Response
Average
Safety Rating
ETL, UL STD 61010-1, 61010-2-030, CSA STD C22.2 No. 61010-1, 61010-2-030
Voltage Channels
1
Storage
256 MB
Peak Capture
No
Max. AC Amps
10 A
Power Factor
0 to 1
Current Accuracy
+/-1.00%
Current Channels
1
Max. AC Voltage
120
Data Logging
Yes
Calibration Certificate
NIST
Features
Built-In Battery Backup, Calculates Operating Costs of Household Appliances
Standards
CSA, UL
Power Source
Battery
Digital Memory Capacity
256 MB
CAT Safety Rating
CAT II 150V
Display Type
Digital
Maximum Wattage Measured
2,000 W
Display Screen Type
LCD
Maximum AC Voltage Measured
120 V
Tester Type
Power Tool Tester
Data Logger
Yes
High Voltage Test
150 V AC
Maximum Current Measured
10 A
Operating Voltage
100 to 150V AC
Testing Functions
Voltage, Current, Watts, Frequency and Power Factor
Includes Batteries
Yes
For Phase
Single
AC Magnitude Calculation
Average
Minimum Current Measured
0 A

Description

Power Meter, AC Magnitude Calculation Average, CAT Safety Rating CAT II 150V, Data Logger Yes, Display Type Digital, For Phase Single, High Voltage Test 150 V AC, Insulation Resistance Test Voltage Not Applicable, Leakage Current Measured Not Applicable, Maximum AC Voltage Measured 120 V, Maximum Current Measured 10 A, Maximum Resistance Measured Not Applicable, Maximum Wattage Measured 2,000 W, Minimum Current Measured 0 A, Minimum Resistance Measured Not Applicable
