  5. Infrared Thermometer, Adjustable 0.10 to 1.00, -26 Degrees to 1,472 Degrees F F, Backlit

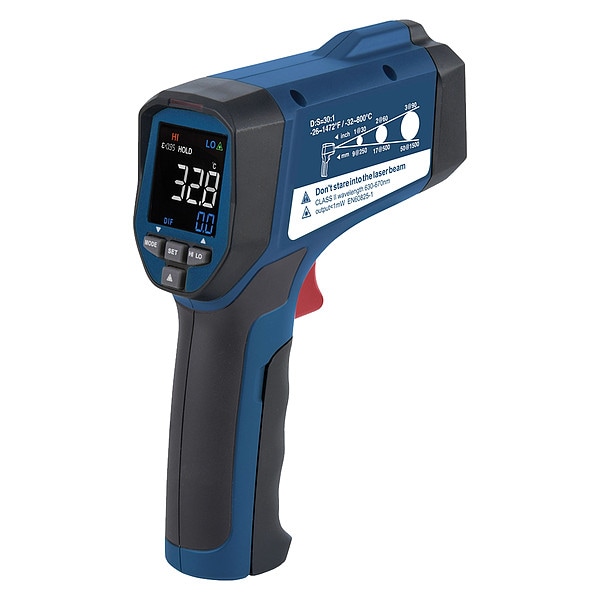

Reed Instruments Infrared Thermometer, Adjustable 0.10 to 1.00, -26 Degrees to 1,472 Degrees F F, Backlit R2320 - main

Infrared Thermometer, Adjustable 0.10 to 1.00, -26 Degrees to 1,472 Degrees F F, Backlit

  • Mfr # R2320

  • Zoro # G7283797

product price:  $189.99
/ea
Free Shipping & Returns

Key Features

Temp. Range (F) - Infrared
-26 Degrees to 1,472 Degrees F
Emissivity
Adjustable 0.10 to 1.00
Temp. Accuracy (F) - Infrared
+/-1.8% of Reading or +/-3.6 Degrees F Whichever is Greater (Basic); +/-1.8% of Reading or +/-3.6 Degrees F Whichever is Greater (Above 32 Degrees F); +/-3.6 Degrees F +0.1 Degrees F (Below 32 Degrees F)
Temp. Accuracy (C) - Infrared
+/-1.8% of Reading or +/-1.8 Degrees C Whichever is Greater (Basic); +/-1.8% of Reading or +/-1.8 Degrees C Whichever is Greater (Detailed Above 0 Degrees C); +/-1.8 Degrees C +0.1 Degrees C (Below 0 Degrees C)
Display - IR Camera
Backlit
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R2320
Zoro #
G7283797
UPC #
-
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
9V
Manufacturer Warranty Length
1 yr

Details

Item
Infrared Thermometer
Temp. Range (F) - Infrared
-26 Degrees to 1,472 Degrees F
Emissivity
Adjustable 0.10 to 1.00
Temp. Accuracy (F) - Infrared
+/-1.8% of Reading or +/-3.6 Degrees F Whichever is Greater (Basic); +/-1.8% of Reading or +/-3.6 Degrees F Whichever is Greater (Above 32 Degrees F); +/-3.6 Degrees F +0.1 Degrees F (Below 32 Degrees F)
Temp. Accuracy (C) - Infrared
+/-1.8% of Reading or +/-1.8 Degrees C Whichever is Greater (Basic); +/-1.8% of Reading or +/-1.8 Degrees C Whichever is Greater (Detailed Above 0 Degrees C); +/-1.8 Degrees C +0.1 Degrees C (Below 0 Degrees C)
Display - IR Camera
Backlit
Alarm
High/Low
Auto Power Off
Yes
Temp. Range (C) - Infrared
-32 Degrees to 800 Degrees C
Resolution
0.1 Degrees F/0.1 Degrees C
Trigger
Lockable
Features
Electrical and HVAC/R Professionals, Precise Infrared Sensor Allows for More Accurate and Repeatable Measurements to Meet the Needs of Industrial
Operating Temp. Range
32 Degrees to 122 Degrees F
Standards
CE, Class II Laser, RoHS
Includes
Carrying Case
Response Time
250 msec
Item - Infrared Thermometer
Infrared Thermometer
Spectral Response - Infrared
8.0 to 14.0 um
Battery Type
9V
Memory - Instrument
Avg, Dif, Max, Min
Power Source
Battery Operated Only
Batteries Included
Yes
Temperature Alerts
High Temperature, Low Temperature
Resolution Degrees F
0.1 Degrees F
Mounting Style
Tripod
Maximum Temperature Measured Degrees F
1,472 Degrees F
Resolution Degrees C
0.1 Degrees C
Minimum Emissivity Setting
0.10
Digital Display Screen Type
LCD with Backlight
Intrinsic Safety
Not Specified Intrinsically Safe
Emissivity Adjustability
Adjustable
Battery Run Time
10 hr
Minimum Operating Temperature Degrees F
32 Degrees F
Laser Sighting Type
Single Dot
Includes Work Light
No Work Light Included
Maximum Operating Temperature Degrees F
122 Degrees F
Battery Voltage
9V
Accuracy Degrees F
+/-1.8% of Reading or +/-3.6 Degrees Whichever is Greater (Above 32.0 Degrees ); +/-1.8% of Reading or +/-3.6 Degrees Whichever is Greater (Basic); +/-3.6 Degrees +/0.1 Degrees (Below 32.0 Degrees )
Alert Type
Light, Sound
Secondary Measuring Method
No Secondary Measuring Method
Maximum Emissivity Setting
1.00
Minimum Temperature Measured Degrees C
-32 Degrees C
Accuracy Degrees C
+/-1.8% of Reading or +/-1.8 Degrees Whichever is Greater (Basic); +/-1.8% of Reading or +/-1.8 Degrees Whichever is Greater (Detailed Above 0 Degrees ); +/-1.8 Degrees +/0.1 Degrees (Below 0 Degrees )
Minimum Temperature Measured Degrees F
-26 Degrees F
Maximum Temperature Measured Degrees C
800 Degrees C
Number of Batteries Required
1
Body Style
Full Size
Distance To Spot Ratio
30:1
Testing Functions
Average, Difference, Maximum Temperature, Minimum Temperature

Description

Infrared Thermometer, Laser Sighting Type Single Dot, Secondary Measuring Method No Secondary Measuring Method, Emissivity Adjustability Adjustable, Distance To Spot Ratio 30:1, Alert Type Light, Sound, Field of View Not Applicable, Minimum Emissivity Setting 0.10, Maximum Emissivity Setting 1.00, Minimum Temperature Measured Degrees F -26 Degrees F, Maximum Temperature Measured Degrees F 1,472 Degrees F, Minimum Operating Temperature Degrees F 32 Degrees F
