  9. Multimeter, TRMS, 1000V AC/DC, Temp, 1,000 V Max DC, 0 V Max AC, TRMS, 50,000 Instrument Counts

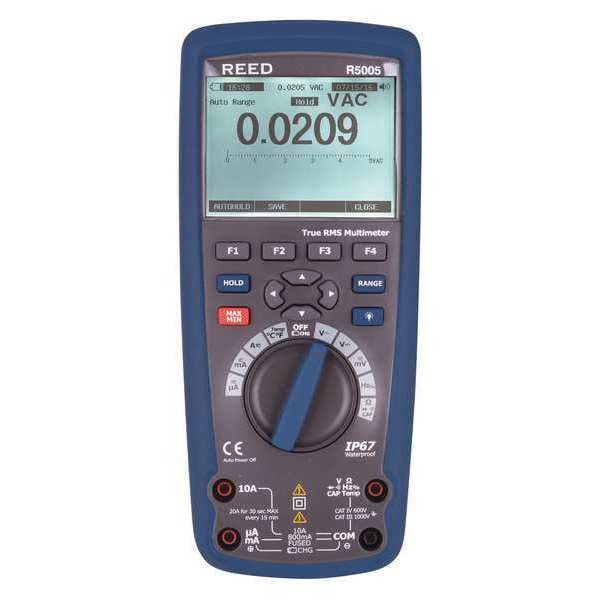

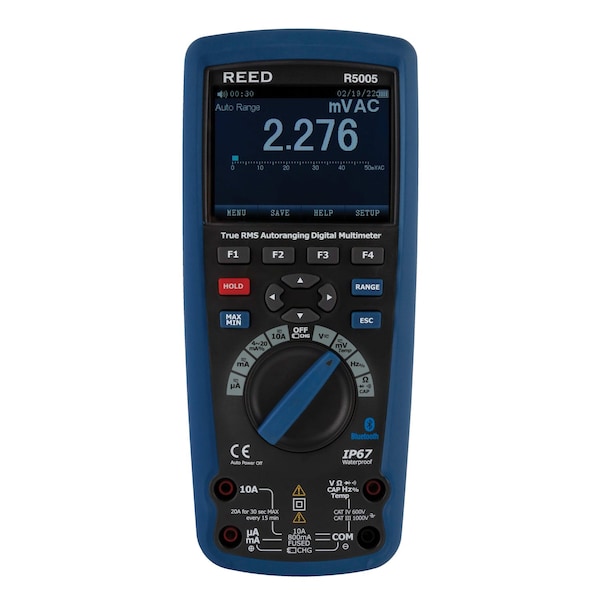

Reed Instruments Multimeter, TRMS, 1000V AC/DC, Temp, 1,000 V Max DC, 0 V Max AC, TRMS, 50,000 Instrument Counts R5005 - main

Multimeter, TRMS, 1000V AC/DC, Temp, 1,000 V Max DC, 0 V Max AC, TRMS, 50,000 Instrument Counts

  • Mfr # R5005

  • Zoro # G0644380

product price: $445.50
/ea
Free Shipping & Returns

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
50,000
Includes
AC Adapter, Li-ion Battery, Software, Test Leads, Thermocouple Adapter, TRMS Bluetooth/Waterproof Industrial Multimeter, Type K Thermocouple Wire Probe, Weatherproof Plugs
Standards
CAT IV 600V, CE, IP67
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R5005
Zoro #
G0644380
UPC #
-
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr

Details

Item
Multimeter,TRMS,1000V AC/DC,Temp
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
50,000
Includes
AC Adapter, Li-ion Battery, Software, Test Leads, Thermocouple Adapter, TRMS Bluetooth/Waterproof Industrial Multimeter, Type K Thermocouple Wire Probe, Weatherproof Plugs
Standards
CAT IV 600V, CE, IP67
Auto Power Off
Yes
Data Logging
Yes
Audible Continuity
Yes
Diode Test
Yes
Peak Hold
Yes
Calibration Certificate Included
No
Instrument Safety Rating
CAT III 1000V, CAT IV 600V
Auto Ranging
Yes
Duty Cycle
Yes
Basic AC Voltage Accuracy
+/-0.5%
Maximum Resistance Measurement
50 megaohm
Maximum Storage Temperature
140 Degrees F
Maximum Frequency Measurement
10 MHz
Temperature Measurement Accuracy
+/-1%
Frequency Measurement Accuracy
0.01 %
Minimum Operating Temperature
32 Degrees F
Weight
631 g
Minimum DC Current Measurement
0 mA
Maximum DC Current Measurement
10 A
Multiple On-Screen Displays
Yes
Min-Max-Avg Button Included
Yes
Capacitance Measurement Accuracy
5 %
Software Included
Yes
Battery Voltage
7.5V DC
Computer Interface Connection Type
Bluetooth
Fuse Access
Yes
Bar Graph Included
Yes
Resistance Measurement Accuracy
+/-2%
Maximum Temperature Measurement
1,832 Degrees F
Battery Chemistry
Lithium
Minimum Temperature Measurement
-58 Degrees F
Maximum DC Voltage Measurement
1,000 V
Basic AC Current Accuracy
+/-0.3%
Battery Access
Yes
Maximum Operating Temperature
122 Degrees F
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
AC Response Calculation
TRMS
Basic DC Current Accuracy
+/-0.3%
Basic DC Voltage Accuracy
+/-0.50% of Reading +20 Digits; +/-0.025% of Reading +5 Digits; +/-0.1% of Reading +5 Digits
Elapse Time Clock
Yes
Minimum AC Current Measurement
0 uA
Minimum DC Voltage Measurement
0 V
Time of Day Clock
Yes
Minimum AC Voltage Measurement
0 V
Minimum Storage Temperature
-4 Degrees F
Maximum AC Current Measurement
10 A
Maximum AC Voltage Measurement
1,000 V
Maximum Capacitance Measurement
10 mF

Description

Multimeter,TRMS,1000V AC/DC,Temp, Audible Continuity Yes, Basic AC Voltage Accuracy +/-0.5 Percent, Basic DC Voltage Accuracy +/-0.50 Percent of Reading +20 Digits; +/-0.025 Percent of Reading +5 Digits; +/-0.1 Percent of Reading +5 Digits, Data Hold Yes, Basic DC Current Accuracy +/-0.3 Percent, Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 50,000
