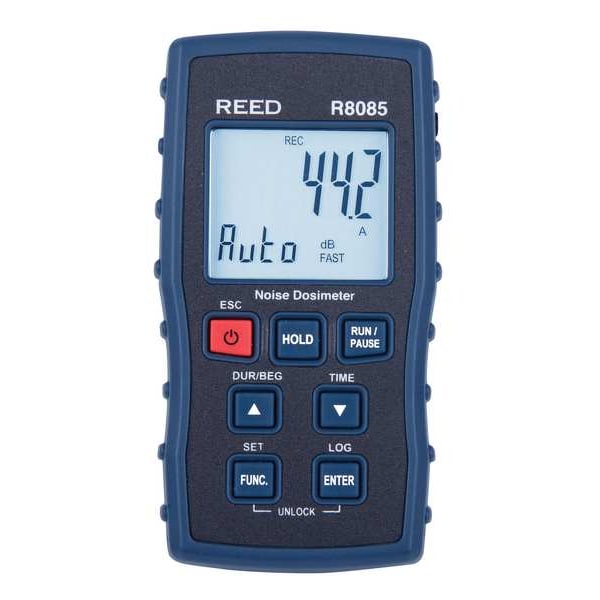

Reed Instruments Noise Dosimeter R8085 - main

Noise Dosimeter

  • Mfr # R8085

  • Zoro # G401866219

product price: $546.99
/ea
Free Shipping & Returns

Key Features

Includes
Carrying Case, Dosimeter, Microphone, Wrist Strap
Response Time
Fast, Slow
Frequency Weighting
A, C
Accuracy
+/-3.0 dB; +/-2.0 dB; +/-1.5 dB; +/-1.0 dB; +/-5.0 dB
Standards
ANSI S1.25, CE, IEC 61672 Class 2/ANSI S1.4 Type S, IEC61252
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R8085
Zoro #
G401866219
UPC #
800837005281
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Microphone Size
1/2 in
Manufacturer Warranty Length
1 yr
Battery Size
AAA

Details

Item
Noise Dosimeter
Includes
Carrying Case, Dosimeter, Microphone, Wrist Strap
Response Time
Fast, Slow
Frequency Weighting
A, C
Accuracy
+/-3.0 dB; +/-2.0 dB; +/-1.5 dB; +/-1.0 dB; +/-5.0 dB
Standards
ANSI S1.25, CE, IEC 61672 Class 2/ANSI S1.4 Type S, IEC61252
Output Jack
RS-232, USB, Yes
dB Range
35 to 130 dB
Counts
16,000
Microphone Type
Electret Condenser
Frequency Range
31.5 Hz to 8 kHz
Interface
USB
Battery Type
(3) AAA
Calibration Certificate
No
Records Up To
16000 Data Points
Criteria Levels
80 dB, 84 dB, 85 dB & 90 dB
Resolution
0.1 dB
Built-In
Data Logger; Data Points; Microphone and Real Time Clock
Display
4 Digit LCD
Type
Noise dosimeter, sound level meter and data logger. High accuracy of +/-1.0dB meets Type 2 standards. Designed to meet noise survey requirements for compliance with OSHA and CCOHS regulations
Threshold Level
70 to 90 dB
Operating Temp. Range
32 Degrees to 122 Degrees F
Product Type
Noise Dosimeter
Digital Display Screen Type
LCD with Backlight
Maximum Sound Level Measurement
130 dB
Sound Level Measurement Accuracy
+/-1 dB; +/-1.5 dB; +/-2 dB; +/-3 dB; +/-5 dB
Range Type
Auto, Manual
Includes Software
Software Included
Minimum Operating Temperature
32 Degrees F
Minimum Frequency Measurement
31.5 Hz
Maximum Operating Temperature
122 Degrees F
Sound Level Measurement Resolution
0.1 dB
Batteries Included
Yes
Battery Voltage
1.5V
Minimum Sound Level Measurement
35 dB
Number of Records Stored
16,000
Output Type
RS-232, USB
Maximum Frequency Measurement
8 kHz
Number of Digits
4
Number of Batteries Required
3

Description

Noise Dosimeter, Includes Carrying Case, Dosimeter, Microphone, Wrist Strap, Digital Display Screen Type LCD with Backlight, Frequency Weighting A, C, Maximum Frequency Measurement 8 kHz, Maximum Sound Level Measurement 130 dB, Minimum Frequency Measurement 31.5 Hz, Minimum Sound Level Measurement 35 dB, Number of Records Stored 16,000, Sound Level Measurement Accuracy +/-1 dB; +/-1.5 dB; +/-2 dB; +/-3 dB; +/-5 dB, Sound Level Measurement Resolution 0.1 dB, Interface USB
