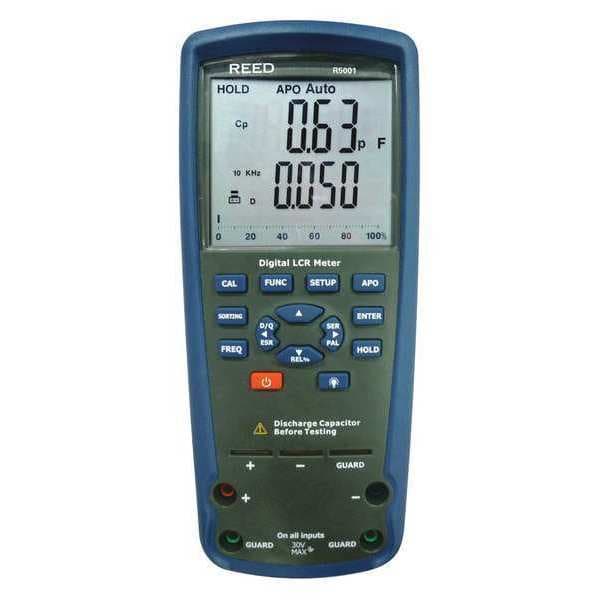

Passive Component LCR Meter, +/-0.2% Accuracy

  • Mfr # R5001
  • Zoro # G0644347
product price:
$
269.10
/ea
Free Shipping & Returns

Key Features

Inductance Range
20 to 2000 micron H, 20 to 2000 mH, 20 to 2000 H
Inductance Accuracy
+/-1.5% + 15 Digits
Capacitance Range
0 to 2000 pF, 20 to 2000 nF, 20 to 2000 micron F
Capacitance Accuracy
+/-1% + 10 Digits
Resistance Range (Ohms)
20 to 2000 ohm, 20 to 2000 kiloohm, 20 to 2000 Megaohm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
R5001
Zoro #
G0644347
UPC #
-
Country of Origin
China
Item
LCR Meter
Inductance Range
20 to 2000 micron H, 20 to 2000 mH, 20 to 2000 H
Inductance Accuracy
+/-1.5% + 15 Digits
Capacitance Range
0 to 2000 pF, 20 to 2000 nF, 20 to 2000 micron F
Capacitance Accuracy
+/-1% + 10 Digits
Resistance Range (Ohms)
20 to 2000 ohm, 20 to 2000 kiloohm, 20 to 2000 Megaohm
Includes
Alligator Clips, Test Leads, Test Probe, Tweezers
Battery Type
(6) AA
Resistance Accuracy
+/-1.5% +5 Digits
Audible Continuity
No
Test Frequencies
10 kHz
Auto Power Off
Yes
Product Type
LCR Meter
Battery Voltage
1.5 V
Inductance Measurement - Maximum
2,000 H
Digital Display Screen Type
LCD
Capacitance Measurement - Maximum
2,000 uF
Number of Batteries Required
6
Standards
CE
Inductance Measurement - Minimum
20 uH
Resistance Measurement - Minimum
200 ohm
Calibration Certificate Type
Traceable with data
Primary Display Counts
20,000
Includes Batteries
Batteries Included
Resistance Measurement - Maximum
200 megaohm
Capacitance Measurement - Minimum
2,000 pF
Instrument Style
Handheld
Calibration Certificate Included
Traceable with Data

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
AA

Description

LCR Meter, Inductance Range 20 to 2000 micron H, 20 to 2000 mH, 20 to 2000 H, Inductance Accuracy +/-1.5 Percent + 15 Digits, Capacitance Range 0 to 2000 pF, 20 to 2000 nF, 20 to 2000 micron F, Capacitance Accuracy +/-1 Percent + 10 Digits, Resistance Range (Ohms) 20 to 2000 ohm, 20 to 2000 kiloohm, 20 to 2000 Megaohm, Resistance Accuracy +/-1.5 Percent +5 Digits, Test Frequencies 10 kHz, Auto Power Off Yes, Audible Continuity No, Battery Type (6) AA
