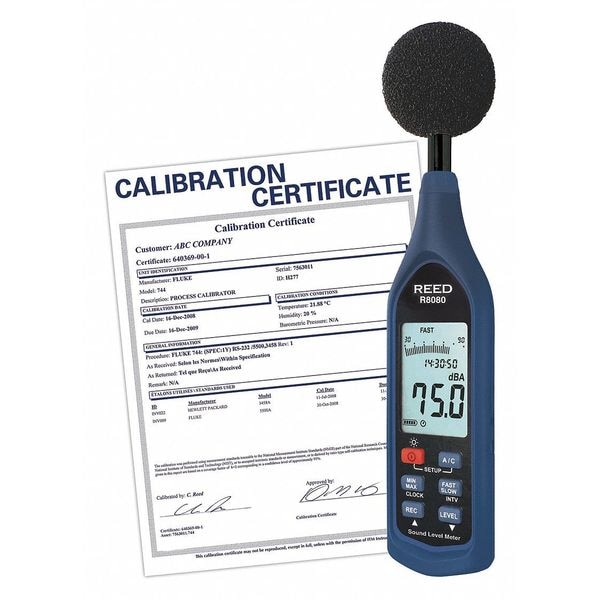

Reed Instruments Sound Level Meter, Datalogger w/NIST R8080-NIST - main

Sound Level Meter, Datalogger w/NIST

  • Mfr # R8080-NIST

  • Zoro # G6218051

product price: $627.99
/ea
Free Shipping & Returns

Key Features

Includes
Batteries, Hard Carrying Case, PC Software, Sound Level Meter/Datalogger, Traceable Certificate with full Data and Uncertainties, USB Cable, Windshield Ball
Response Time
Fast, Slow
Frequency Weighting
A, C
Accuracy
+/-1.4dB
Standards
ANSI S1.4-1983, CE,Type 2, IEC 61672-1 Class 2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R8080-NIST
Zoro #
G6218051
UPC #
800837003874
Country of Origin
Taiwan, Province of China

Dimensions

Microphone Size
1/2 in
Manufacturers Warranty Length
1 yr
Manufacturer Warranty Length
1 yr
Battery Size
AAA

Details

Item
Sound Level Meter
Includes
Batteries, Hard Carrying Case, PC Software, Sound Level Meter/Datalogger, Traceable Certificate with full Data and Uncertainties, USB Cable, Windshield Ball
Response Time
Fast, Slow
Frequency Weighting
A, C
Accuracy
+/-1.4dB
Standards
ANSI S1.4-1983, CE,Type 2, IEC 61672-1 Class 2
Microphone Type
Electret Condenser
Records Up To
64,000 Data Points
Built-In
Data Logger; Calibration; Data Points; Microphone and Real Time Clock
Type
Digital; Datalogging; Type 2; Alarm; Backlit Display with NIST
Output Jack
AC/DC Output, USB
Battery Type
(4) AAA Batteries
Frequency Range
20 Hz to 8 kHz
Calibration Certificate
NIST
Display
4 Digit LCD
Counts
64,000
dB Range
30 to 130dB; Low: 30 to 90dB; Med: 50 to 110dB; High: 70 to 130dB; Full: 30 to 130dB
Interface
USB
Resolution
0.1 dB
Features
Bar Graph Display
Operating Temp. Range
32 to 104 Degrees F (0 to 40 Degrees C)
Output Type
AC Analog, DC Analog
Sound Level Measurement Resolution
0.1 dB
Digital Display Screen Type
LCD
Number of Batteries Required
4
Number of Digits
4
Minimum Frequency Measurement
20 Hz
Includes Software
Software Included
Product Type
Sound Level Meter
Maximum Sound Level Measurement
130 dB
Maximum Frequency Measurement
8 kHz
Range Type
Manual
Battery Run Time
50 hr
Battery Voltage
1.5V
Calibration Certificate Type
Traceable with data
Maximum Operating Temperature
104 Degrees F
Batteries Included
Yes
Sound Level Measurement Accuracy
+/-1.4 dB
Minimum Sound Level Measurement
30 dB
Minimum Operating Temperature
32 Degrees F
Number of Records Stored
64,000

Description

Sound Level Meter, Includes Batteries, Hard Carrying Case, PC Software, Sound Level Meter/Datalogger, Traceable Certificate with full Data and Uncertainties, USB Cable, Windshield Ball, Digital Display Screen Type LCD, Frequency Weighting A, C, Maximum Frequency Measurement 8 kHz, Maximum Sound Level Measurement 130 dB, Minimum Frequency Measurement 20 Hz, Minimum Sound Level Measurement 30 dB, Number of Records Stored 64,000, Sound Level Measurement Accuracy +/-1.4 dB
