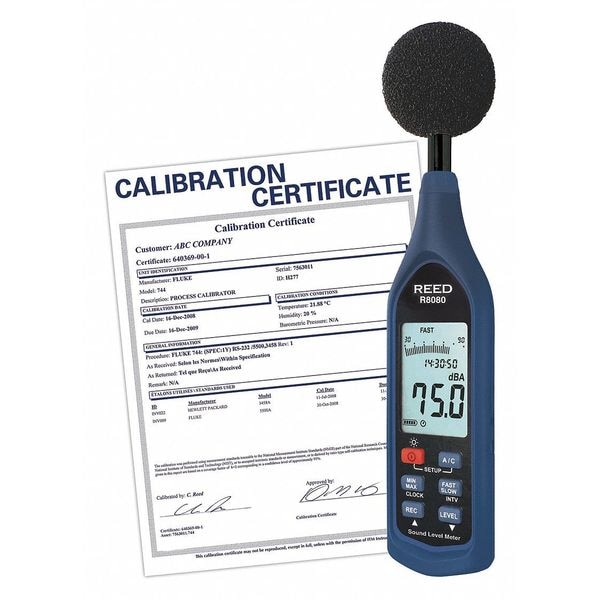

Sound Level Meter, Datalogger w/NIST

product price: $633.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Digital; Datalogging; Type 2; Alarm; Backlit Display with NIST
  • dB Range 30 to 130dB; Low: 30 to 90dB; Med: 50 to 110dB; High: 70 to 130dB; Full: 30 to 130dB
  • Frequency Range 20 Hz to 8 kHz
  • Frequency Weighting A, C
  • Accuracy +/-1.4dB
See all product information

Product Information

Dimensions

Microphone Size 1/2 in
Manufacturers Warranty Length 1 yr
Manufacturer Warranty Length 1 yr
Battery Size AAA

Details

Item Sound Level Meter
Type Digital; Datalogging; Type 2; Alarm; Backlit Display with NIST
dB Range 30 to 130dB; Low: 30 to 90dB; Med: 50 to 110dB; High: 70 to 130dB; Full: 30 to 130dB
Frequency Range 20 Hz to 8 kHz
Frequency Weighting A, C
Accuracy +/-1.4dB
Features Bar Graph Display
Microphone Type Electret Condenser
Standards ANSI S1.4-1983, CE, IEC 61672-1 Class 2
Records Up To 64,000 Data Points
Built-In Data Logger; Calibration; Data Points; Microphone and Real Time Clock
Output Jack AC/DC Output, USB
Battery Type (4) AAA Batteries
Calibration Certificate NIST
Display 4 Digit LCD
Counts 64,000
Includes Data Logger, Sound Level Calibrator, Hard Carrying Case, Windshield Ball
Interface USB
Resolution 0.1 dB
Response Time Fast, Slow
Operating Temp. Range 32 to 104 Degrees F (0 to 40 Degrees C)
Output Type AC Analog, DC Analog
Sound Level Measurement Resolution 0.1 dB
Digital Display Screen Type LCD
Number of Batteries Required 4
Number of Digits 4
Minimum Frequency Measurement 20 Hz
Includes Software Software Included
Product Type Sound Level Meter
Maximum Sound Level Measurement 130 dB
Maximum Frequency Measurement 8 kHz
Range Type Manual
Battery Run Time 50 hr
Battery Voltage 1.5V
Calibration Certificate Type NIST
Maximum Operating Temperature 104 Degrees F
Batteries Included Yes
Sound Level Measurement Accuracy +/-1.4 dB
Minimum Sound Level Measurement 30 dB
Minimum Operating Temperature 32 Degrees F
Number of Records Stored 64,000

Description

Sound Level Meter, Includes Data Logger, Sound Level Calibrator, Hard Carrying Case, Windshield Ball, Digital Display Screen Type LCD, Frequency Weighting A, C, Maximum Frequency Measurement 8 kHz, Maximum Sound Level Measurement 130 dB, Minimum Frequency Measurement 20 Hz, Minimum Sound Level Measurement 30 dB, Number of Records Stored 64,000, Sound Level Measurement Accuracy +/-1.4 dB, Sound Level Measurement Resolution 0.1 dB, Interface USB, Features Bar Graph Display
