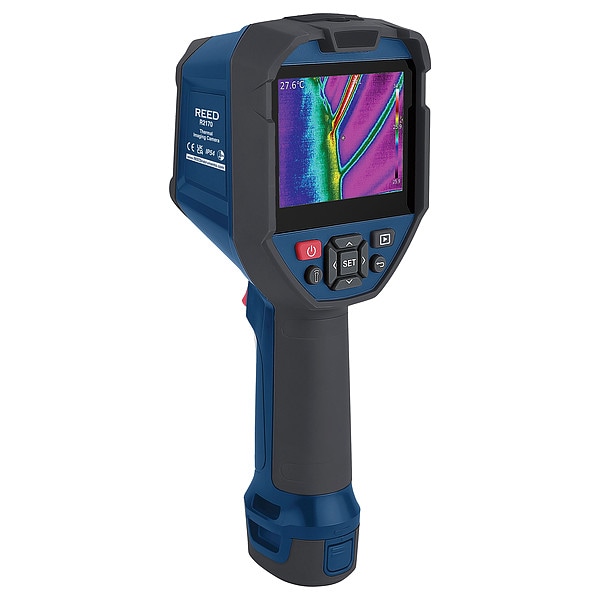

Thermal ImageR, 65 mK, 640 x 480 Display, 56 Degrees x 42 Degrees

  • Mfr # R2170-NIST

  • Zoro # G710866078


product price: $1,759.50
/ea
Free Shipping & Returns

Key Features

Field of View
56 Degrees x 42 Degrees
Features
3 Image Modes
Thermal Sensitivity
65 mK
Focus Method
Fixed
Display Resolution
640 x 480
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R2170-NIST
Zoro #
G710866078
UPC #
800837006356
Country of Origin
China

Dimensions

Display Size
3.5 in
Manufacturer Warranty Length
2 yr

Details

Item
Thermal ImageR
Field of View
56 Degrees x 42 Degrees
Features
3 Image Modes
Thermal Sensitivity
65 mK
Focus Method
Fixed
Display Resolution
640 x 480
File Formats
JPEG
Removable Memory Card
32GB MicroSD
Includes
32GB Micro SD Card, Hard Carrying Case, Power Adapter, USB (Type-C) Cable
Standards
6.6 ft (2m) Drop Test, CE, IP54, UKCA
Lens Angles Included
56 Degrees
Maximum Temperature Measured Degrees F
752 Degrees F
Minimum Temperature Measured Degrees F
-40 Degrees F
Auto Power Off
Yes
Batteries Included
Yes
Data Transfer Type
Wired
Alert Type
Light
Temperature Alerts
High Temperature, Low Temperature
Minimum Emissivity Setting
0.01
Maximum Temperature Measured Degrees C
400 Degrees C
Maximum Emissivity Setting
1.00
Maximum Operating Temperature Degrees F
122 Degrees F
Infrared Resolution
320 x 240
Accuracy Degrees C
+/-2.0% of Reading
Portability
Handheld
Calibration Certificate Type
NIST
Minimum Operating Temperature Degrees F
32 Degrees F
Battery Voltage
3.7V
Laser Sighting Type
No Laser Sighting
Minimum Temperature Measured Degrees C
-40 Degrees C
Interface
USB
Emissivity Adjustability
Adjustable
Minimum Focus Distance
0.01 ft
Digital Display Screen Type
TFT LCD
Accuracy Degrees F
+/-2.0% of Reading
Frame Rate
9 Hz
Battery Run Time
3.5 hr
Battery Chemistry
Lithium Ion
Intrinsic Safety
Not Specified Intrinsically Safe

Description

Thermal ImageR, Temperature Alerts High Temperature, Low Temperature, Frame Rate 9 Hz, Visual Light Resolution Not Applicable, Calibration Certificate Type NIST, Alert Type Light, Data Transfer Type Wired, Digital Display Screen Type TFT LCD, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.01, Thermal Sensitivity 65 mK, Minimum Focus Distance 0.01 ft, Minimum Operating Temperature Degrees F 32 Degrees F

Restrictions

Hazardous material
