Shop REELCRAFT

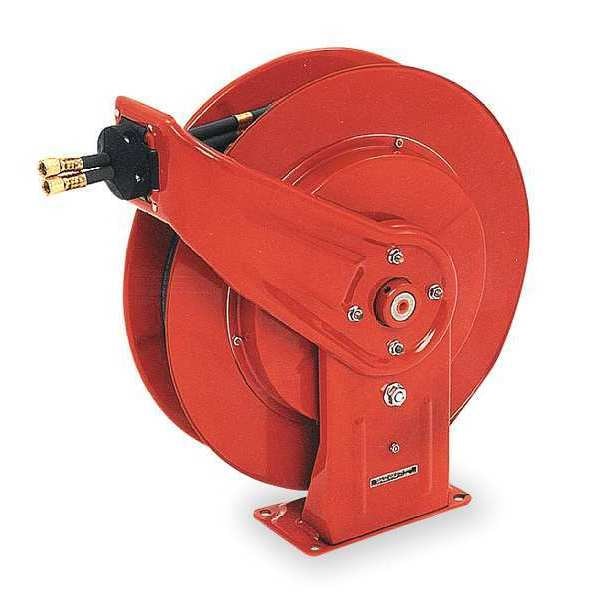

Dual Reel Spring Return Hose Reel, 3/8 in Hose Diameter, 50 ft Length, 2,000 psi Max. Pressure, Red

  • Mfr # TH86050 OMP

  • Zoro # G1929121

product price:  $1,682.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
2,000 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose, Hose Stop
Hose End Configuration
3/8 in MNPT x 3/8 in MNPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TH86050 OMP
Zoro #
G1929121
UPC #
699567010302
Country of Origin
United States

Dimensions

Hose Inside Dia.
3/8 in
Overall Height
25 3/8 in
Hose Length
50 ft
Overall Width
12 7/8 in
Overall Length
24 in
Reel Diameter
24 in
Hose Outside Dia.
0.71"
Reel Width
8 1/8 in
Mount Hole Diameter
1/2 in
Hose 1 Length
50 ft
Swivel Outlet Thread Size
3/8 in - 18
Hose 2 Fitting B Size
3/8 in
Mounting Hole Center to Center Height
10 in
Hose 2 Outside Diameter
5/8 in
Swivel Inlet Thread Size
3/8 in - 18
Swivel Inlet Size
3/8 in
Hose 1 Outside Diameter
5/8 in
Fitting Size
3/8 in x 3/8 in
Hose 2 Inside Diameter
3/8 in
Hose 2 Fitting A Size
3/8 in
Swivel Outlet Size
3/8 in
Hose 2 Length
50 ft
Hose 1 Inside Diameter
3/8 in
Hose 1 Fitting A Size
3/8 in
Mount Base Height
12 in
Overall Dimensions
24 in L x 12 7/8 in W x 25 3/8 in H
Mounting Hole Center to Center Width
6 in
Hose 1 Fitting B Size
3/8 in
Mount Base Width
7 3/8 in

Details

Item
Dual Reel Spring Return Hose Reel
Max. Pressure
2,000 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose, Hose Stop
Hose End Configuration
3/8 in MNPT x 3/8 in MNPT
Hose Material
SAE 100 R7 AT
Mounting
Bench and Truck, Ceiling, Floor, Wall
Reel Color
Red
Features
Compact Design For Critical Space Requirements, Constant Tension Positive Latching Spool Mechanism, Declutching Arbor Virtually Eliminates Possibility of Spring Damage Due to Reverse Winding, Long Life Drive Spring
Media - Hose Reels
Hydraulic Oil
Application
Cranes, Construction Equipment, Hydraulic Tools, Vehicle Extraction Tools, Aerial Device, Hydraulic Cylinders, Tree Cutters, Digger Derricks, Railroad Maintenance Tools
Swivel Material
Steel
Duty Rating
Heavy Duty
Finish - Hose Reels
Powder Coated
Latch
Locking
Bearings
Permanently Lubricated
Hose Outlet
3/8 in (M)NPT
Max. Temp.
210 Degrees F
Seal Type
Nitrile
Reel Inlet
3/8 in (F)NPT
Housing Material
Steel
Number of Conductors
0
Weight
99 lb
Hose 2 Fitting A Gender
Male
Hose 2 Cover Material
Polyurethane
Hose 1 Fitting B Material
Steel
Swivel Outlet Type
NPT
Number of Guide Arms
Double Arm
Maximum Operating Pressure
2,000 psi
Bearing Construction
Ball
Hose 2 Fitting A Material
Steel
Hose 1 Fitting B Type
NPT
Pedestal Type
Dual Pedestal
Hose 2 Fitting B Material
Steel
Includes Hose
Yes
Includes Cord
No
Hose Reel Type
Vehicle Mount Hose Reel, Wall Mount Hose Reel
Swivel Inlet Type
NPT
Hose 1 Fitting A Material
Steel
For Dual Hose
Yes
Feeder Cord Ending
None
Hose 1 Fitting B Gender
Male
Minimum Operating Temperature
-40 Degrees F
Swivel Inlet Gender
Female
Hose 2 Color
Black
Swivel Outlet Gender
Male
Latch Type
Locking
Include Hose Stop
Yes
Hose 1 Color
Black
Hose 1 Fitting A Gender
Male
Number of Mount Holes
4
Maximum Operating Temperature
210 Degrees F
Number of Outlets
2
Hose Return Speed Control
No
Reel Finish
Powder Coated
Hose 2 Tube Material
Polyester/Polyurethane
Fitting Type
NPT x NPT
Reel Material
Steel
Hose Reel Primary Application
Hydraulic Oil
Fasteners Included
No
Hose Capacity
50 ft (3/8 in ID)
Combination Type
Hydraulic/Hydraulic
Hose 2 Fitting A Type
NPT
Hose 1 Tube Material
Polyester/Polyurethane
Seal Material
Nitrile
Hose 2 Fitting B Type
NPT
Minimum Operating Pressure
0 psi
Spiral Hose Guard
No
Includes Leader Hose
No
Hose 1 Cover Material
Polyurethane
Base Motion Type
Stationary
Hose 1 Fitting A Type
NPT
Hose 2 Fitting B Gender
Male
Speed Limited Retraction
No

Description

Dual Reel Spring Return Hose Reel, Hydraulic Oil, 0 psi, 2,000 psi, Combination Type Hydraulic/Hydraulic, Hose Capacity 50 ft (3/8 in ID), Includes Hose Yes, Mounting Location Bench, Ceiling, Floor, Truck, Wall, Overall Height 25 3/8 in, Overall Length 24 in, Overall Width 12 7/8 in, Drive Type Spring Return, Enclosed No, Seal Material Nitrile
