Hand Crank Hose Reel, Overall 18-1/2" H

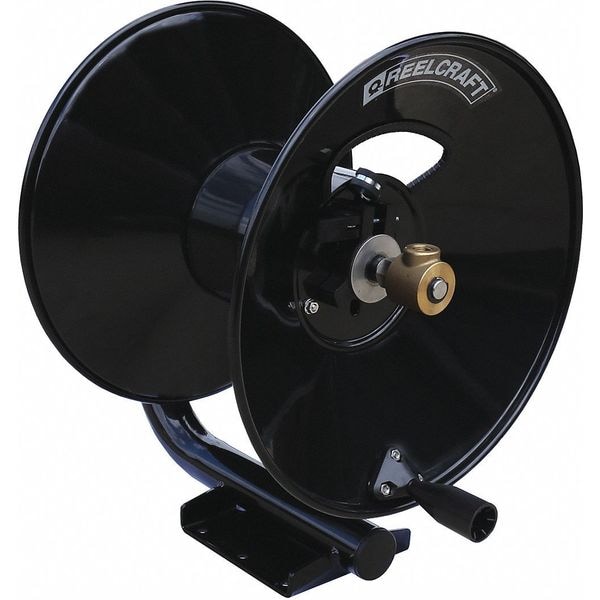

Reelcraft Hand Crank Hose Reel, Overall 18-1/2" H CTJ6200HN
Tap to zoom
Hover or click to zoom
$213.63
  • Hose Included: No
  • Hose Length: 200 ft
  • Hose Inside Dia.: 3/8 in
See full product details
This item ships free.

Total: $213.63

Reelcraft #CTJ6200HN Specifications

  • Hose Included: No
  • Hose Length: 200 ft
  • Hose Inside Dia.: 3/8 in
  • Reel Inlet: 1/2 in (F)NPT
  • Hose Outlet: 3/8 in (F)NPT
  • Finish: Powder Coated
  • Duty Rating: Heavy Duty
  • HP: None
  • Max. Temp. Rating: 210 Degrees F
  • Item: Hand Crank Hose Reel
  • Max. Pressure Rating: 5000 psi
  • Housing Material: Steel
  • Swivel Material: Brass
  • Bearings: Permanently Lubricated
  • Color: Black
  • Drive Type: Hand Crank
  • Overall Length: 16 in
  • Seal Type: PTFE
  • Overall Width: 19 7/8 in
  • Overall Height: 19 7/8 in
  • Application: Pressure Washing
  • Hose Outside Dia.: 3/4 in
  • Mounting: Ceiling, Truck, Wall
  • Includes: Instructions
  • Fasteners Included: No
  • Includes Hose: No
  • Hose Reel Type: Free Standing Hose Reel, Vehicle Mount Hose Reel, Wall Mount Hose Reel
  • For Dual Hose: No
  • Mounting Hole Center to Center Width: 5 in
  • Swivel Inlet Gender: Female
  • Reel Width: 6 in
  • Swivel Inlet Thread Size: 1/2 in - 14
  • Hose Capacity: 200 ft (3/8 in I.D.)
  • Swivel Outlet Type: NPT
  • Overall Dimensions: 16 in L x 19 7/8 in W x 19 7/8 in H
  • Includes Gooseneck: No
  • Reel Color: Black
  • Swivel Inlet Size: 1/2 in
  • Seal Material: Nitrile
  • Swivel Outlet Gender: Female
  • Swivel Outlet Size: 3/8 in
  • Latch Type: Spring Loaded
  • Reel Finish: Powder Coated
  • Maximum Operating Pressure: 5,000 psi
  • Features: Designed For Medium Duty Applications That Require Longer Lengths of High Pressure Air and Water Hose.
  • Includes Leader Hose: No
  • Number of Mount Holes: 4
  • Maximum Operating Temperature: 210 Degrees F
  • Mount Hole Diameter: 7/16 in
  • Swivel Outlet Thread Size: 3/8 in - 18
  • Handle Length: 3 1/8 in
  • Swivel Inlet Type: NPT
  • Hose Reel Primary Application: Air, Garden, Pre-Rinse, Washdown, Water
  • Reel Material: Steel
  • Minimum Operating Temperature: -40 Degrees F
  • Base Motion Type: Stationary
  • Enclosed: No
  • Mounting Hole Center to Center Height: 5 in
  • Mount Base Height: 6 in
  • Mount Base Width: 5 in
  • Reel Diameter: 6 in
  • Weight: 28 lb
  • Bearing Construction: Permanently Lubricated
  • Country of Origin (subject to change): China

Description

Hand Crank Hose Reel, Air, Garden, Pre-Rinse, Washdown, Water, Hose Capacity 200 ft (3/8 in I.D.), 5,000 psi, Overall Height 19 7/8 in, Overall Length 16 in, Overall Width 19 7/8 in, Reel Material Steel, Reel Finish Powder Coated, Drive Type Hand Crank, Enclosed No, Includes Hose No, Mounting Location Bench, Floor, Truck, Wall, Reel Color Black, Includes Gooseneck No, Hose Reel Type Free Standing Hose Reel, Vehicle Mount Hose Reel, Wall Mount Hose Reel, Swivel Material Brass
