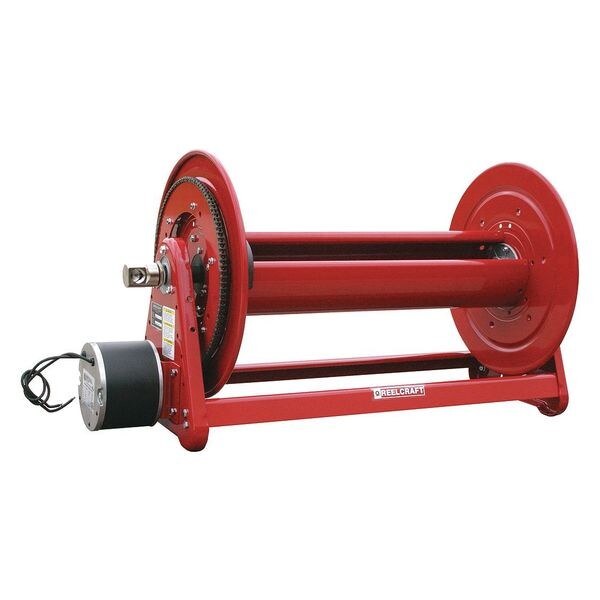

Hose Reel, Motor, 3/4in dia, 275ft., 3000psi

  • Zoro #: G0203878
  • Mfr #: EA33128 M12D
$834.00
  • Overall Length: 17 3/4 in
  • Max. Pressure Rating: 3000 psi
  • Seal Type: Aflas
See full product details
This item ships free.

Reelcraft #EA33128 M12D Specifications

  • Zoro #: G0203878
  • Mfr #: EA33128 M12D
Overall Length: 17 3/4 in Max. Pressure Rating: 3000 psi
Seal Type: Aflas Hose Length: 275 ft
Hose Included: No Drive Type: Motor Driven
Bearings: Permanently Lubricated Hose Outlet: 3/4 in (F)NPT
Mounting: Bench, Floor, Truck, Wall Duty Rating: Heavy Duty
Motor Voltage: 12 V DC Max. Temp. Rating: 250 Degrees F
Finish: Powder Coated Swivel Material: Iron
Hose Outside Dia.: 3/4 in Housing Material: Steel
HP: 0.33 Item: Electric Motor Driven Hose Reel
Reel Inlet: 3/4 in (F)NPT Hose Inside Dia.: 3/4 in
Overall Height: 20 1/4 in Overall Width: 38 5/8 in
Application: Fluids Color: Red
For Dual Hose: No Maximum Operating Temperature: 210 Degrees F
Hose Capacity: 275 ft (3/4 in I.D.) Overall Dimensions: 17 3/4 in L x 38 5/8 in W x 20 1/4 in H
Seal Material: TFE/P Reel Finish: Powder Coated
Reel Width: 27 in Motor Type: Magnetic
Includes Hose: No Mounting Hole Center to Center Width: 30 3/4 in
Reel Material: Steel Features: Heavy Duty; Bolted Construction
Base Motion Type: Stationary Horsepower: 1/3 hp
Swivel Outlet Type: NPT Swivel Inlet Gender: Female
Minimum Operating Pressure: 0 psi Swivel Outlet Gender: Female
Minimum Operating Temperature: 32 Degrees F Bearing Construction: Permanently Lubricated
Reel Color: Red Includes Gooseneck: Yes
Maximum Operating Pressure: 3,000 psi Weight: 91 lb
Includes Leader Hose: No Mount Base Width: 32 in
Swivel Inlet Thread Size: 3/4 in - 14 Reel Diameter: 6 3/8 in
Latch Type: Locking Enclosed: No
Swivel Outlet Size: 3/4 in Mount Base Height: 12 5/8 in
Mounting Hole Center to Center Height: 9 in Swivel Inlet Type: NPT
Swivel Outlet Thread Size: 3/4 in - 14 Hazardous Location: No
Hose Reel Type: Floor, Vehicle Mount Hose Reel, Wall Mount Hose Reel Hose Reel Primary Application: Air, Fire Hose, Garden Hoses, Grease, Hydraulic Oil, Nitrogen, Oil, Pressure Washer, Washdown, Water
Swivel Inlet Size: 3/4 in Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Electric Motor Driven Hose Reel, Air, Fire Hose, Garden Hoses, Grease, Hydraulic Oil, Nitrogen, Oil, Pressure Washer, Washdown, Water, Motor Type Magnetic, Motor Voltage 12 V DC, 3,000 psi, Minimum Operating Pressure 0 psi, Hose Capacity 275 ft (3/4 in I.D.), Drive Type Motor Driven, Includes Hose No, Mounting Location Bench, Floor, Truck, Wall, Overall Height 20 1/4 in, Overall Length 17 3/4 in, Overall Width 38 5/8 in, For Dual Hose No
