Reelcraft Retractable Cord Reel with 50 ft. Cord 1-Outlet 16/3 L 4050 163 3 - main

Retractable Cord Reel with 50 ft. Cord 1-Outlet 16/3

  • Mfr # L 4050 163 3

  • Zoro # G2205472

product price:  $468.99
/ea
Free Shipping & Returns

Key Features

Voltage
120VAC
Overall Height
13 1/4 in
Feeder Cord Ending NEMA Configuration
5-15P
Reel Color
Red
Cord Length
50 ft.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
L 4050 163 3
Zoro #
G2205472
UPC #
699567011002
Country of Origin
United States

Dimensions

Overall Height
13 1/4 in
Cord Length
50 ft.
Overall Depth
9 3/8 in
Overall Width
12 5/8 in
Cord Length - Ext. Cords and Outlet Strips
50 ft.
Wire Size
16 AWG
Retractable Cord Length
50 ft

Details

Voltage
120VAC
Feeder Cord Ending NEMA Configuration
5-15P
Reel Color
Red
Grade
Heavy Duty
Reel Material
Steel
Enclosed Reel
No
Cord Ending NEMA Configuration
5-15R
Number of Outlets
1
Temp. Range
0 Degrees to 125 Degrees F
Gauge/Conductor - Ext. Cords and Outlet Strips
16/3
Gauge/Conductor
16/3
NEC Cord Designation - Ext. Cords and Outlet Strips
SJTOW
Indoor / Outdoor
Indoor
Feeder Cord Ending
Grounding Plug
Grade - Ext. Cords and Outlet Strips
Industrial
Slip Ring Rating
13
Max. Amps - Ext. Cords and Outlet Strips
13.0
Cord Ending
Single Industrial Connector
Retractable Cord Ending
Single Connector
Reel Mounting
Bench, Ceiling, Wall
Cord Included
Yes
Standards
CSA, UL
Watts
1495
NEC Cord Designation
SJTOW
Cord Color
Black
Item
Extension Cord Reel
Max. Amps
13
Voltage - Ext. Cords and Outlet Strips
120VAC
Number of Conductors
3
Temp. Rating
0 Degrees to 125 Degrees F
Winding Method
Spring Retraction
Location
Indoor
Trade Designation
SJTOW
Retractable Cord Ending Configuration
NEMA 5-15R
Feeder Cord Ending Configuration
NEMA 5-15P
Tension Method
Ratchet Lock
Enclosure Rating
Not Rated

Description

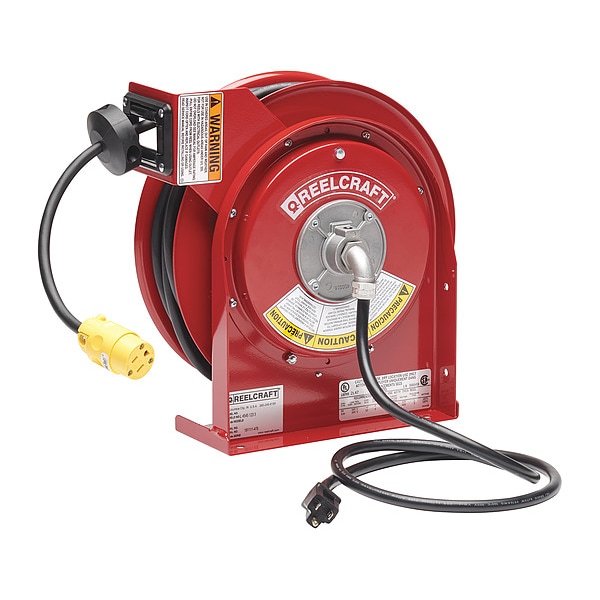

The REELCRAFT L 4050 163 3 is an open extension cord reel with a 50 ft. 16/3 SJTOW black cord and one NEMA 5-15R receptacle. It includes a 4 to 5 ft. feeder pigtail with a grounding NEMA 5-15P plug for 120VAC power connection. This reel is intended for indoor, non-weather-tight applications and can be mounted on a bench, wall, or ceiling.

Key Features of the REELCRAFT L 4050 163 3 Extension Cord Reel:

  • 50 ft. retractable cord: Provides extended reach from the reel to the connected device.
  • 16/3 cord construction: Includes three 16 AWG conductors.
  • Single outlet: Equipped with one NEMA 5-15R receptacle.
  • Feeder plug: Includes a NEMA 5-15P grounding plug on a 4 to 5 ft. pigtail.
  • Spring retraction: Cord rewinds using a spring-driven mechanism.
  • Ratchet lock: Holds the spool in selected positions during use.
  • Steel reel construction: Base, upright, guide arm, spool, and welded base are made of steel.
  • Heavy-duty collector ring: Supports current transfer through the reel.
  • Electrical ratings: 120VAC, 13 amps, 1495 watts.
  • Mounting options: Designed for bench, wall, or ceiling mounting.
  • Operating temperature: Rated for 0 degrees to 125 degrees F.
  • Standards: UL and CSA.
