- Spring Return Hose Reel, 1 in Hose Dia., 35 ft Length, 250 psi
Shop Alternate Products
This Product is Discontinued
Reelcraft

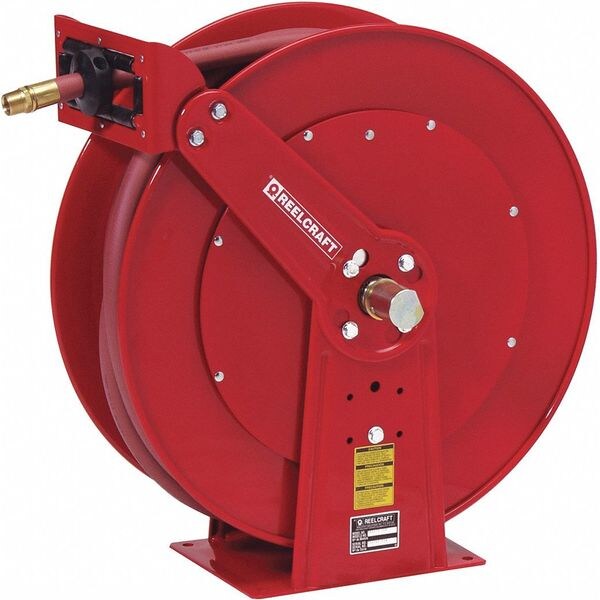

Spring Return Hose Reel, 1 in Hose Dia., 35 ft Length, 250 psi (Discontinued)
Mfr # D84035 OLP
Zoro # G3921029
Free Shipping & Returns
This Product is Discontinued
Key Features
- Duty Rating Heavy Duty
- Finish - Hose Reels Powder Coated
- Hose Included Yes
- Hose Inside Dia. 1 in
- Hose Length 35 ft
Customers Also Purchased
- Brand Reelcraft
- MFR # D84035 OLP
- Zoro # G3921029
- Country of Origin United States
- Category Spring Return Hose Reels
Dimensions
Hose Inside Dia. | 1 in |
Hose Length | 35 ft |
Overall Length | 24 in |
Overall Width | 15 3/4 in |
Overall Height | 25 3/8 in |
Reel Width | 15 3/4 in |
Hose Outside Dia. | 1 3/8 in |
Reel Diameter | 15 1/2 in |
Swivel Outlet Size | 1 in |
Overall Dimensions | 24 in L x 15 3/4 in W x 25 3/8 in H |
Mount Base Height | 12 in |
Hose Fitting A Size | 3/4 in |
Mounting Hole Center to Center Height | 10 1/2 in |
Swivel Inlet Size | 1 in |
Swivel Inlet Thread Size | 1 in - 11 1/2 |
Mounting Hole Center to Center Width | 7 7/8 in |
Swivel Outlet Thread Size | 1 in - 11 1/2 |
Mount Base Width | 9 11/32 in |
Fitting Size | 3/4 in x 3/4 in |
Mount Hole Diameter | 1/2 in |
Hose Fitting B Size | 3/4 in |
Details
Duty Rating | Heavy Duty |
Finish - Hose Reels | Powder Coated |
Hose Included | Yes |
Housing Material | Steel |
Max. Pressure | 250 psi |
Media - Hose Reels | Air, Water |
Mounting | Ceiling, Truck, Wall |
Hose Outlet | 1 in (F)NPT |
Hose Ends | 3/4 in (M)NPT |
Reel Inlet | 1 in (F)NPT |
Bearings | Permanently Lubricated |
Max. Temp. | 150 Degrees F |
Hose Material | PVC |
Swivel Material | Nickel Plated Steel |
Drive Type - Hose Reels | Spring Return |
Enclosed Reel | No |
Latch | Locking |
Includes | Hose; Bumper |
Item | Spring Return Hose Reel |
Seal Type | Aflas |
Drive Type | Spring Return |
Features | Heavy Duty |
Hose Cover Material | PVC |
Hose Tube Material | PVC |
Minimum Operating Temperature | 32 Degrees F |
Reel Finish | Powder Coated |
Swivel Outlet Type | NPT |
Hose Fitting B Material | Brass |
Includes Hose | Yes |
Maximum Operating Temperature | 150 Degrees F |
Twin Hose Compatible | No |
Number of Guide Arms | Double Arm |
Corrosion-Resistant | Yes |
Hose Reel Primary Application | Air, Water |
Hose Fitting B Type | NPT |
Pedestal Type | Dual Pedestal |
Hose End Configuration | 3/4 in MNPT |
Number of Mount Holes | 4 |
Hose Capacity | 35 ft (1 in I.D.) |
Bearing Construction | Ball |
Includes Hose Stop | Yes |
Hose Fitting B Gender | Male |
Base Motion Type | Stationary |
Swivel Outlet Gender | Male |
Latch Type | Spring Loaded |
For Dual Hose | No |
Fasteners Included | No |
Spiral Hose Guard | No |
Hose Fitting A Type | NPT |
Reel Color | Red |
Reel Material | Carbon Steel |
Weight | 97 lb |
Hose Fitting A Gender | Male |
Swivel Inlet Gender | Female |
Hose Fitting A Material | Brass |
Fitting Type | NPT x NPT |
Swivel Inlet Type | NPT |
Speed Limited Retraction | No |
Hose Reel Type | Ceiling, Floor, Vehicle, Wall Mount Hose Reel |
Maximum Operating Pressure | 250 psi |
Includes Leader Hose | No |
Enclosed | No |
Hose Color | Red |
Description
Spring Return Hose Reel, Air, Water, 250 psi, Hose Capacity 35 ft (1 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 1 in, Hose Length 35 ft, Reel Material Carbon Steel, Mounting Location Ceiling, Floor, Truck, Wall, Speed Limited Retraction No, Overall Height 25 3/8 in, Overall Length 24 in, Overall Width 15 3/4 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Red, Hose Cover Material PVC, Hose Fitting A Gender Male
