This item is Discontinued.

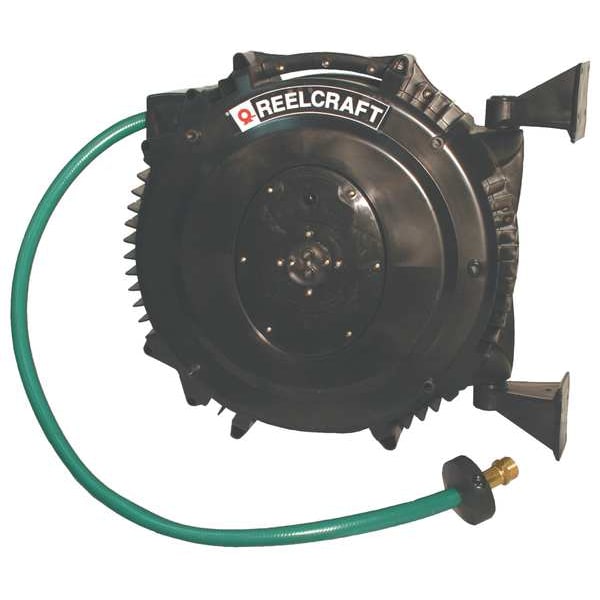

Reelcraft Spring Return Hose Reel, 1/2 in Hose Dia., 50 ft Length, 240 psi SGA3850 OLP

Spring Return Hose Reel, 1/2 in Hose Dia., 50 ft Length, 240 psi (Discontinued)

  • Mfr # SGA3850 OLP
  • Zoro # G2176745
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SGA3850 OLP
Zoro #
G2176745
UPC #
699567010845
Country of Origin
Australia

Dimensions

Hose Inside Dia.
1/2 in
Hose Length
50 ft
Overall Length
22 in
Overall Width
9 1/8 in
Overall Height
19 3/8 in
Length
22 3/4 in
Hose Outside Dia.
13/16 in
Reel Width
9 1/8 in
Height
19 in
Hose Fitting B Size
1/2 in
Hose Fitting A Size
1/2 in
Mount Base Height
18 1/2 in
Mount Base Width
5 in
Mount Hole Diameter
5/16 in
Mounting Hole Center to Center Width
2 1/2 in
Fitting Size
1/2 in x 1/2 in
Mounting Hole Center to Center Height
2 1/8 in
Swivel Inlet Thread Size
1/2 in - 14
Overall Dimensions
22 in L x 9 1/8 in W x 19 3/8 in H
Swivel Outlet Size
1/2 in
Swivel Outlet Thread Size
1/2 in - 14
Swivel Inlet Size
1/2 in

Details

Duty Rating
Heavy Duty
Finish - Hose Reels
Polypropylene
Hose Included
Yes
Housing Material
Polypropylene
Max. Pressure
232 psi
Media - Hose Reels
Air, Water
Mounting
Pivoting Bracket, Wall
Application
Air and Water
Max. Temp.
150 Degrees F
Hose Outlet
1/2 in (M)NPT
Hose Material
PVC
Latch
Locking
Swivel Material
Brass
Reel Inlet
1/2 in (F)NPT
Hose Ends
1/2 in (M)NPT
Enclosed Reel
No
Item
Spring Return Hose Reel
Includes
Hose; Bumper
Drive Type - Hose Reels
Spring Return
Bearings
Permanently Lubricated
Drive Type
Spring Return
Features
External Hose Tensioning, Medium Duty Composite Hose Reel, Unique Mounting, Vented Case
Reel Color
Black
Maximum Operating Pressure
232 psi
Fitting Type
NPT x NPT
Hose Fitting B Type
NPT
Swivel Inlet Gender
Female
Corrosion-Resistant
Yes
Latch Type
Spring Loaded
Hose Fitting B Gender
Male
Hose Capacity
50 ft (1/2 in I.D.)
Base Motion Type
Swivel
Fasteners Included
No
Hose Reel Primary Application
Air, Water
Hose Cover Material
PVC
Speed Limited Retraction
No
Minimum Operating Temperature
32 Degrees F
Weight
23 lb
Maximum Operating Temperature
150 Degrees F
Bearing Construction
Permanently Lubricated
Pedestal Type
Single Pedestal
Hose Fitting A Material
Brass
Includes Hose Stop
Yes
Number of Guide Arms
Single Arm
Enclosed
Yes
Swivel Inlet Type
NPT
Hose Reel Type
Ceiling, Floor, Wall Mount Hose Reel
Hose End Configuration
1/2 in MNPT
Spiral Hose Guard
No
Swivel Outlet Gender
Male
Hose Fitting A Type
NPT
Includes Leader Hose
No
For Dual Hose
No
Hose Tube Material
PVC
Hose Fitting B Material
Brass
Includes Hose
Yes
Hose Color
Orange
Swivel Outlet Type
NPT
Reel Material
Plastic
Number of Mount Holes
8
Twin Hose Compatible
No
Hose Fitting A Gender
Male
Type
Poly Low Pressure, Auto Retractable

Description

Spring Return Hose Reel, Air, Water, 232 psi, Hose Capacity 50 ft (1/2 in I.D.), Drive Type Spring Return, Enclosed Yes, Includes Hose Yes, Hose Inside Dia. 1/2 in, Hose Length 50 ft, Reel Material Plastic, Mounting Location Ceiling, Floor, Wall, Speed Limited Retraction No, Overall Height 19 3/8 in, Overall Length 22 in, Overall Width 9 1/8 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Orange, Hose Cover Material PVC, Hose Fitting A Gender Male
