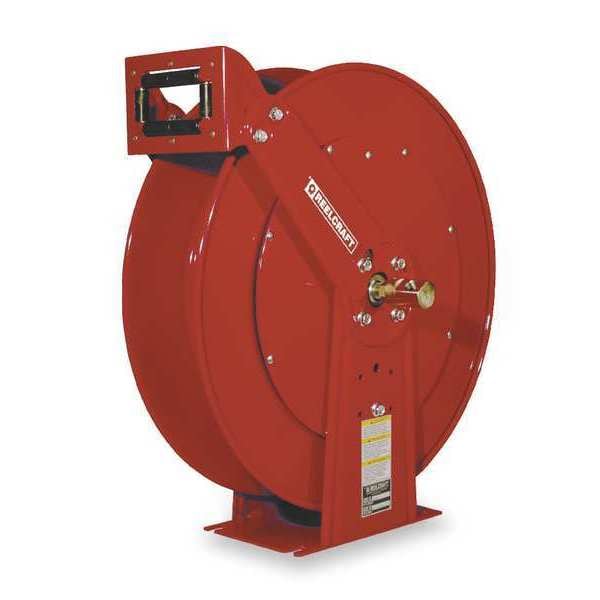

Spring Return Hose Reel, 3/8 in Hose Diameter, 100 ft Length, 5,000 psi Max. Pressure, Red
Mfr # PW81000 OHP
Zoro # G0375566
product price:Â
$
870.99
/ea
Free Shipping & Returns
Key Features
Max. Pressure
5,000 psi
Drive Type
Spring Return
Enclosed
No
Hose Inside Dia.
3/8 in
Hose End Configuration
3/8 in (M)NPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PW81000 OHP
- Zoro #
- G0375566
- UPC #
- 699567010654
- Country of Origin
- United States
Dimensions
- Hose Inside Dia.
- 3/8 in
- Overall Height
- 25 3/8 in
- Hose Length
- 100 ft
- Overall Width
- 10 1/2 in
- Overall Length
- 24 in
- Reel Diameter
- 15 1/2 in
- Hose Outside Dia.
- 0.73"
- Length
- 24 in
- Reel Width
- 10 1/2 in
- Height
- 25 3/8 in
- Width
- 10 1/2 in
- Mounting Hole Center to Center Width
- 8 1/8 in
- Swivel Outlet Size
- 3/8 in
- Mount Hole Diameter
- 1/2 in
- Overall Dimensions
- 24 in L x 10 1/2 in W x 25 3/8 in H
- Mount Base Width
- 7 3/8 in
- Swivel Inlet Size
- 1/2 in
- Mount Base Height
- 12 in
- Swivel Inlet Thread Size
- 1/2 in - 14
- Swivel Outlet Thread Size
- 3/8 in - 18
- Mounting Hole Center to Center Height
- 10 1/2 in
- Wire Rope Length
- 24 in
Description
REELCRAFT PW81000 OHP is a spring return hose reel for water and pressure wash service. It is built with a steel frame and powder-coated finish, and it is designed to handle up to 100 ft of 3/8 in I.D. hose. The reel includes a high-pressure water swivel with a 1/2 in (F)NPT inlet and 3/8 in (F)NPT outlet, and it is rated for operation up to 5,000 psi. This stationary reel can be mounted on a bench, truck, ceiling, floor, or wall for pressure washer and equipment cleaning setups.
Key Features:
- Spring return drive: Retracts the hose automatically after use.
- Hose capacity: Holds up to 100 ft of 3/8 in I.D. hose.
- Pressure rating: Rated for up to 5,000 psi for pressure wash applications.
- Swivel construction: High-pressure nickel-plated steel water swivel with full-flow design for water service.
- Connection sizes: Reel inlet is 1/2 in (F)NPT; hose outlet is 3/8 in (F)NPT; hose end connection is 3/8 in (M)NPT.
- Material and finish: Steel reel construction with powder-coated components and corrosion-resistant design.
- Bearing system: Ball bearings are permanently lubricated.
- Latch: Spring-loaded locking latch helps hold the hose at the selected length.
- Mounting options: Can be mounted on a bench, truck, ceiling, floor, or wall.
- Operating temperature range: 32 to 210 degrees F.
- Overall size: 24 in L x 10 1/2 in W x 25 3/8 in H.
