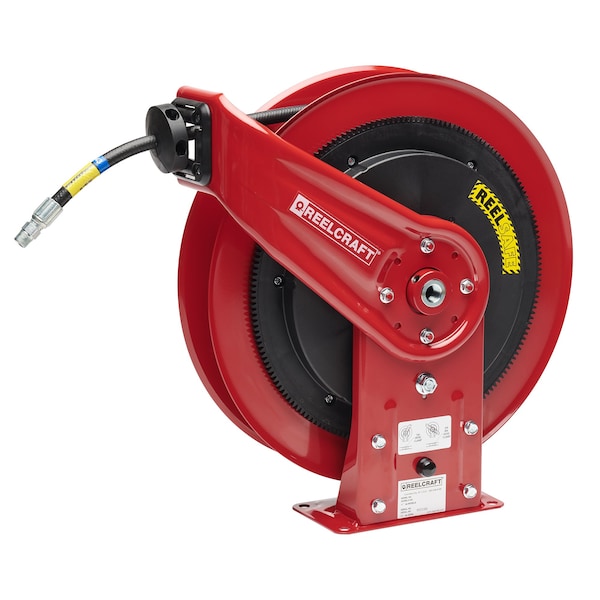

Reelcraft Spring Return Hose Reel, 3/8 in Hose Diameter, 50 ft Length, 4800 psi Max. Pressure, Red RS7650 OHP - main

Spring Return Hose Reel, 3/8 in Hose Diameter, 50 ft Length, 4800 psi Max. Pressure, Red

  • Mfr # RS7650 OHP

  • Zoro # G3193962

product price:  $777.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
4800 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose; Bumper
Hose Inside Dia.
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RS7650 OHP
Zoro #
G3193962
UPC #
699567029885
Country of Origin
United States

Dimensions

Hose Inside Dia.
3/8 in
Overall Height
20 9/64 in
Hose Length
50 ft
Overall Width
6 3/4 in
Overall Length
19 41/64 in
Reel Diameter
9 in
Hose Outside Dia.
3/4 in
Hose Fitting A Size
1/4 in
Reel Width
6 3/4 in
Swivel Inlet Size
3/8 in
Mount Hole Diameter
1/2 in
Fitting Size
1/4 in x 1/4 in
Hose Fitting B Size
1/4 in
Swivel Outlet Size
1/2 in
Mounting Hole Center to Center Width
3 7/8 in
Mount Base Width
4 61/64 in
Swivel Inlet Thread Size
3/8 in - 18
Swivel Outlet Thread Size
1/2 in - 14
Mounting Hole Center to Center Height
7 13/16 in
Mount Base Height
8 61/64 in
Overall Dimensions
19 42/64 in L x 6 3/4 in W x 20 9/64 in H

Details

Item
Spring Return Hose Reel
Max. Pressure
4800 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose; Bumper
Hose End Configuration
1/4 in MNPT
Hose Color
Black
Mounting
Ceiling, Floor, Truck, Wall
Reel Color
Red
Features
Controlled Hose Retraction
Swivel Material
Nickel Plated Steel
Swivel Outlet Gender
Male
Fitting Type
NPT x NPT
Twin Hose Compatible
No
For Dual Hose
No
Hose Tube Material
Synthetic Rubber
Swivel Outlet Type
NPT
Hose Fitting B Material
Steel
Reel Material
Carbon Steel
Fasteners Included
No
Includes Hose Stop
Yes
Number of Guide Arms
Single Arm
Hose Fitting A Gender
Male
Corrosion-Resistant
Yes
Latch Type
Spring Loaded
Minimum Operating Temperature
32 Degrees F
Reel Finish
Powder Coated
Retraction Speed
2 mph
Swivel Inlet Gender
Female
Hose Reel Type
Ceiling, Floor, Vehicle, Wall Mount Hose Reel
Hose Fitting A Material
Steel
Maximum Operating Pressure
4,800 psi
Number of Mount Holes
4
Hose Fitting B Type
NPT
Includes Hose
Yes
Maximum Operating Temperature
210 Degrees F
Hose Cover Material
Synthetic Rubber
Hose Reel Primary Application
Grease
Base Motion Type
Stationary
Swivel Inlet Type
NPT
Hose Fitting B Gender
Male
Pedestal Type
Single Pedestal
Hose Capacity
50 ft (3/8 in I.D.)
Weight
63 lb
Hose Fitting A Type
NPT
Includes Leader Hose
No
Speed Limited Retraction
Yes
Spiral Hose Guard
No
Bearing Construction
Ball

Description

Spring Return Hose Reel, Grease, 4,800 psi, Hose Capacity 50 ft (3/8 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 3/8 in, Hose Length 50 ft, Reel Material Carbon Steel, Mounting Location Ceiling, Floor, Truck, Wall, Speed Limited Retraction Yes, Overall Height 20 9/64 in, Overall Length 19 41/64 in, Overall Width 6 3/4 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Black, Hose Cover Material Synthetic Rubber, Hose Fitting A Gender Male

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
