Reese

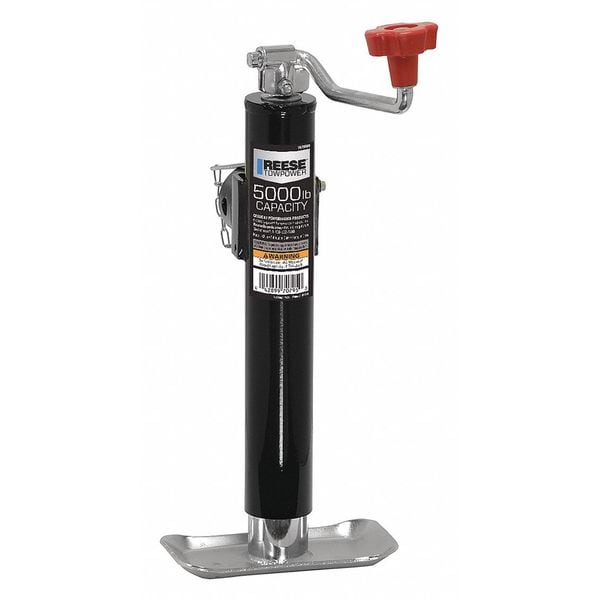

Tubular Swivel Jack, 10" Lift Range

Reese Tubular Swivel Jack, 10" Lift Range 7079500
Hover or click to zoom Tap to zoom
  • Handle Type: Topwind
  • Adjustment Range: 10 in
  • Load Capacity: 5,000 lb
  • Lift Range: 10 in
  • Base: Footplate
  • Diameter: 2 1/4 in
  • Type: Topwind Trailer Jack
  • Gear Travel: 10 in
See full product details
$45.26
Orders over $75 ship free.

Subtotal: $45.26

Reese #7079500 Specifications

  • Handle Type: Topwind
  • Adjustment Range: 10 in
  • Load Capacity: 5,000 lb
  • Lift Range: 10 in
  • Base: Footplate
  • Diameter: 2 1/4 in
  • Type: Topwind Trailer Jack
  • Gear Travel: 10 in
  • Max. Lift Height: 1 ft 1-1/2 in
  • Mounting Brackets: Weld-On Tubular Mount
  • Item: Topwind Tubular Swivel Jack
  • Standards: ASABE S485
  • Features: Ergonomic Design
  • Includes: Mating Mount, Retaining Ring
  • Static Load Capacity: 5,000 lb
  • Finish: Zinc (Inner Tube)
  • Construction: Steel
  • Overall Height: 18 in
  • Handle: Topwind
  • Lifting Capacity: 5,000 lb
  • Retracted Length: 11 3/16 in
  • Minimum Lift Height: 1 ft 9 in
  • Maximum Lift Height: 1 ft 1 1/2 in
  • Maximum Lifting Capacity: 5,000 lb
  • Number of Wheels: 0
  • Extended Length: 10 in
  • Minimum Lifting Capacity: Not Applicable
  • Jack Type: Topwind Trailer Jack
  • Country of Origin (subject to change): China

Description

Topwind Tubular Swivel Jack, Number of Wheels 0, Static Load Capacity 5,000 lb, Maximum Lift Height 1 ft 1 1/2 in, Minimum Lift Height 1 ft 9 in, Handle Type Topwind, Mounting Type Weld-On Tubular Mount, Gear Travel 10 in, Load Capacity 5,000 lb, Maximum Lifting Capacity 5,000 lb, Extended Length 10 in, Retracted Length 11 3/16 in, Jack Type Topwind Trailer Jack, Adjustment Range 10 in, Base Footplate, Construction Steel, Diameter 2 1/4 in, Features Ergonomic Design, Finish Zinc (Inner Tube)
