RG-58C Coax Cbl Assmbly w/SMA (Male) to N-Type (Female ) Cnnctrs, 50 Ohm Impedance, 4FT Lngth
Mfr # R-CX-1101-48
Zoro # G201908461
product price:
$
90.95
/ea
Key Features
Impedance
50 Ω
Mating Cycles
100, 500
Voltage Rating
500 V Maximum
Jacket
Black PVC (non-contaminating), Type IIA per MIL-C-17
Body Material
Nickel-plated brass
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- R-CX-1101-48
- Zoro #
- G201908461
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Bend Radius
- 2.0"
- Overall Diameter
- 0.195"
Details
- Impedance
- 50 Ω
- Mating Cycles
- 100, 500
- Voltage Rating
- 500 V Maximum
- Jacket
- Black PVC (non-contaminating), Type IIA per MIL-C-17
- Body Material
- Nickel-plated brass
- Connector A Type
- SubMiniature version A (SMA)
- Connector B Type
- N connector (Type N) Gender
- Contact Material
- Gold-plated phosphor bronze, Gold-plated brass
- Operating Frequency
- 5.0 GHz Maximum
- Style
- Bulkhead panel mount (3/4" hex nut), Straight
- Temperature Rating
- -40°C (-40°F) to 80°C (176°F)
- Gender
- Female (Jack), Male (Plug)
- Cable Type
- RG-58C/U Coaxial
Description

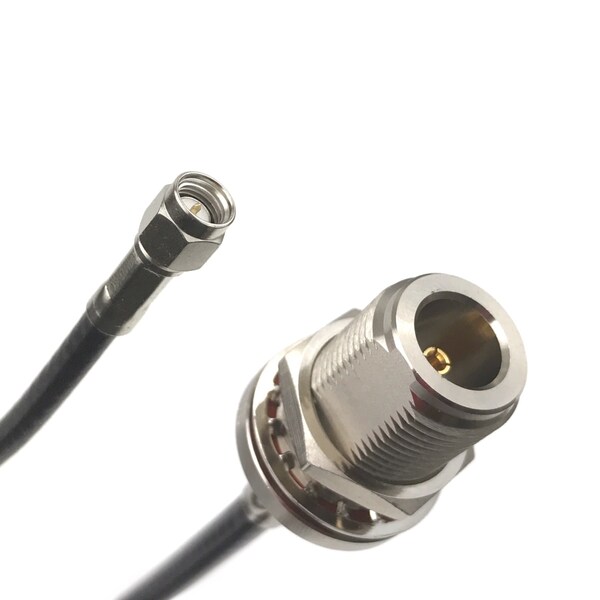

This RG-58C, SMA (Male) to N-Type (Female Bulkhead) coax cable assembly by Remington Industries is ideal for general 50 Ω impedance signal transmission Apps. These include many military & civil radio frequency (RF) operations such as cable television (CATV/MATV), telecommunications, WiFi/network antennas, laboratory benches, and ham/CB/other radio setups, as well as any other signal transfer Apps in fields such as aerospace, scientific, and medical. Attached to one end of the assembly is a male SMA plug with a nickel-plated brass body and a gold-plated contact. At the other end is a female type N bulkhead (panel mount) style jack with a nickel-plated brass body and a gold-plated contact. The coaxial cable in between is RG-58C type, which is a widely used coax variety with a black, non-contaminating PVC jacket for additional physical protection.
