  6. Cord Grip, Swvl, 1-1/2", 1.250-1.375, Mesh

This item is Discontinued.

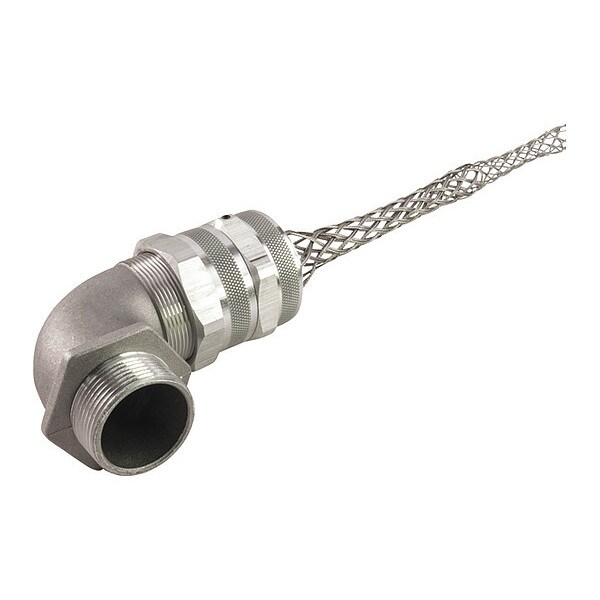

Remke Cord Grip, Swvl, 1-1/2", 1.250-1.375, Mesh SWV-9522-E

Cord Grip, Swvl, 1-1/2", 1.250-1.375, Mesh (Discontinued)

  • Mfr # SWV-9522-E
  • Zoro # G7226200
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SWV-9522-E
Zoro #
G7226200
UPC #
785411198422
Country of Origin
United States

Dimensions

C Dimension (in)
3.19
G Dimension (in)
2.69
A Dimension (in)
1.4
Inside Body Diameter / Body Bore
1.45
Conduit Size
1.5
Thread Size
1.5
Maximum Knock Out Size (in)
2.016
E Dimension (in)
2.13
B Dimension (in)
0.69
F Dimension (in)
2.47
D Dimension (in)
4.41

Details

Item
Cord Grip,Swvl,1-1/2",1.250-1.375,Mesh
Cord Grip Type
90 Degree
Flammability Rating
UL 94HB
Minimum Operating Temperature (C)
-40
Min Cable Range over Jacket (in)
1.25
Maximum Operating Temperature (F)
250
Thread Type
NPT
Bushing Material
Neoprene
Bushing Holes
1
Cable Range
1.250 - 1.375
Minimum Operating Temperature (F)
-40
Clearance Hole (in)
2.016
Body Material
Aluminum
Connector Material
Aluminum
Max Cable Range over Jacket (in)
1.375
Maximum Operating Temperature (C)
121

Description

Cord Grip,Swvl,1-1/2 In.,1.250-1.375,Mesh
