  6. Cordset, Dual Key, PVC, Male, 2 Pole, 20 ft.

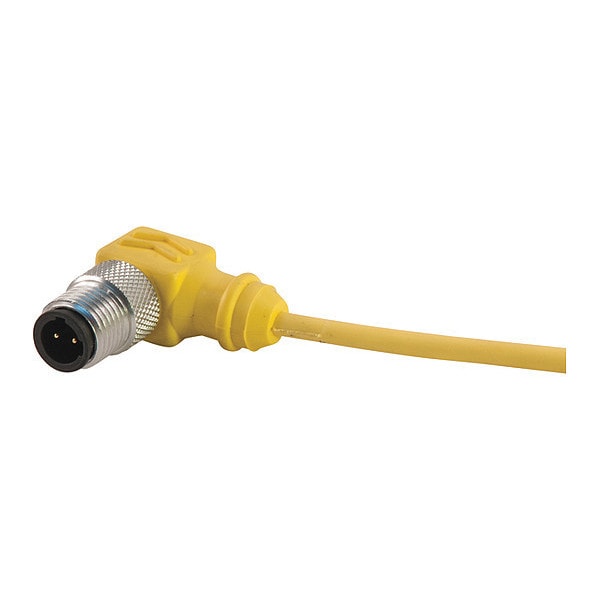

Remke Cordset, Dual Key, PVC, Male, 2 Pole, 20 ft. 202F0200G - main

Cordset, Dual Key, PVC, Male, 2 Pole, 20 ft.

  • Mfr # 202F0200G

  • Zoro # G7207553

product price:  $32.99
/ea
Sold in multiples of 3 for $98.97

Key Features

IP Rating
IP67
NEMA Rating
6P
Body Material
PVC
Contact Material
Brass, Gold Plated Over Nickel"
Minimum Operating Temperature (C)
-20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
202F0200G
Zoro #
G7207553
UPC #
-
Country of Origin
United States

Dimensions

Width (in)
0.57
Length (in)
1.25
Height (in)
1.26
Cable Length (ft)
20
Cable Jacket Outer Diameter (in)
0.23

Details

Item
Cordset,Dual Key,PVC,Male,2 Pole,20 ft.
IP Rating
IP67
NEMA Rating
6P
Body Material
PVC
Contact Material
Brass, Gold Plated Over Nickel"
Minimum Operating Temperature (C)
-20
Wire Gauge
22 AWG
Conductor Color 2
Blue
Connector Style
MicroLink Dual Key
O-Ring Material
Nitrile Rubber
CSA Specification
E165657
Tab Info
ROHS,IP Ratings,CRT,TL APP,Cable Cross,Coupling Nut Mtl,Knockout Dim,Cable Jacket Mtl
Coupling Nut Material
Aluminum
Wiring Color Code
Auto CC
Cable Strand
26 X #36
Coupling Nut Plating
Clear Anodized
Thread 1
1/2-20 UNF
Maximum Operating Temperature (F)
221
Insert Material
Nylon
Current Rating (amps)
4
Cordset Configuration
90 Degree
Contact Resistance (Micro Ohms)
5
Voltage Rating (DC)
300
Maximum Operating Temperature (C)
105
Poles
2
Conductor Color 1
Brown
Voltage Rating (AC)
250
cRU Specification
E165657
Cable Jacket Color
Yellow
Minimum Operating Temperature (F)
-4
Cable Code
Auto
Contact Carrier Material
Nylon
Cable Jacket Material
PVC

Description

Cordset,Dual Key,PVC,Male,2 Pole,20 ft.
