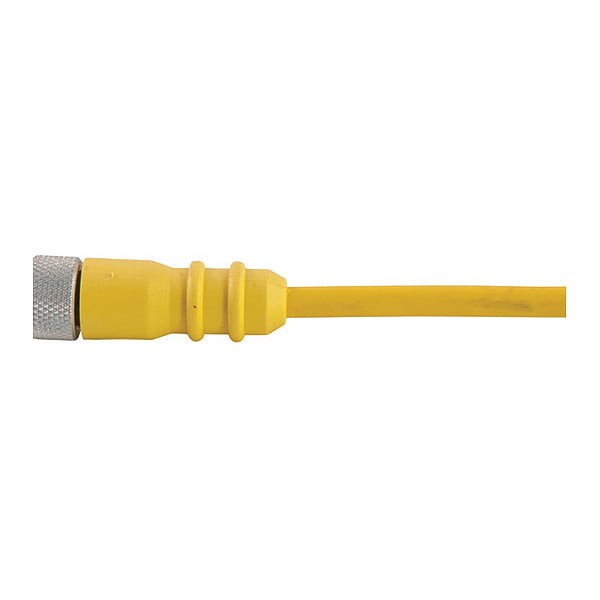

Cordset, Dual Key, TPE, Male, 4 Pole, 20 ft.

Name: Cordset, Dual Key, TPE, Male, 4 Pole, 20 ft.
Brand: Remke
SKU: G7210021
Price: 137.78 USD
Availability: InStock

68.89

/ea

Sold in multiples of 2 for $137.78

Body Material

PUR

IP Rating

IP67

NEMA Rating

Contact Material

Brass, Gold Plated Over Nickel"

Cable Jacket Outer Diameter (in)

0.26

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Cordset,Dual Key,TPE,Male,4 Pole,20 ft.
Body Material: PUR
IP Rating: IP67
NEMA Rating: 6P
Contact Material: Brass, Gold Plated Over Nickel"
Wiring Color Code: Auto CC
Wire Gauge: 18 AWG
Cable Strand: 41 X #34
Insert Material: Nylon
Cordset Configuration: Straight
Minimum Operating Temperature (C): -20
Conductor Color 1: Red/Black
Maximum Operating Temperature (C): 80
Minimum Operating Temperature (F): -4
Voltage Rating (DC): 300
Maximum Operating Temperature (F): 176
Thread 1: 1/2-20 UNF
Cable Code: Auto
Cable Jacket Material: TPE
cRU Specification: E165657
CSA Specification: E165657
O-Ring Material: Nitrile Rubber
Poles: 4
Contact Resistance (Micro Ohms): 5
Current Rating (amps): 5
Conductor Color 4: Green
Contact Carrier Material: Nylon
Coupling Nut Material: Aluminum
Conductor Color 3: Red
Voltage Rating (AC): 250
Coupling Nut Plating: Clear Anodized
Conductor Color 2: Red/White
Tab Info: CRT,TL APP,Cable Jacket Mtl,IP Ratings,Cable Cross,Coupling Nut Mtl,Knockout Dim,ROHS
Connector Style: MicroLink Dual Key
Cable Jacket Color: Yellow

Cordset,Dual Key,TPE,Male,4 Pole,20 ft.
