Remke

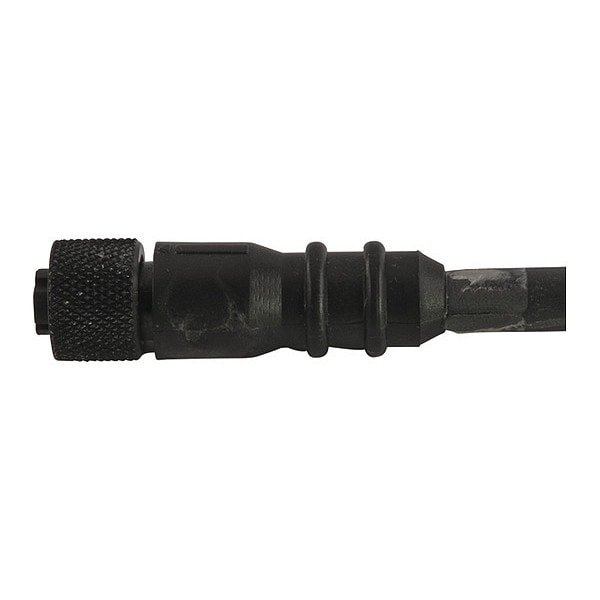

Cordset, Etherlink M12, Female, 13.1 ft. (Discontinued)

Key Features

  • Cable Length 13.1 ft.
  • Jacket Color Black
  • Max. Voltage 125VAC/VDC
  • Wire Size 24 AWG
  • Features Single and Double Ended Options Including an RJ45 Cable Assembly; Available in Male and Female; Straight and 90 Degree Configurations; Receptacles Designed for Conventional Threaded Connections to Ensure Reliable Mating
See all product information

Product Information

Dimensions

Cable Length 13.1 ft.
Wire Size 24 AWG
Width (in) 0.57
Length (in) 1.85
Cable Length (ft) 13.1
Cable Jacket Outer Diameter (in) 0.32

Details

Item Etherlink Connector, Plug Assembly
Jacket Color Black
Max. Voltage 125VAC/VDC
Features Single and Double Ended Options Including an RJ45 Cable Assembly; Available in Male and Female; Straight and 90 Degree Configurations; Receptacles Designed for Conventional Threaded Connections to Ensure Reliable Mating
Temp. Range -4 Degrees to 167 Degrees F
IP Rating IP67
For Use With Industrial Ethernet Systems; Sensor Connectors; Actuators; Panels And Cabinets; Automation Components
NEMA Rating 6P
Number of Conductors 4
Max. Amps 4A
Body Material PVC
Color White/Orange, White/Green, Orange, Green
Minimum Operating Temperature (F) -4
Coupling Nut Material Aluminum
Contact Material Brass, Gold Plated Over Nickel"
Cable Jacket Color Black
Conductor Color 3 Orange
O-Ring Material Nitrile Rubber
Coupling Nut Plating Black Anodized
Conductor Color 4 Green
Insert Material Nylon
Conductor Color 1 White/Orange
Contact Carrier Material Nylon
cRU Specification E165657
Voltage Rating (DC) 125
Contact Resistance (Micro Ohms) 5
Thread 1 M12X1
Cable Jacket Material TPE
Cable Code Euro
Cordset Configuration Straight
Wiring Color Code Ethernet
Wire Gauge 24 AWG
Conductor Color 2 White/Green
Maximum Operating Temperature (F) 167
Current Rating (amps) 4
Voltage Rating (AC) 125
Poles 4
Connector Style MicroLink Ethernet

Description

Cordset,Etherlink M12,Female,13.1 ft.
