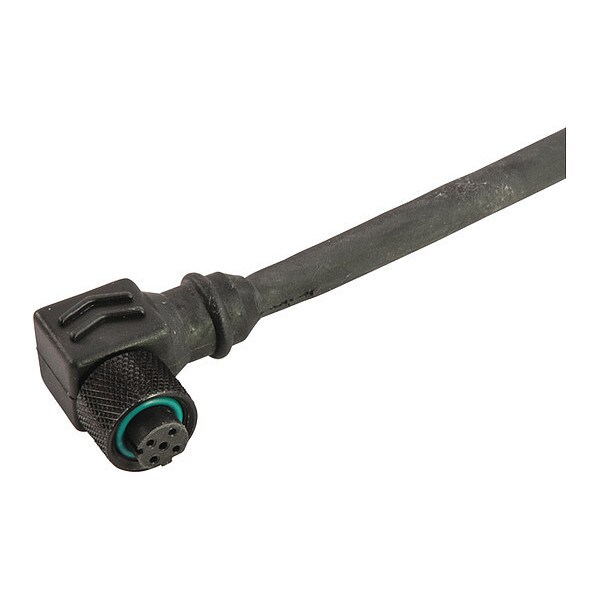

Remke Cordset, Etherlink M12, Female, 6.6 ft. E04C0066BA5

Cordset, Etherlink M12, Female, 6.6 ft. (Discontinued)

  • Mfr # E04C0066BA5
  • Zoro # G7220138
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
E04C0066BA5
Zoro #
G7220138
UPC #
785411038290
Country of Origin
United States

Dimensions

Cable Length
6.6 ft.
Wire Size
24 AWG
Length (in)
1.07
Height (in)
1.26
Cable Jacket Outer Diameter (in)
0.32
Cable Length (ft)
6.6
Width (in)
0.57

Details

Item
Etherlink Connector, Plug Assembly
Jacket Color
Black
IP Rating
IP67
Max. Amps
4A
Temp. Range
-4 Degrees to 167 Degrees F
Body Material
PVC
For Use With
Industrial Ethernet Systems; Sensor Connectors; Actuators; Panels And Cabinets; Automation Components
NEMA Rating
6P
Max. Voltage
125VAC/VDC
Features
Single and Double Ended Options Including an RJ45 Cable Assembly; Available in Male and Female; Straight and 90 Degree Configurations; Receptacles Designed for Conventional Threaded Connections to Ensure Reliable Mating
Number of Conductors
4
Color
White/Orange, White/Green, Orange, Green
Contact Resistance (Micro Ohms)
5
Minimum Operating Temperature (F)
-4
Thread 1
M12X1
Connector Style
MicroLink Ethernet
Wire Gauge
24 AWG
Conductor Color 3
Orange
Cable Jacket Color
Black
cRU Specification
E165657
Contact Material
Brass, Gold Plated Over Nickel"
Voltage Rating (DC)
125
Current Rating (amps)
4
Maximum Operating Temperature (F)
167
Conductor Color 4
Green
Conductor Color 2
White/Green
Cable Jacket Material
TPE
Cordset Configuration
90 Degree
Insert Material
Nylon
Coupling Nut Material
Aluminum
Conductor Color 1
White/Orange
Voltage Rating (AC)
125
O-Ring Material
Nitrile Rubber
Coupling Nut Plating
Black Anodized
Poles
4
Cable Code
Euro
Contact Carrier Material
Nylon
Wiring Color Code
Ethernet

Description

Cordset,Etherlink M12,Female,6.6 ft.
