  11. Cordset, Etherlink M12, Male, 6.6 ft.

This item is Discontinued.

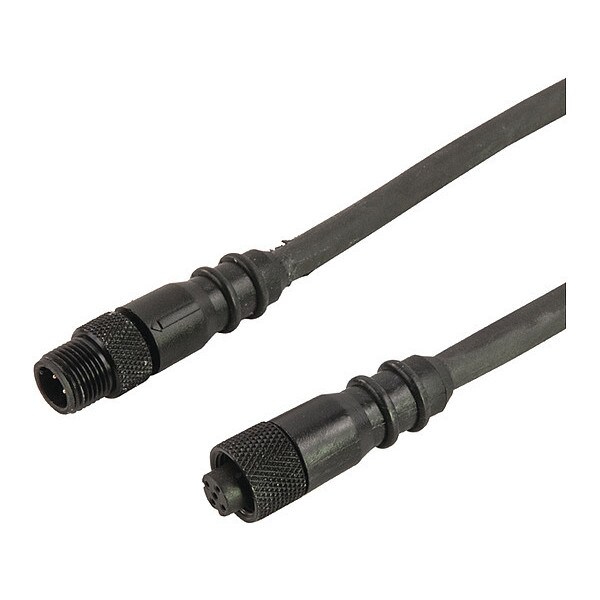

Remke Cordset, Etherlink M12, Male, 6.6 ft. E04F0066BA5

Cordset, Etherlink M12, Male, 6.6 ft. (Discontinued)

  • Mfr # E04F0066BA5
  • Zoro # G7220199
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E04F0066BA5
Zoro #
G7220199
UPC #
785411038310
Country of Origin
United States

Dimensions

Cable Length
6.6 ft.
Wire Size
24 AWG
Width (in)
0.57
Length (in)
1.25
Height (in)
1.26
Cable Jacket Outer Diameter (in)
0.32
Cable Length (ft)
6.6

Details

Item
Etherlink Connector, Plug Assembly
Jacket Color
Black
IP Rating
IP67
Color
White/Orange, White/Green, Orange, Green
Number of Conductors
4
NEMA Rating
6P
Temp. Range
-4 Degrees to 167 Degrees F
Body Material
PVC
Max. Amps
4A
For Use With
Industrial Ethernet Systems; Sensor Connectors; Actuators; Panels And Cabinets; Automation Components
Features
Single and Double Ended Options Including an RJ45 Cable Assembly; Available in Male and Female; Straight and 90 Degree Configurations; Receptacles Designed for Conventional Threaded Connections to Ensure Reliable Mating
Max. Voltage
125VAC/VDC
Contact Carrier Material
Nylon
cRU Specification
E165657
Maximum Operating Temperature (F)
167
Coupling Nut Material
Aluminum
Current Rating (amps)
4
Conductor Color 3
Orange
Cable Jacket Color
Black
Conductor Color 2
White/Green
Voltage Rating (DC)
125
O-Ring Material
Nitrile Rubber
Conductor Color 4
Green
Coupling Nut Plating
Black Anodized
Voltage Rating (AC)
125
Cable Code
Euro
Conductor Color 1
White/Orange
Insert Material
Nylon
Connector Style
MicroLink Ethernet
Poles
4
Wiring Color Code
Ethernet
Minimum Operating Temperature (F)
-4
Cable Jacket Material
TPE
Thread 1
M12X1
Wire Gauge
24 AWG
Contact Material
Brass, Gold Plated Over Nickel"
Cordset Configuration
90 Degree
Contact Resistance (Micro Ohms)
5

Description

Cordset,Etherlink M12,Male,6.6 ft.
