  6. Cordset, Etherlink M12, Shield, F, 16.4 ft.

This item is Discontinued.

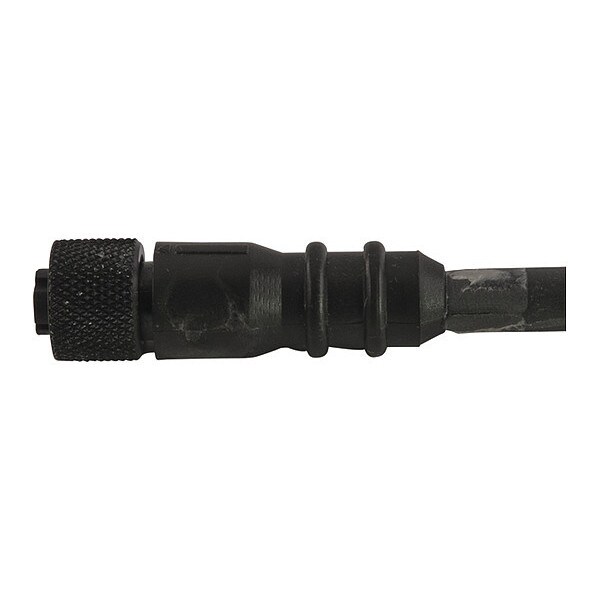

Remke Cordset, Etherlink M12, Shield, F, 16.4 ft. E04A0164BA5S9

Cordset, Etherlink M12, Shield, F, 16.4 ft. (Discontinued)

  • Mfr # E04A0164BA5S9
  • Zoro # G7220171
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
E04A0164BA5S9
Zoro #
G7220171
UPC #
785411045420
Country of Origin
United States

Dimensions

Cable Length
16.4 ft.
Wire Size
24 AWG
Width (in)
0.57
Cable Length (ft)
16.4
Cable Jacket Outer Diameter (in)
0.32
Length (in)
1.85

Details

Item
Etherlink Connector, Cable Assembly
Jacket Color
Black
IP Rating
IP67
Max. Voltage
125VAC/VDC
Features
Single and Double Ended Options Including an RJ45 Cable Assembly; Available in Male and Female; Straight and 90 Degree Configurations; Receptacles Designed for Conventional Threaded Connections to Ensure Reliable Mating
Color
White/Orange, White/Green, Orange, Green
For Use With
Industrial Ethernet Systems; Sensor Connectors; Actuators; Panels And Cabinets; Automation Components
Body Material
PVC
Temp. Range
-4 Degrees to 167 Degrees F
Max. Amps
4A
NEMA Rating
6P
Number of Conductors
4
cRU Specification
E165657
Voltage Rating (AC)
125
Coupling Nut Plating
Black Anodized
Thread 1
M12X1
Conductor Color 3
Orange
Contact Material
Brass, Gold Plated Over Nickel"
Coupling Nut Material
Aluminum
Conductor Color 4
Green
Current Rating (amps)
4
Conductor Color 2
White/Green
Poles
4
Insert Material
Nylon
O-Ring Material
Nitrile Rubber
Cordset Configuration
Straight
Contact Resistance (Micro Ohms)
5
Voltage Rating (DC)
125
Conductor Color 1
White/Orange
Cable Code
Euro
Wiring Color Code
Ethernet
Minimum Operating Temperature (F)
-4
Wire Gauge
24 AWG
Contact Carrier Material
Nylon
Cable Jacket Material
TPE
Connector Style
MicroLink Ethernet
Cable Jacket Color
Black
Maximum Operating Temperature (F)
167

Description

Cordset,Etherlink M12,Shield,F,16.4 ft.
