  6. Cordset, Pico-Link, PVC, F, 3 Pole, 32.8 ft.

This item is Discontinued.

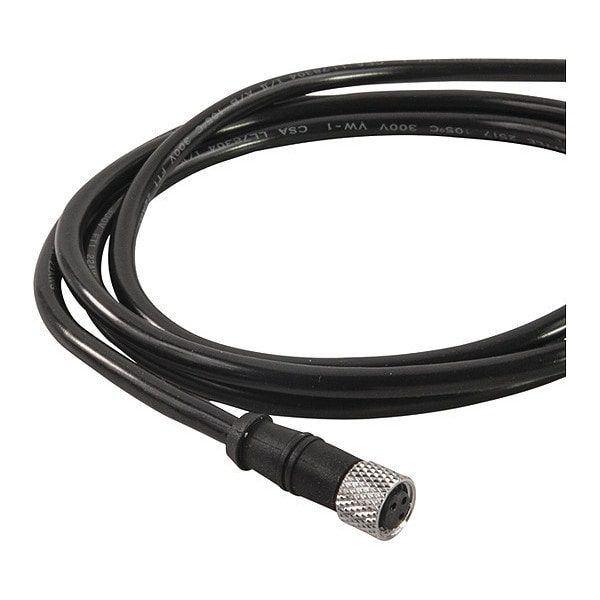

Remke Cordset, Pico-Link, PVC, F, 3 Pole, 32.8 ft. PC03A032811E

Cordset, Pico-Link, PVC, F, 3 Pole, 32.8 ft. (Discontinued)

  • Mfr # PC03A032811E
  • Zoro # G7219523
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PC03A032811E
Zoro #
G7219523
UPC #
785411815152
Country of Origin
Germany

Dimensions

Cable Length
32.8 ft.
Wire Size
24 AWG
Length (in)
1.1
Cable Jacket Outer Diameter (in)
0.19
Cable Length (ft)
32.8
Width (in)
0.37

Details

Item
Pico Link Plug Assembly
Jacket Color
Black
IP Rating
IP67
Features
Space Saving Compact Design; Especially Useful In Applications With A High Density Of Inputs And Outputs; Gold-Plated Brass Contacts For Enhanced Corrosion Resistance And Conductivity; Nickel-Plated Brass Coupling Nuts For Enhanced Corrosion Resistance
NEMA Rating
6P
Max. Amps
3A
For Use With
8mm Tubular Proximity Sensors; Miniature Photoelectric Sensors; Flow Sensors; Miniature Modular Controls
Max. Voltage
125VAC/VDC
Temp. Range
-13 Degrees to 194 Degrees F
Body Material
PUR
Coupling Nut Material
Brass
Voltage Rating (AC)
125
Coupling Nut Plating
Nickel Plated
Cable Jacket Material
PVC
Poles
3
Contact Material
Brass, Gold Plated"
Maximum Operating Temperature (F)
194
Connector Style
PicoLink
Minimum Operating Temperature (F)
-13
Cordset Configuration
Straight
Insert Material
PUR
Cable Jacket Color
Black
Voltage Rating (DC)
125
Wire Gauge
24 AWG
Contact Carrier Material
PUR
Current Rating (amps)
3
Contact Resistance (Micro Ohms)
5
O-Ring Material
Nitrile Rubber
Wiring Color Code
Euro CC

Description

Cordset,Pico-Link,PVC,F,3 Pole,32.8 ft.
