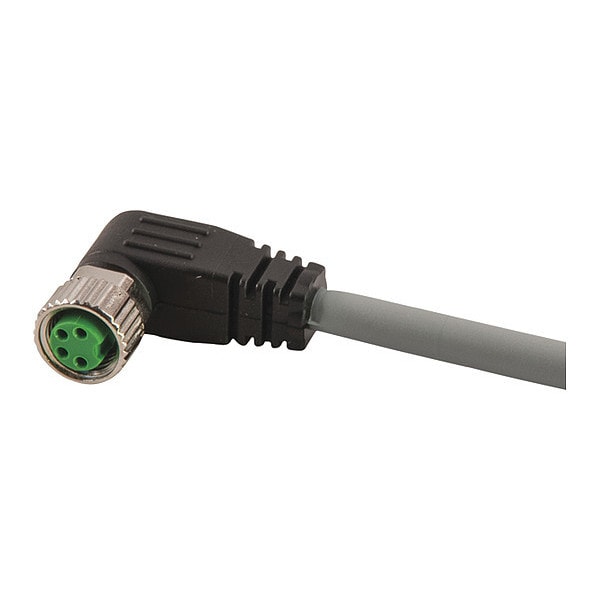

Remke Cordset, Pico-Link, PVC, F, 3 Pole, 32.8 ft. PC03C032811E

Cordset, Pico-Link, PVC, F, 3 Pole, 32.8 ft. (Discontinued)

  • Mfr # PC03C032811E
  • Zoro # G7219471
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PC03C032811E
Zoro #
G7219471
UPC #
785411815190
Country of Origin
Germany

Dimensions

Cable Length
32.8 ft.
Wire Size
24 AWG
Width (in)
0.37
Height (in)
0.98
Length (in)
0.75
Cable Jacket Outer Diameter (in)
0.19
Cable Length (ft)
32.8

Details

Item
Pico Link Plug Assembly
Jacket Color
Black
IP Rating
IP67
Max. Voltage
60VAC/VDC
NEMA Rating
6P
Temp. Range
-13 Degrees to 194 Degrees F
For Use With
8mm Tubular Proximity Sensors; Miniature Photoelectric Sensors; Flow Sensors; Miniature Modular Controls
Features
Space Saving Compact Design; Especially Useful In Applications With A High Density Of Inputs And Outputs; Gold-Plated Brass Contacts For Enhanced Corrosion Resistance And Conductivity; Nickel-Plated Brass Coupling Nuts For Enhanced Corrosion Resistance
Max. Amps
3A
Body Material
PUR
Cordset Configuration
90 Degree
Cable Jacket Color
Black
Insert Material
PUR
Poles
3
Connector Style
PicoLink
Minimum Operating Temperature (F)
-13
Coupling Nut Plating
Nickel Plated
Voltage Rating (DC)
60
Wiring Color Code
Euro CC
Contact Resistance (Micro Ohms)
5
Coupling Nut Material
Brass
O-Ring Material
Nitrile Rubber
Maximum Operating Temperature (F)
194
Current Rating (amps)
3
Wire Gauge
24 AWG
Cable Jacket Material
PVC
Contact Carrier Material
PUR
Contact Material
Brass, Gold Plated"
Voltage Rating (AC)
60

Description

Cordset,Pico-Link,PVC,F,3 Pole,32.8 ft.
