  6. Cordst, Etherlink M12, Shield, Male, 6.6 ft.

This item is Discontinued.

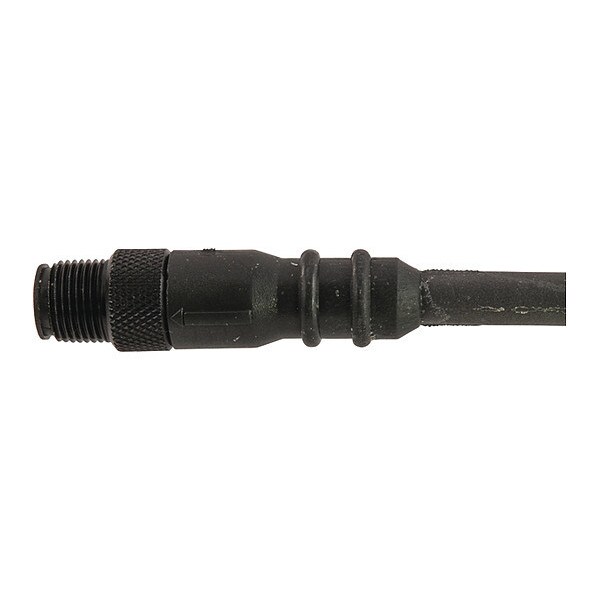

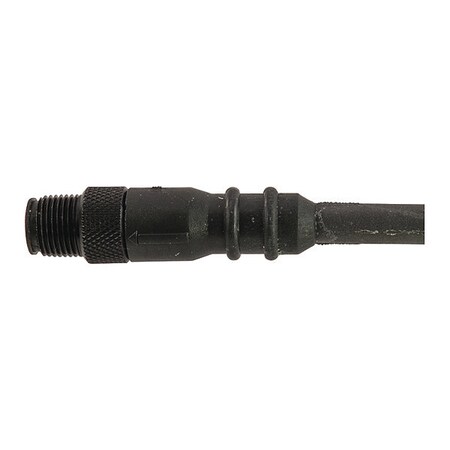

Remke Cordst, Etherlink M12, Shield, Male, 6.6 ft. E04E0066BA5S9

Cordst, Etherlink M12, Shield, Male, 6.6 ft. (Discontinued)

  • Mfr # E04E0066BA5S9
  • Zoro # G7220348
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E04E0066BA5S9
Zoro #
G7220348
UPC #
785411045440
Country of Origin
United States

Dimensions

Cable Length
6.6 ft.
Wire Size
24 AWG
Cable Length (ft)
6.6
Width (in)
0.57
Cable Jacket Outer Diameter (in)
0.32
Length (in)
2.02

Details

Item
Etherlink Connector, Cable Assembly
Jacket Color
Black
IP Rating
IP67
For Use With
Industrial Ethernet Systems; Sensor Connectors; Actuators; Panels And Cabinets; Automation Components
Number of Conductors
4
Max. Amps
4A
Body Material
PVC
Max. Voltage
125VAC/VDC
Features
Single and Double Ended Options Including an RJ45 Cable Assembly; Available in Male and Female; Straight and 90 Degree Configurations; Receptacles Designed for Conventional Threaded Connections to Ensure Reliable Mating
Temp. Range
-4 Degrees to 167 Degrees F
NEMA Rating
6P
Color
White/Orange, White/Green, Orange, Green
Poles
4
Voltage Rating (AC)
125
Cable Jacket Color
Black
Wire Gauge
24 AWG
Insert Material
Nylon
Cable Code
Euro
Wiring Color Code
Ethernet
O-Ring Material
Nitrile Rubber
Voltage Rating (DC)
125
Coupling Nut Material
Aluminum
Contact Material
Brass, Gold Plated Over Nickel"
Cordset Configuration
Straight
Contact Resistance (Micro Ohms)
5
Thread 1
M12X1
Current Rating (amps)
4
Minimum Operating Temperature (F)
-4
Contact Carrier Material
Nylon
Conductor Color 2
White/Green
Conductor Color 3
Orange
Coupling Nut Plating
Black Anodized
cRU Specification
E165657
Connector Style
MicroLink Ethernet
Conductor Color 4
Green
Cable Jacket Material
TPE
Conductor Color 1
White/Orange
Maximum Operating Temperature (F)
167

Description

Cordst,Etherlink M12,Shield,Male,6.6 ft.
