  9. Receptacle, D Key, F, 6 Pole, 1/4" SS, Shell

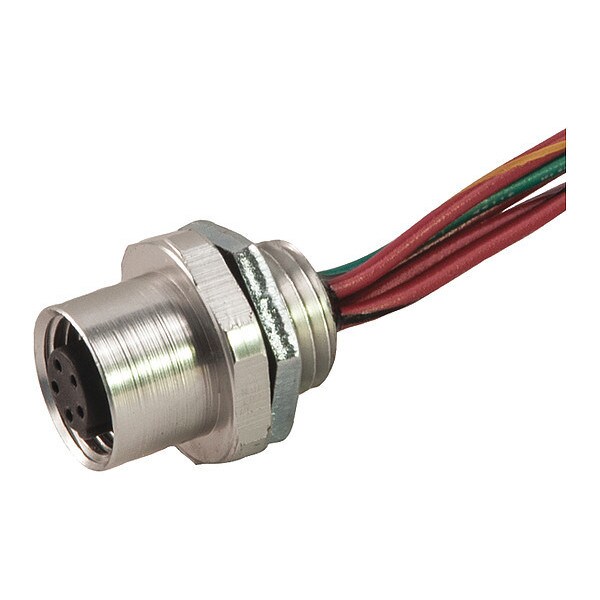

Remke Receptacle, D Key, F, 6 Pole, 1/4" SS, Shell 206S0010P - main

Receptacle, D Key, F, 6 Pole, 1/4" SS, Shell

  • Mfr # 206S0010P

  • Zoro # G7208378

product price: $24.89
/ea
Sold in multiples of 4 for $99.56

Key Features

IP Rating
IP67
Conductor Color 3
Green
Maximum Operating Temperature (C)
80
Minimum Operating Temperature (F)
-4
Thread 2
1/4-18 NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
206S0010P
Zoro #
G7208378
UPC #
-
Country of Origin
United States

Dimensions

Receptacle Lead Length
1
Maximum Knock Out Size (in)
0.57
Length (in)
0.93

Details

Item
Receptacle,D Key,F,6 Pole,1/4" SS,Shell
IP Rating
IP67
Conductor Color 3
Green
Maximum Operating Temperature (C)
80
Minimum Operating Temperature (F)
-4
Thread 2
1/4-18 NPT
Contact Resistance (Micro Ohms)
5
Nema Rating
6P
Shell Material
Machined Aluminum
Maximum Operating Temperature (F)
176
Voltage Rating (DC)
300
Conductor Color 6
Red/Blue
cRU Specification
E165657
Conductor Color 2
Red
Insert Material
Nylon
CSA Specification
E165657
Voltage Rating (AC)
250
Conductor Color 1
Red/White
Locknut Material
Steel
Poles
6
Connector Style
MicroLink Dual Key
Wiring Color Code
Auto CC
Cable Code
Auto
Conductor Color 4
Red/Yellow
Conductor Color 5
Red/Black
O-Ring Material
Nitrile Rubber
Current Rating (amps)
4
Shell Plating
Clear Anodized
Contact Carrier Material
Nylon
Receptacle Lead Jacket Material
PVC
Tab Info
CRT,ROHS,TL APP,Cable Cross,IP Ratings,Cable Jacket Mtl,Knockout Dim,Coupling Nut Mtl
Wire Gauge
22 AWG
Receptacle Configuration
Female Straight
Minimum Operating Temperature (C)
-20
Thread 1
1/2-20 UNF
Contact Material
Brass, Gold Plated Over Nickel"
Cable Strand
26 X #36

Description

Receptacle,D Key,F,6 Pole,1/4 In. SS,Shell
