  11. Receptacle, Etherlink M12, M, 4 Pole, 1 ft.

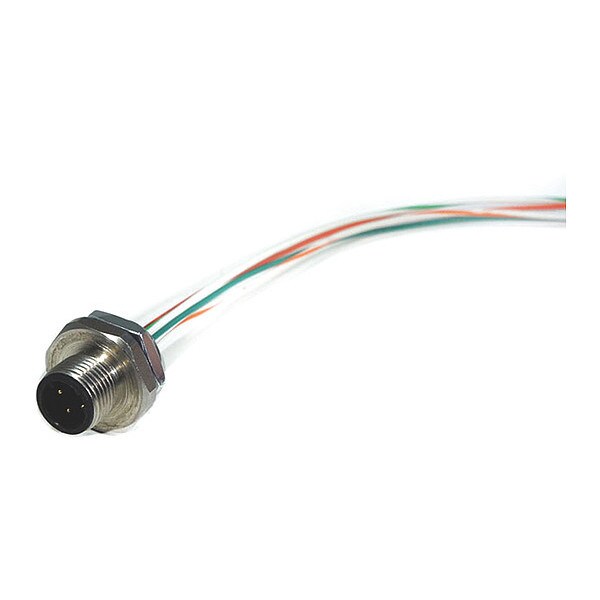

Remke Receptacle, Etherlink M12, M, 4 Pole, 1 ft. E04R0010P24 - main

Receptacle, Etherlink M12, M, 4 Pole, 1 ft.

  • Mfr # E04R0010P24

  • Zoro # G7220217

product price: $15.69
/ea
Sold in multiples of 5 for $78.45

Key Features

Wire Size
24 AWG
IP Rating
IP67
Max. Amps
4 A
For Use With
Industrial Ethernet Systems; Sensor Connectors; Actuators; Panels And Cabinets; Automation Components
Features
Single and Double Ended Options Including an RJ45 Cable Assembly; Available in Male and Female; Straight and 90 Degree Configurations; Receptacles Designed for Conventional Threaded Connections to Ensure Reliable Mating
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E04R0010P24
Zoro #
G7220217
UPC #
-
Country of Origin
United States

Dimensions

Wire Size
24 AWG
Length (in)
0.76
Receptacle Lead Length
1

Details

Item
Etherlink Receptacle
IP Rating
IP67
Max. Amps
4 A
For Use With
Industrial Ethernet Systems; Sensor Connectors; Actuators; Panels And Cabinets; Automation Components
Features
Single and Double Ended Options Including an RJ45 Cable Assembly; Available in Male and Female; Straight and 90 Degree Configurations; Receptacles Designed for Conventional Threaded Connections to Ensure Reliable Mating
Color
White/Orange, White/Green, Orange, Green
Max. Voltage
125VAC/DC
NEMA Rating
6P
Temp. Range
-4 Degrees to 167 Degrees F
Number of Conductors
4
Insert Material
Nylon
Receptacle Lead Jacket Material
PVC
Conductor Color 1
White/Orange
Conductor Color 3
Orange
Minimum Operating Temperature (F)
-4
Conductor Color 2
White/Green
O-Ring Material
Nitrile Rubber
Thread 1
M12X1
Cable Jacket Color
Black
Poles
4
Contact Resistance (Micro Ohms)
5
Wiring Color Code
Ethernet
Contact Material
Brass, Gold Plated Over Nickel"
Locknut Material
Steel
Cable Jacket Material
TPE
Shell Material
Machined Aluminum
Thread 2
1/2-14 NPT
Cable Code
Euro
cRU Specification
E165657
Voltage Rating (AC)
125
Receptacle Configuration
Male Straight
Shell Plating
Black Anodized
Conductor Color 4
Green
Connector Style
MicroLink Ethernet
Voltage Rating (DC)
125
Contact Carrier Material
Nylon
Product Type
M12
Maximum Operating Temperature
167 Degrees F

Description

Receptacle,Etherlink M12,M,4 Pole,1 ft.
