Shop TELEMECANIQUE SENSORS

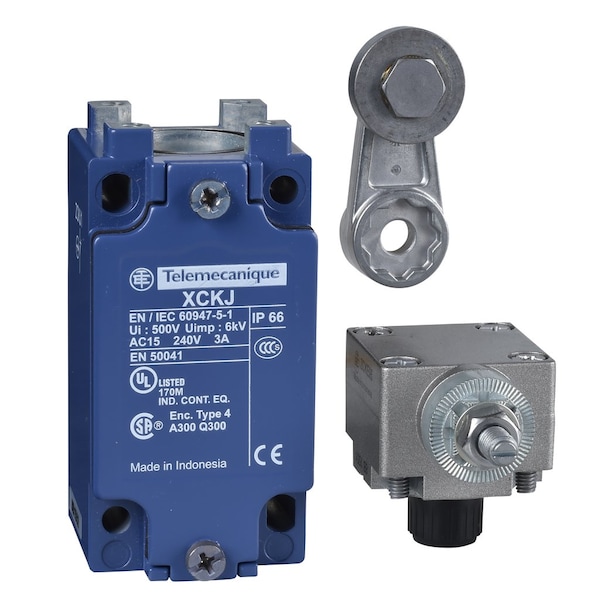

Limit Switch, Roller Lever, Rotary, 1NC/1NO, Actuator Location: Side

  • Mfr # XCKJ10513H7
  • Zoro # G3306439
product price:
$
147.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
Body Material
Zamak
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XCKJ10513H7
Zoro #
G3306439
UPC #
-
Country of Origin
France

Dimensions

Width
40 mm
Body Depth - Limit Switch
44 mm
Body Height - Limit Switch
77 mm
Overall Depth
1.73 in
Actuator Length
1.61 in
Overall Width
1.57 in
Arm Length - Maximum
1.61 in
Overall Height
3.03 in
Manufacturer Warranty Length
18 mo
Body Width
1.57 in
Roller Diameter
0.87 in
Body Depth
1.61 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
Body Material
Zamak
Operating Temp. Range
-25 Degrees to 70 Degrees C
IP Rating
IP66
Movement
rotary
Electrical Connection
Screw Terminal
Series
XC
Certification
CSA || UL || CCC
Special Features
lateral approach, 1 or 2 programmable direction
Standards
CCC, CENELEC EN 50041, CSA C22.2 No 14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60529, IEC 60947-5-1, RoHS, UL 508
Body Style (Limit Switch)
fixed
Head Material
zamak
Actuation Type
by 30° cam
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Short Circuit Protection
10 A cartridge fuse gG
Head Type
rotary head
Min. Actuation Velocity Horizontal
1.5 m/s
Weight
0.49 kg
Mechanical Durability
30000000 cycles
Contact Action
Snap-Action
Number Of Poles
2
Type Of Operator
spring return roller lever metal
Arm Material
Metal
Roller Material
Steel
Arm Adjustability
Fixed
Action
Momentary
Mounting Style
Surface
Operating Temperature - Maximum
158 Degrees F
Number of Mounting Holes
2
Includes Actuator
Actuator Included
AC Contact Rating
3 A @ 240 V
DC Contact Rating
0.27 A @ 250 V
Contact Form
1NO/1NC
Directional Movement
CCW/CW
Body Configuration
Non Plug-In
Roller Position
Front
Operating Torque - Minimum
0.25 N-m
Boot Sealed Actuator
No Boot Included
Actuator Style
Roller-Lever Arm
Lamp Type
No Lamp Module Included
Roller Adjustability
Fixed
Operating Temperature - Minimum
-13 Degrees F

Description

Limit switch XCKJ - steel roller lever -
