  9. 85 gal Commercial Electric Water Heater, Single, Three Phase 57.7 in H

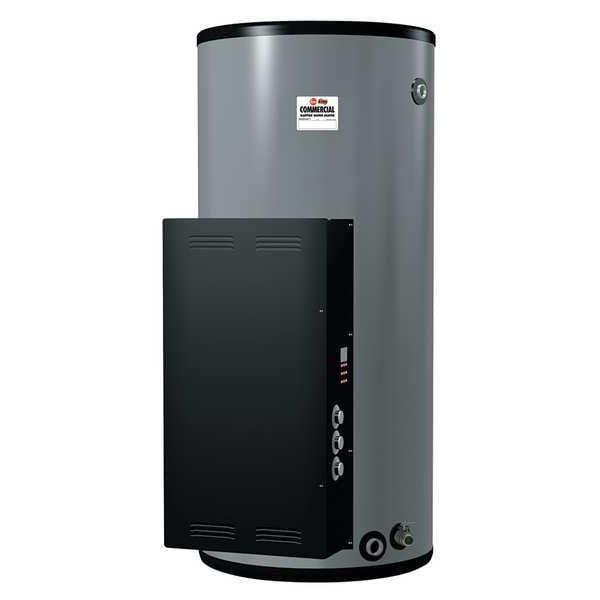

Rheem-Ruud 85 gal Commercial Electric Water Heater, Single, Three Phase 57.7 in H ES85-27-G - main

85 gal Commercial Electric Water Heater, Single, Three Phase 57.7 in H

  • Mfr # ES85-27-G

  • Zoro # G5132111

product price: $7,640.99
/ea
Item requires special delivery charges. A $230.00 per item surcharge will be applied.

Key Features

Commercial / Residential
Commercial
Water Heater Design
Whole House
Tank Capacity
85 gal
Phase
Single, Three
Total Watts
27,000 W
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ES85-27-G
Zoro #
G5132111
UPC #
203524397544
Country of Origin
United States

Dimensions

Overall Height
57.7 in
Jacket Dia.
28 1/4 in
Height to Top of Vent Connection
57.69"
Height to Cold Side Connection
4 3/4 in
Connection Size
3/4"
Overall Width
28.3 in
Height to T and P Opening
49-1/2"
Height to Top of Heater
57.69"
Manufacturers Warranty Length
3 yr Limited Tank, 1 yr Limited Parts
Overall Height - Water Heaters
57 11/16 in
Height to Hot Side Connection
57 11/16 in
Height to T and P Valve
49.5 in
Cold Inlet Size
1 1/2 in
Height to Hot Outlet
57.7 in
Hot Outlet Size
1 1/2 in
Manufacturer Warranty Length
1 yr Limited Parts, 3 yr Limited Tank
Height to Cold Inlet
4.8 in
Tank Diameter
28.25 in
Overall Depth
34 in

Details

Item
Electric Water Heater
Commercial / Residential
Commercial
Water Heater Design
Whole House
Tank Capacity
85 gal
Phase
Single, Three
Total Watts
27,000 W
Standards
AHRI Compliant, ASME, CSA Certified, LWH, UL EPH Listed, UL Listed
Recovery @ 110 F Rise
102 gph
Vent Type
Standard
System of Measurement
Inch
Phase - Water Heaters
1/3
Tank Capacity - Plumbing
85.0 gal
Recovery @ 100 F Rise
112 gph
Features
Inputs of 3KW to 108KW, Four Voltages to choose from, Lifeguard Stainless Steel Elements, 98% Thermal Effeciency, System Sentenal, Full Port/Full Flow Brass Drain Valve
Residential / Commercial
Commercial
Temp. Range
120 Degrees to 180 Degrees F
Number of Elements
6
Industry Type
Commercial
Includes
Brass Drain Valve, Factory-Installed T&P Valve
Recovery @ 70 F Rise
160 gph
Recovery @ 90 F Rise
124.0 gph
Max. Pressure
150 psi
Recovery @ 50 F Rise
223 gph
Recovery @ 120 F Rise
93 gph
Compliance
Exceeds Energy Effeciency Codes of all States. Design Certified by Underwriters Laboratory (UL) to Meet UL Standard 1453 and UL/NSF005., Tested According to DOE Test Procedures and Exceed the Minimum Energy Factor Requirements of Current ASHRAE Standards
Fuel Type
Electric
Water Connection
1-1/2 in NPT
Recovery @ 130 F Rise
86 gph
Item - Water Heaters
Electric Water Heater
Application
Ferrous / Non-Ferrous Metal Over 1/8", S/S Tube, PVC, Cast Pipe and Nail Embedded Wood
Recovery @ 140 F Rise
80 gph
Connection Location
Cold Side/Hot Top
Amps AC
33 for 3 Phase, 56 for 1 Phase
Connection Type
NPT
Voltage - Water Heaters
480
Market
Commercial
Maximum Delivered Temperature
190 Degrees F
Operating Voltage
480V AC
Thermal Efficiency
98 %
Automatic Thermostat
Yes
Thermostat Mounting
Surface
Tank Insulation Material
Polyurethane
Current
56 A
Element Material
Stainless Steel
Maximum Water Pressure
150 psi
Cold Inlet Type
NPT
Equivalent BtuH
92,129 BtuH
Power Consumption
27,000 W
Maximum Recovery Flow Rate
279 gph @ 40 Degrees F
Hot Outlet Type
NPT
Minimum Delivered Temperature
90 Degrees F
Tank Lining Material
Vitreous Glass
Water Connection Location
Side, Top
Included Valves
Temperature and Pressure Relief
Recovery Rate @ Rise
112 gph @ 100 Degrees F, 124 gph @ 90 Degrees F, 140 gph @ 80 Degrees F, 160 gph @ 70 Degrees F, 186 gph @ 60 Degrees F, 223 gph @ 50 Degrees F, 80 gph @ 140 Degrees F, 86 gph @ 130 Degrees F 102 gph @ 110 Degrees F
Product Type
Electric Tank Water Heater

Description

Electric Water Heater, Operating Voltage 480V AC, Phase Single, Three, Equivalent BtuH 92,129 BtuH, First Hour Rating Not Applicable, Maximum Recovery Flow Rate 279 gph @ 40 Degrees F, Overall Height 57.7 in, Power Consumption 27,000 W, Tank Capacity 85 gal, Tank Diameter 28.25 in, Market Commercial, Number of Elements 6, Automatic Thermostat Yes, Cold Inlet Size 1 1/2 in, Cold Inlet Type NPT, Current 56 A, Element Material Stainless Steel, Height to Cold Inlet 4.8 in
