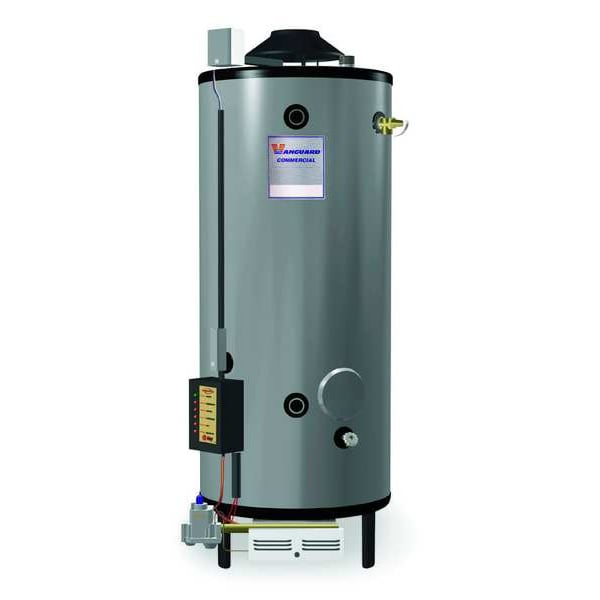

Commercial Gas Water Heater, Natural Gas, 65 gal, 360,000 BtuH, 120V AC, 26-1/4 in Dia.
Mfr # G65-360A
Zoro # G3494294
product price: $12,650.99
/ea
Additional $290.00 delivery surcharge applies per item.
Key Features
Tank Capacity
65 gal
Fuel Type
Natural Gas
BtuH
360,000
Voltage
120V AC
Temp. Range
Upto 180 Degrees F
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
G65-360A
Zoro #
G3494294
UPC #
203524724784
Country of Origin
United States
Dimensions
Jacket Dia.
26 1/4 in
Height to Top of Heater
64 1/2 in
Draft Hood Size
8 in
Manufacturers Warranty Length
Limited 3 yr Tank and 1 yr Parts
Top Water Connection Size
1 1/2 in
Height to Hot Side Connection
58 5/8 in
Height to Gas Connection
7 in
Side Water Connection Size
1 1/2 in
Overall Height - Water Heaters
70 11/16 in
Height to Cold Side Connection
25 in
Height to Top of Vent Connection
70-11/16"
Overall Height
70.69 in
Height to Gas Inlet
7 in
Hot Outlet Size
1 1/2 in
Tank Diameter
26.25 in
Gas Inlet Size
3/4 in
Tank Height
64.5 in
Height to Cold Inlet
25 in
Vent Connection Size
8 in
Height to Hot Outlet
58.62 in
Height to T and P Valve
64.5 in
Manufacturer Warranty Length
3 yr Limited Tank
Description
The RHEEM-RUUD G65-360A is a commercial natural gas water heater with a 65 gallon tank, 360,000 BtuH input, and 120V AC operation. It is designed for commercial hot water service where high output and recovery are needed, with a first hour rating of 395 gallons and recovery performance that varies by temperature rise. The unit uses direct spark to pilot ignition and includes a self-diagnostic system for monitoring operation.
Key Features:
- 65 gal tank capacity: Provides stored hot water capacity for commercial applications.
- 360,000 BtuH input: High heating input for faster water heating and recovery.
- First hour rating of 395 gal: Indicates the amount of hot water the unit can deliver in the first hour of operation.
- Recovery rates: 698 gph at 50°F rise, 499 gph at 70°F rise, 349 gph at 100°F rise, and 249 gph at 140°F rise.
- Natural gas fuel type: Configured for natural gas service.
- 120V AC operation: Requires 120V AC power for operation.
- Temperature range up to 180°F: Minimum delivered temperature is 100°F and maximum delivered temperature is 180°F.
- 160 psi maximum pressure: Maximum working water pressure rating.
- Direct spark to pilot ignition: Electronic ignition method for burner startup.
- Self-diagnostic system: Built-in diagnostic feature for system monitoring.
- 1-1/2 in water connections: Top and side water connection sizes are 1-1/2 inches; connection locations include front, rear, and top.
- 3/4 in gas connection: Gas inlet connection size is 3/4 inch.
- Standard vent with 8 in vent connection: Uses a standard vent type with an 8 inch vent connection and 8 inch draft hood.
- Included valves: Includes a brass drain valve and factory-installed temperature and pressure relief valve.
- Dimensions: Jacket diameter is 26-1/4 inches and overall height is 70-11/16 inches.
- Thermal efficiency: 80%: Indicates the unit's stated thermal efficiency.
