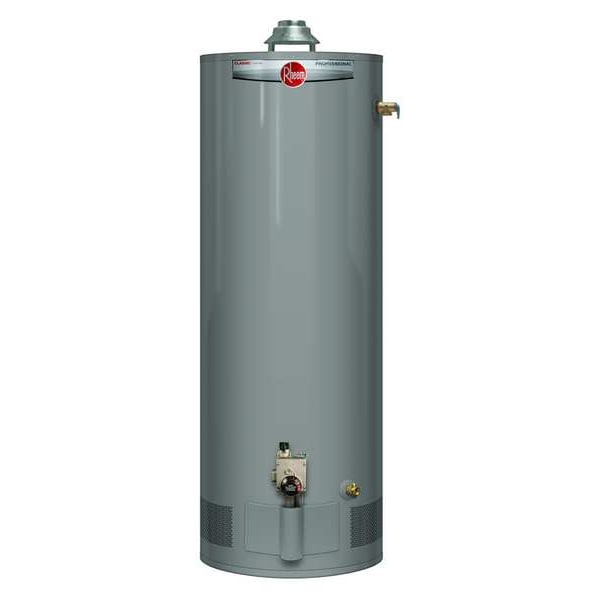

Natural Gas Residential Gas Water Heater, 29 gal., 32,000 BtuH

Mfr # PROG29-32N RH63
Zoro # G9984204

$873.99

Item requires special delivery charges. A $110.00 per item surcharge will be applied.

Free 30-Day Returns

Key Features

Tank Capacity 29 gal
Fuel Type Natural Gas
BtuH 32,000
Temp. Range 80 Degrees to 155 Degrees F
Jacket Dia. 16 1/2 in

See all product information

Brand Rheem
MFR # PROG29-32N RH63
Zoro # G9984204
UPC #
020352641171
Country of Origin United States
Category Gas Water Heaters

Dimensions

Jacket Dia.	16 1/2 in
Height to Top of Heater	56 7/8 in
Draft Hood Size	3 in 4 in
Height to Gas Connection	14 1/4 in
Manufacturers Warranty Length	Limited 6 yr Tank and Parts
Height to Top of Vent Connection	59-3/4"
Overall Height - Water Heaters	59 3/4 in
Top Water Connection Size	3/4 in
Height to Cold Side Connection	56 7/8 in
Height to Hot Side Connection	56 7/8 in
Height to T and P Opening	50 3/4 in
Height to Cold Inlet	56.87 in
Vent Connection Size	3 in; 4 in
Overall Height	59.75 in
Height to T and P Valve	50.75 in
Gas Inlet Size	1/2 in
Height to Gas Inlet	14.25 in
Cold Inlet Size	3/4 in
Tank Diameter	16.5 in
Hot Outlet Size	3/4 in
Tank Height	56.88 in
Manufacturer Warranty Length	6 yr Limited Tank and Parts
Height to Hot Outlet	56.87 in

Details

Tank Capacity	29 gal
Fuel Type	Natural Gas
BtuH	32,000
Temp. Range	80 Degrees to 155 Degrees F
Low Nox Burner	Yes
Vent Type	Standard
Gas Connection	1/2 in
Item	Residential Gas Water Heater
Max. Pressure	150 psi
Commercial / Residential	Residential
Ignition Type	Piezo Igniter
Features	Air/Fuel Shut-Off Device, Protective Control System
Recovery @ 90 F Rise	32.3 gph
Standards	AHRI Certified, LEED Point=1, US CSA (Star)
Uniform Energy Factor	0.63
Top Nipple Spacing	8 in
Item - Water Heaters	Gas Water Heater
Includes	EverKleen Dip Tube
Tank Capacity - Plumbing	29.0 gal
First Hour Recovery - Water Heaters	54 gph
Residential / Commercial	Residential
BtuH - Water Heaters	32,000
Fuel Type - Water Heaters	Natural Gas
Energy Factor	0.6
First Hour Recovery	54 gph
Compliance	ANSI, ASHRAE, ICC Code, Low Lead Compliant, NAECA
Altitude Range	8,400
Maximum Recovery Flow Rate	54 gph @ 40 Degrees F
Water Connection Location	Center
Thermal Efficiency	63 %
Minimum Delivered Temperature	80 Degrees F
Low NOx	Yes
Included Valves	Temperature and Pressure Relief
Maximum Heating Capacity	32,000 BTU/ft/sq ft/hr/ Degrees F
Market	Residential
Recovery Rate @ Rise	32.3 gph @ 90 Degrees F
Maximum Delivered Temperature	155 Degrees F
Maximum Water Pressure	150 psi
First Hour Rating	63 gal
Maximum Altitude	5,999 ft

Description

Residential Gas Water Heater, Fuel Type Natural Gas, Low NOx Yes, First Hour Rating 63 gal, Gas Inlet Size 1/2 in, Maximum Heating Capacity 32,000 BTU/ft/sq ft/hr/ Degrees F, Overall Height 59.75 in, Tank Diameter 16.5 in, Included Valves Temperature and Pressure Relief, Tank Capacity 29 gal, Hot Outlet Size 3/4 in, Maximum Recovery Flow Rate 54 gph @ 40 Degrees F, Market Residential, Vent Type Standard, Cold Inlet Size 3/4 in, Energy Factor 0.6
