  9. Storage Tank, Commercial, 175 gal.
Shop All Storage Tanks
Rheem

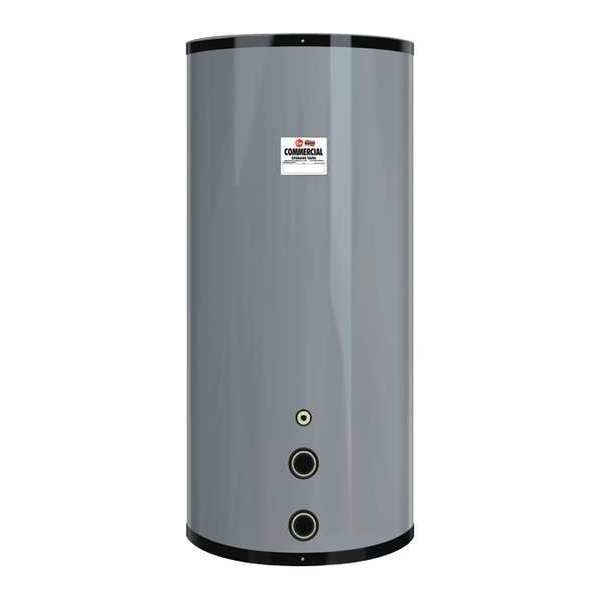

Storage Tank, Commercial, 175 gal.

product price: $5,746.99
/ea
Item requires special delivery charges. A $275.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Tank (Gal.) 175
  • Tank Style Vertical
  • Dia. (In.) 32-1/4
  • Construction Material Steel, Polyurethane Foam Insulation
  • Overall Height 67.25 in
See all product information

Product Information

Dimensions

Dia. (In.) 32-1/4
Overall Height 67.25 in
Height (In.) 67-1/4
Manufacturers Warranty Length 5 yr Limited Tank Warranty
Tank Height 67.25 in
Inlet Connection Size 2 1/2 in
Tank Diameter 32.25 in
Manufacturer Warranty Length 5 yr

Details

Item Storage Tank
Tank (Gal.) 175
Tank Style Vertical
Construction Material Steel, Polyurethane Foam Insulation
Color Gray
Precharge Pressure (PSI) 150
Inlet/Outlet NPT (In.) 2-1/2 M
Agency Compliance ASME
Inlet Distance (In.) 12-9/16
Compliance Certified to Boiler and Pressure Vessel Code Standards
Outlet Distance (In.) 61-1/4
Standard Tank Equivalent (Gal.) 175
Type COMMERCIAL
Pump Mount None
Max. Working Pressure (PSI) 150
Standards ASME
Tank Type Pressurized
Features 2 in Insulation
Tank Material Steel
Tank Capacity 175 gal
Tank Orientation Vertical
Tank Insulation Material Polystyrene
Tank Outer Shell Material Steel
Maximum Operating Pressure 150 psi
Inlet Connection Type NPT
Tank Lining Material Ceramic
Tank Outer Shell Finish Porcelain Enamel
Water Connection Location Front, Side, Top
Market Commercial

Description

Storage Tank, Inlet Connection Size 2 1/2 in, Inlet Connection Type NPT, Maximum Operating Pressure 150 psi, Tank Diameter 32.25 in, Tank Height 67.25 in, Tank Insulation Material Polystyrene, Tank Lining Material Ceramic, Tank Material Steel, Tank Outer Shell Material Steel, Water Connection Location Front, Side, Top, Color Gray, Features 2 in Insulation, Manufacturer Warranty Length 5 yr, Market Commercial, Overall Height 67.25 in, Standards ASME, Tank Capacity 175 gal
