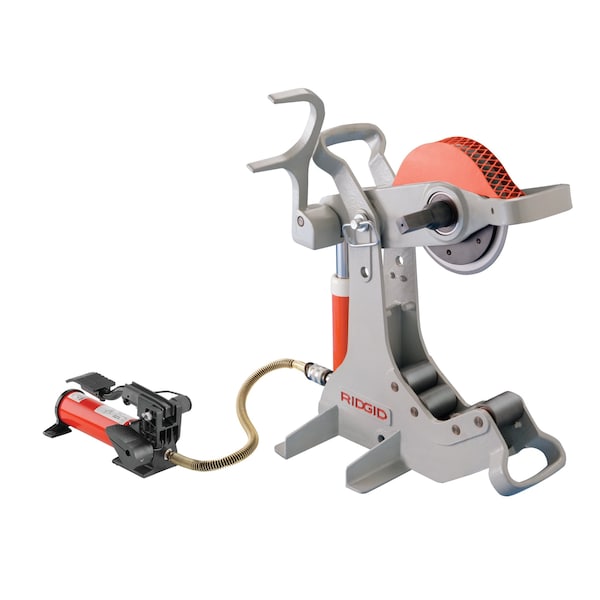

Pipe Cutter 2-1/2 In to 8 In Electric Model 258

  • Mfr # 50767

  • Zoro # G1478495


product price: $4,282.99
/ea
Item requires special delivery charges. A $140.00 per item surcharge will be applied.

Key Features

Overall Length
22.5 in
Minimum Compatible Pipe Size
2 1/2 in
Maximum Compatible Pipe Size
8 in
Voltage
115
Includes
(2) Ball Transfer Pipes, 8 1/2 in Heavy-Duty Cutter Wheel Assembly, Hydraulic Foot Pump, 15/16 in Square Drive Adapter
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
50767
Zoro #
G1478495
UPC #
095691507679
Country of Origin
United States

Dimensions

Overall Length
22.5 in
Minimum Compatible Pipe Size
2 1/2 in
Maximum Compatible Pipe Size
8 in
Overall Width
11.9 in
Minimum Compatible Tubing Size
2.5 in
Maximum Compatible Tubing Size
8 in
Dedupe to Minimum Compatible Pipe Size and Maximum Compatible Pipe Size
2-1/2 in to 8 in

Details

Item
Pipe Cutting Machine
Voltage
115
Includes
(2) Ball Transfer Pipes, 8 1/2 in Heavy-Duty Cutter Wheel Assembly, Hydraulic Foot Pump, 15/16 in Square Drive Adapter
Features
Cuts by Displacing Instead of Removing Pipe Material, Heavy-Duty Design for Field or Shop Use, No Abrasive Dust Sparks or Open Flame, Cuts Steel Pipe with Minimal Burr
Tool Series
258
Machine Capacity
Pipe 2-1/2 in to 8 in
Switch Type
On/Off Toggle
Characteristics
Need Power Drive to Operate (not included)
Functions With
Pipes
Phase
Single-Phase
Application
Pipe Cutting
Tool Weight
105 lb
Compatible Threader Series
Ridgid 700 Power Drive
Horsepower
1/2 hp
Kit Contents
Bare Tool
Number of Speeds
1
Reversible
No
Power Drive Required
Yes
Frequency
60 Hz
Compatible Pipe Schedule
10, 40
Current
20 A
Compatible Material Type
Steel
Power Source
Power Drive Required
Free Speed
30 RPM

Description

The RIDGID Model 258 Power Pipe Cutter cuts 2 1⁄2" (65 mm) to 8" (200 mm) schedule 10*/40 steel pipe, galvanized pipe, rigid conduit, etc. at the job site or in the shop. Powered by the RIDGID No. 700 Power Drive, the 258 is a displacement cutter that provides square cuts. The operator controls the feeding rate by pumping the hydraulic foot pump throughout the operation. A square cut with minimal burr on either 21 ft (6m) or nipple lengths of pipe is achieved quickly** without abrasive dust, sparks, or open flame. Also, the RIDGID Pipe Roller for beveling can be used to rotate the pipe while second operator uses a grinder to bevel the pipe.

Features:

  • • Square cut 21ft (6m) or nipple lengths of pipe without effort.
  • Cuts by displacing instead of removing pipe material.
  • No abrasive dust, dangerous sparks, or open flame.
  • Quickly cuts steel pipe with minimal burr.
  • Heavy-duty design is perfect for field or shop use.
  • Adaptable for beveling.
