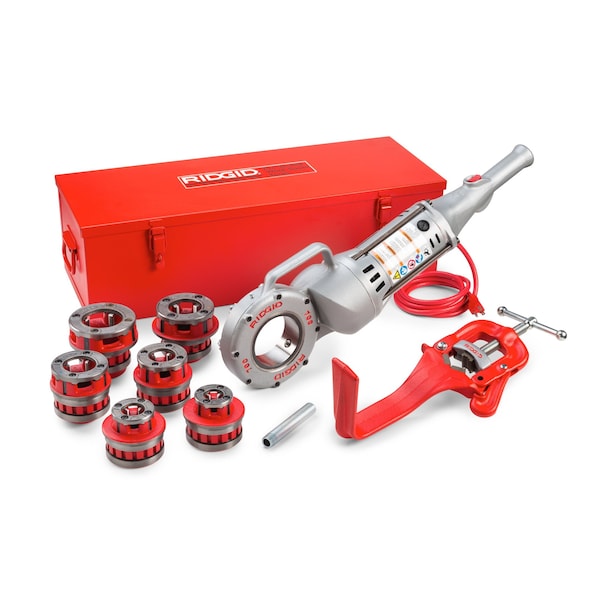

Pipe Threading and Cutting Machines, 1/8 in to 2 in, Rod: 1/4 in to 1 in Bolt: 1/4 in to 1 in
Mfr # 45178
Zoro # G5477221
Key Features
Specifications
Product Information
- MFR #
- 45178
- Zoro #
- G5477221
- UPC #
- 095691451781
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 28.25 in
- Minimum Compatible Pipe Size
- 1/8 in
- Maximum Compatible Pipe Size
- 2 in
- Bolt Size
- 1/4 in to 1 in
- Rod Size
- 1/4 in to 1 in
- Overall Width
- 4 in
- Overall Height
- 7.82 in
- Die Head Sizes
- 1/2 in to 2 in
- Minimum Bolt Size
- 1/4 in
- Maximum Bolt Size
- 1 in
- Dedupe to Minimum Compatible Pipe Size and Maximum Compatible Pipe Size
- 1/8 in to 2 in
- Die Head Sizes Included
- 1/2 in, 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, 2 in
- Wire Rope Length
- 28.25 in
- Length
- 28.25 in
Description
The RIDGID 45178 is a handheld electric pipe threading machine for threading pipes and bolts within the specified diameter and bolt-size ranges. Its universal motor rated at 1/2 hp and 36 RPM single speed supports right-hand and left-hand threading when operated with the double-throw reversible switch. The machine is powered by a 120 V corded power source and rated for operation on single-phase 60 Hz power. Cast aluminum housing for handheld operation and includes six NPT-compatible die heads: 1/2 in, 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, and 2 in.
Key Features:
- Portable handheld power drive; weight: 25 lb; dimensions: 28.25 in (L) x 4 in (W) x 7.82 in (H) (as stated).
- Includes six die heads (1/2", 3/4", 1", 1 1/4", 1 1/2", 2") and a support arm in a carrying case.
- Motor type: Universal, with 1,500 W power output and 1/2 hp horsepower.
- Reversible operation using a double throw reversible switch.
- Gear-type pump and hammer chuck as component parts used in the threading mechanism.
- Thread standard of included dies is NPT, for use with NPT thread form die heads (NPT-compatible die heads included).
