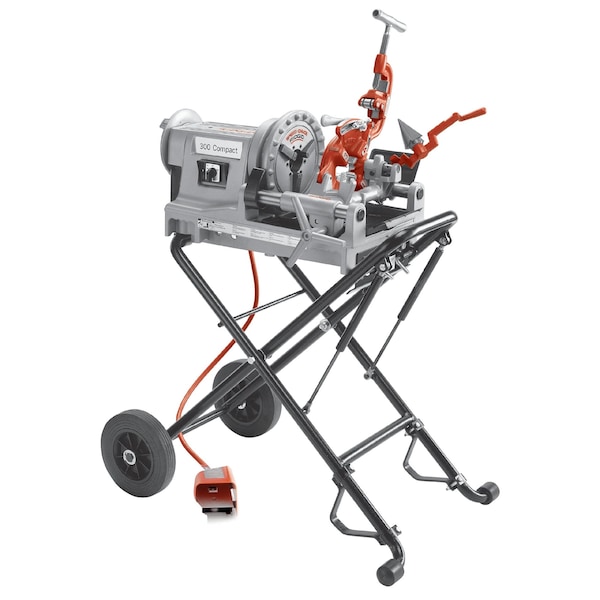

Pipe Threading and Cutting Machines, 1/8 in to 2 in, Rod: 1/4 in to 2 in Bolt: 1/4 in to 2 in

  • Mfr # 67182

  • Zoro # G1940863


product price:  $8,447.99
/ea
Item requires special delivery charges. A $230.00 per item surcharge will be applied.

Key Features

Overall Length
12 in
Minimum Compatible Pipe Size
1/8 in
Maximum Compatible Pipe Size
2 in
Voltage
115 V
Includes
Reamer, Full Floating Self Centering Cutter, 5/32 in Hex Key, 3/16 in Hex Key, 5/16 in Hex Key, Stand, Nu-Clear Oil, NPT Die Head
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
67182
Zoro #
G1940863
UPC #
095691671820
Country of Origin
United States

Dimensions

Overall Length
12 in
Minimum Compatible Pipe Size
1/8 in
Maximum Compatible Pipe Size
2 in
Overall Width
13 in
Rod Size
1/4 in to 2 in
Bolt Size
1/4 in to 2 in
Die Head Sizes
1/2 in to 2 in
Minimum Bolt Size
1/4 in
Maximum Bolt Size
2 in
Dedupe to Minimum Compatible Pipe Size and Maximum Compatible Pipe Size
1/8 in to 2 in

Details

Item
Power Threading Machines
Voltage
115 V
Includes
Reamer, Full Floating Self Centering Cutter, 5/32 in Hex Key, 3/16 in Hex Key, 5/16 in Hex Key, Stand, Nu-Clear Oil, NPT Die Head
Features
Adjustable Oil Low Control
Tool Series
300
Switch Type
Forward/Off/Reverse and Integral Foot Switch
Capacity
1/2 in
Standards
CSA Certified, NRTLC, UL Listed
Phase
Single-Phase
Characteristics
Self-Contained Through-the-Head Oil System with Adjustable Flow Control and Integral Oil Reservoir
Through-the-Head Oiling
Yes
Frequency
60 Hz
Chuck Type
Hammer-type with replaceable, rocker-action jaw inserts
Plug Type
Three-Prong
Machine Type
Stationary Power Threading Machine
Number of Die Heads
1
Free Speed
36 RPM
Pump Type
Self-Priming Constant Flow Gerotor
Power Source
Corded
Reversible
Yes
Motor Type
Standard
Number of Speeds
1
Kit Contents
Bare Tool
Current
15 A
Horsepower
1/2 hp
Thread Standard of Included Dies
NPT
Tool Weight
160 lb
Pipe Capacity
1/8" - 2"
Motor Control
Heavy-duty rotary forward/off/reverse and integral foot switch
Bolt Capacity
1/4" - 2"

Description

Portable Pipe Threading Machine, Maximum Compatible Pipe Size 2 in, Minimum Compatible Pipe Size 1/8 in, Motor Type Standard, Horsepower 1/2 hp, Number of Speeds 1, Free Speed 36 RPM, Tool Series 300, Includes Reamer, Full Floating Self Centering Cutter, 5/32 in Hex Key, 3/16 in Hex Key, 5/16 in Hex Key, Stand, Nu-Clear Oil, NPT Die Head, Voltage 120 V, Phase Single-Phase, Chuck Type Manual, Through-the-Head Oiling Yes, Thread Standard of Included Dies NPT, Maximum Bolt Size 2 in
