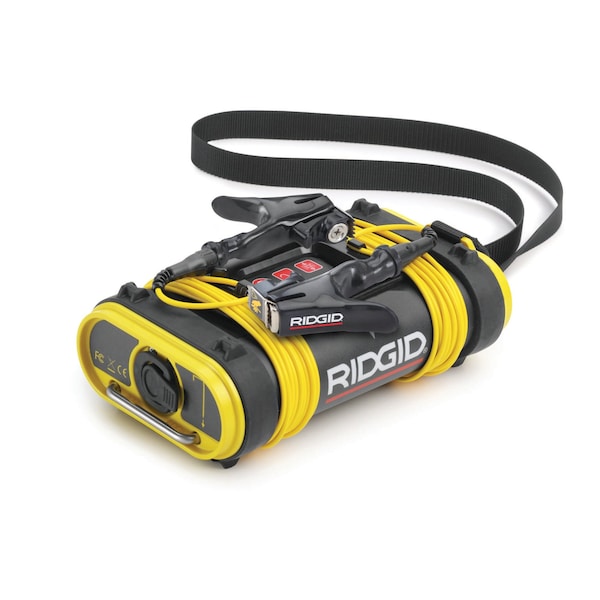

Ridgid Transmitter, Yellow, LED, 1, 8, 33 kHz 21898 - main

Transmitter, Yellow, LED, 1, 8, 33 kHz

  • Mfr # 21898

  • Zoro # G2159096

product price:  $1,398.99
/ea
Free Shipping & Returns

Key Features

Includes
(2) 10 ft Coil Connectors, Shoulder Strap
Features
Direct Connect Using Attached Clips, Induction from Optional Inductive Signal Clamp and Transmitter Coils
Operating Frequency
1 kHz, 33 kHz, 8 kHz
Power Source
Battery
For Use With
Mfr. No. SR-20/21893 and Mfr. No. SR-60/22163
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
21898
Zoro #
G2159096
UPC #
095691218988
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
Limited Lifetime
Battery Size
C
Manufacturer Warranty Length
Limited Lifetime

Details

Item
Utility Line Signal Transmitter
Includes
(2) 10 ft Coil Connectors, Shoulder Strap
Features
Direct Connect Using Attached Clips, Induction from Optional Inductive Signal Clamp and Transmitter Coils
Operating Frequency
1 kHz, 33 kHz, 8 kHz
Power Source
Battery
For Use With
Mfr. No. SR-20/21893 and Mfr. No. SR-60/22163
Transmitter Power
5 W
Color
Yellow
Display
LED
Max. Open Circuit Voltage
240
Powered By
(6) C-Cell Batteries
CAT Safety Rating
Not Rated
Display Screen Type
LED
Transmitter Power Output
5 W
For Locating
Energized Lines
Display Type
Digital
Circuit Connection Type
Direct, Induction
For Circuit Type
Energized
Includes Batteries
Yes
Testing Modes
Active, Passive
Line Trace Frequencies
10 Hz to 490 kHz
Locator Type
Utility Line Signal Transmitter
Number of Batteries Required
6
Induction
1 kHz, 8 kHz, 33 kHz, 262 kHz.*
Direct Connect
1 kHz, 8 kHz, 33 kHz, 262 kHz.*
Alert Type
Audible
IP Rating
Not Rated

Description

Transmitter, Transmitter Power 5 W, Operating Frequency 1, 8, 33 and 262 K Hz, Max. Open Circuit Voltage 240 VAC, 50/60 Hz, For Use With 1DPH2 (SR-20 Locator), Display LED Lights Indicate Transmitted Frequency, Powered By 6 C-Cell Batteries, Includes Two 10 Ft Coil Connectors, Batteries, Shoulder Strap and Instructions
