Shop KLEIN TOOLS

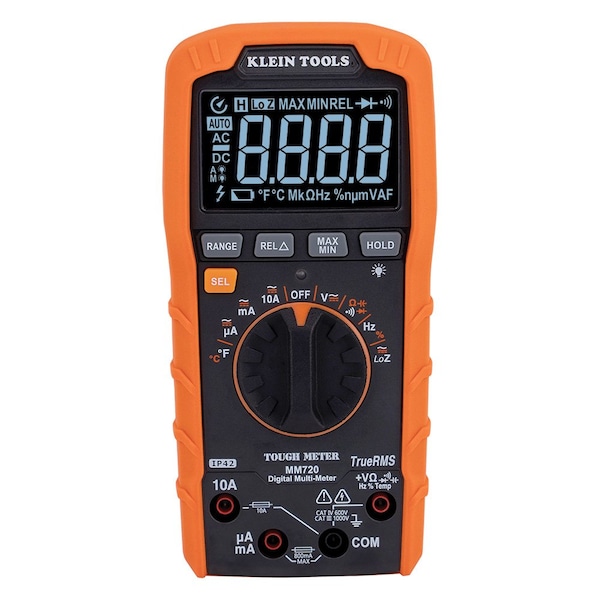

Digital Multimeter, 1,000 V Max DC, TRMS, 6,000 Instrument Counts, LCD

  • Mfr # MM720

  • Zoro # G905671388

product price:
$
99.97
/ea

Key Features

Display Type
LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
Batteries, Carrying Case, Test Leads, Thermocouple
Standards
CE, cETLus, UKCA Certified
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MM720
Zoro #
G905671388
UPC #
092644693762
Country of Origin
China

Dimensions

Overall Height
1.88 in
Depth
6.94 in
Length
6.94 in (17.6 cm)
Overall Width
3.37 in
Battery Size
AAA

Details

Item
Digital Multimeter
Display Type
LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
Batteries, Carrying Case, Test Leads, Thermocouple
Standards
CE, cETLus, UKCA Certified
Auto Power Off
Yes
Audible Continuity
Yes
Diode Test
Yes
Source Voltage
1000V AC/DC
Calibration Certificate Included
No Certification Included
Special Features
Auto-Range, High-Visibility Display with Optical Sensor, Low Impedance (LoZ) Mode, Min/Max/Relative
Type
Digital Multimeter
Source Current
10A AC/DC
Color
Orange/Black
Temp. Range
-40° to 1832°F (-40° to 1000°C)
Fitting Material
ABS, Electrical Components
Measurement Functions
Measures up to 1000 VAC/DC Voltage, 10A AC/DC Current, 60MΩ Resistance, Temperature, Capacitance, Frequency, Duty-Cycle, Diodes, and Continuity
Intrinsically Safe
No
Duty Cycle
Duty Cycle Test Included
Auto Ranging
Yes
Features
High-Visibility Display with Optical Sensor; Auto-Range; Min/Max/Relative; Low Impedance (LoZ) Mode; Auto Power-Off; Data Hold
Frequency Range (Hz)
1 Hz - 500 KHz
Calibration Certificate
Not Included
Instrument Safety Rating
CAT III 1000V, CAT IV 600V
Weight
12.2 oz
Application
Testing and Measuring Voltage
Drop Protection
6.6' (2 m)
Basic DC Current Accuracy
+/-(1.0% + 3 digits)
Maximum DC Voltage Measurement
1,000 V
Waterproof
No
Basic AC Voltage Accuracy
+/-(1.0% + 3 digits)
Bluetooth Compatible
No
Dustproof
No
Removable Screen
No
Basic AC Current Accuracy
+/-(1.0% + 5 digits)
Current Leakage Testing
No
Maximum AC Current Measurement
10 A
AC Response Calculation
TRMS
Maximum AC Voltage Measurement
1,000 V
Thermal Imaging
No
Maximum Temperature Measurement
1,832 Degrees F
Style
Full Size
Multimeter Features_Filter_BACKGROUND
MM720
Maximum Frequency Measurement
500 kHz
Multiple On-Screen Displays
Yes
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Diode, Resistance
Maximum Resistance Measurement
60 megaohm
Temperature Measurement Accuracy
+/-(1.2% + 6 Degrees F)
Capacitance Measurement Accuracy
+/-(3.0% + 5 digits)
MERCH HOLD - DMM Features
No No No No No No No IP42
Safety Rating_BACKGROUND
MM720 CAT IV 600V
Battery Access
Yes
Resistance Measurement Accuracy
+/-(1.2% + 5 digits)
MERCH HOLD ACCURACY
+/-(0.5% + 5 digits) +/-(1.0% + 3 digits) +/-(1.0% + 3 digits) +/-(1.0% + 5 digits) +/-(3.0% + 5 digits) +/-(1.0% + 5 digits) +/-(1.2% + 6 Degrees F) +/-(1.2% + 5 digits)
Frequency Measurement Accuracy
+/-(1.0% + 5 digits)
Fuse Access
Yes
Minimum Temperature Measurement
-40 Degrees F
Safety Rating_SUBHEAD
CAT III 1000V
Maximum DC Current Measurement
10 A
Basic DC Voltage Accuracy
+/-(0.5% + 5 digits)
Batteries Included
Yes
Battery Chemistry
Alkaline
Capacitance Measurement Resolution
6,000 uF
FEATURES HOLD_MERCH
LCD Yes Yes
IP Rating
IP42
Data Logging
No
Minimum DC Current Measurement
0.1 uA
Minimum AC Voltage Measurement
1 mV
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
Voltage Units
mV, V
Minimum DC Voltage Measurement
0.1 mV
Includes Auto Sensing
No Auto Sensing Included
Minimum Resistance Measurement
1 kiloohm
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Current Units
A, mA, uA
Minimum AC Current Measurement
0.1 uA

Description

Klein Tools MM720 Multimeter is an automatically ranging true root mean squared (TRMS) digital multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, diodes and continuity. It features a high visibility, reverse contrast LCD display to automatically optimize readability in dark or bright ambient lighting.


  • High visibility, reverse contrast display automatically optimizes readability in dark or bright ambient lighting
