  9. Axial Fan, Square, 115V AC, 1 Phase, PBT Plastic, 8 in W.
This item is Discontinued.

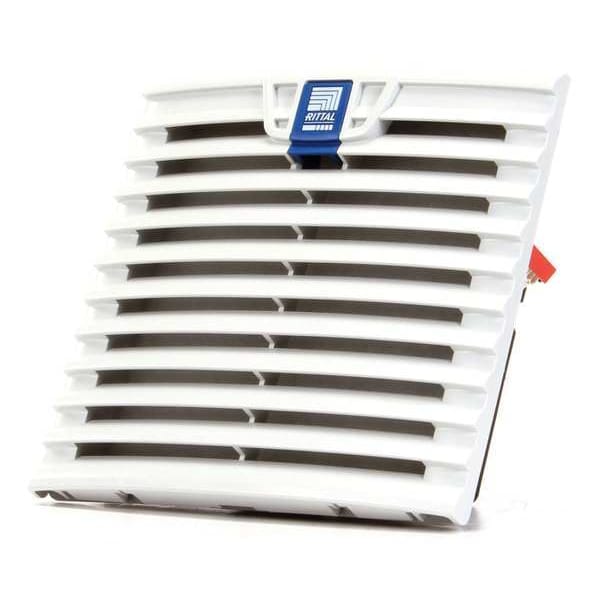

Rittal Axial Fan, Square, 115V AC, 1 Phase, PBT Plastic, 8 in W. 3239110

Axial Fan, Square, 115V AC, 1 Phase, PBT Plastic, 8 in W. (Discontinued)

  • Mfr # 3239110
  • Zoro # G4033443
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3239110
Zoro #
G4033443
UPC #
639889858312
Country of Origin
China

Dimensions

Depth
4 1/2 in
Height
8 in
Width
8 in
Fan Width
8"
Fan Height
8"
Fan Depth
4-1/2"
Fan Width
8"

Details

Blade Material
Steel
CFM @ 0.000-In. SP
39 cfm
Housing Material
PBT Plastic
Phase
1
Shape
Square
Watts
19/18 W
Voltage
115V AC
Mounting Position
Vertical or Horizontal
Amps
0.24/0.22 A
Electrical Connections
Terminals
Fan Watts
18.0/19.0
Fan Voltage
115VAC
Bearings
Ball
Motor Insulation
Class B
Mounting Eye O.C. - Fans
7"
dBA
46/49
Item
Axial Fan
Housing Finish
Light Gray (RAL 7035)
Electrical Connection - Fans
Terminals
Max. Ambient Temp.
131 Degrees F
Thermal Protection
Impedance
Fan dBA
46/49
Standards
UL and CUL Recognized, CE, Type 12 Rated, IP 54 (Standard), NEMA 12, CURus, UR, CSA, CCC, EN 60 529/09.2000
Motor Type
Self Starting Shaded Pole
Fan Shape
Square
Hz
50/60 Hz
Fan Item
Axial Fan
Mounting Eye O.C.
7 in
Requires
Hard Wiring
IP Rating
IP54
Environmental Applications
Equipment Cooling
Fan Mounting Location
Enclosure
Bearing Type
Ball

Description

Wet-Location Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 7 in, Height 8 in, Depth 4 1/2 in, Width 8 in, CFM @ 0.000-In. SP 39 cfm, Watts 19/18 W, Voltage 115V AC, 50/60 Hz Hz, 0.24/0.22 A Amps, Electrical Connection - Fans Terminals, IP Rating IP54, Fan Mounting Location Enclosure, Mounting Position Vertical or Horizontal, Bearing Type Ball, Motor Insulation Class B, Thermal Protection Impedance, Max. Ambient Temp. 131 Degrees F, Blade Material Steel, Housing Material PBT Plastic
