  11. Digital Wall Thermostat, White, 1" D

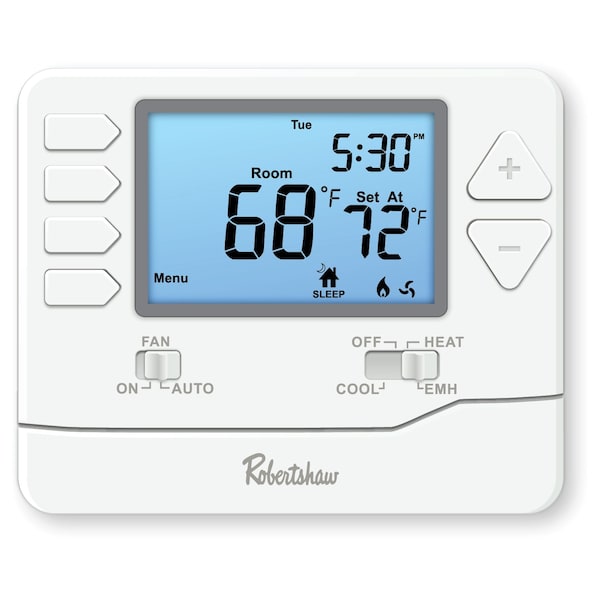

Robertshaw Digital Wall Thermostat, White, 1" D RS9210 - main

Digital Wall Thermostat, White, 1" D

  • Mfr # RS9210

  • Zoro # G701701838

product price: $65.29
/ea

Key Features

Voltage
18 to 30V AC
Dual Transformer Compatible
Yes
Temporary Temperature Hold
Yes
Low Battery Indicator
Yes
Includes
Batteries
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RS9210
Zoro #
G701701838
UPC #
-
Country of Origin
China

Dimensions

Overall Height
3 13/16 in
Overall Width
4 11/16 in
Screen Height
4 5/8 in
Overall Depth
1 in
Digit Size
Large/Easy Read
Screen Width
4 5/8 in

Details

Item
Digital Wall Thermostat
Voltage
18 to 30V AC
Dual Transformer Compatible
Yes
Temporary Temperature Hold
Yes
Low Battery Indicator
Yes
Includes
Batteries
Terminal Designations
B, C, G, O, R, W/E, W2, Y
Temporary Program Override
Yes
Key Pad Lockout
No
Temperature Limiting
No
Display Type
Digital
Stages
2H/1C
Control Type
Push Button
Battery Backup
Yes
Standards
ISO-9001 Certified
Humidification Control
No
Dehumidification Control
No
Application
Heat or Cool
Includes Positive Off
Yes
Shape
Square
Frequency
5/6 Hz
Filter Change Reminder
Yes
Requires C-Wire
No
Temperature Sensitivity
+/-1.0 Degrees F
Differential Cool
0.2 Degrees F, 2 Degrees F
Backlit Type
5 Seconds
Application/Stages
Heat and Cool/3
Wireless
Yes
Includes Batteries
Yes
Temperature Differential
+/-0.2 to 2.0 Degrees F
Differential Heat
0.2 Degrees F, 2 Degrees F
Maximum Control Temperature
90 Degrees F
Minimum Operating Temperature
41 Degrees F
Electrical Connection Type
Hardwired/Battery
System Settings
Heat-Cool-Off
Backlit Screen Color
Blue
Changeover Type
Manual
Number of Heating Stages - Conventional System
2
Wireless System Compatibility
No
Temperature settings per day
4
Number of Heating Stages - Heat Pump System
2
Smart Connectivity
No Connectivity
Battery Type
(2) AAA Batteries
Temperature Scale
Fahrenheit/Celsius
Operating Temperature Range
41 Degrees to 95 Degrees F
Programming Capability
5-1-1, 7-Day, Not Programmable
Compatible System Type
Heat Pump without Aux
Number of Cooling Stages - Conventional System
1
Number of Cooling Stages - Heat Pump System
1
Number of Zones
1
Fan Settings
Auto-On
Mounting Direction
Horizonal
Temperature Readout
Yes
Sensor Location
Built-In
Maximum Operating Temperature
99 Degrees F
Housing Color
White
Maximum Operating Humidity
90 %
Temperature Control Range
44 Degrees to 90 Degrees F
Millivolt Compatible
Yes
Differential Type
Adjustable
Minimum Control Temperature
44 Degrees F
Backlit Screen
Yes

Description

Digital Wall Thermostat, Terminal Designations B, C, G, O, R, W/E, W2, Y, Display Type Digital, Key Pad Lockout No, Humidification Control No, Dehumidification Control No, Temporary Program Override Yes, Temporary Temperature Hold Yes, Temperature Limiting No, Battery Backup Yes, Low Battery Indicator Yes, Dual Transformer Compatible Yes, Voltage 18 to 30V AC, Mounting Type Surface Mount, Mounting Location Junction Box, Wall, Includes Batteries
