  5. Gas Valve, NG/LP, Standing Pilot, 24 V, 3.5 in wc, Slow Opening, 0.2 A, -40 to 175 Degrees F

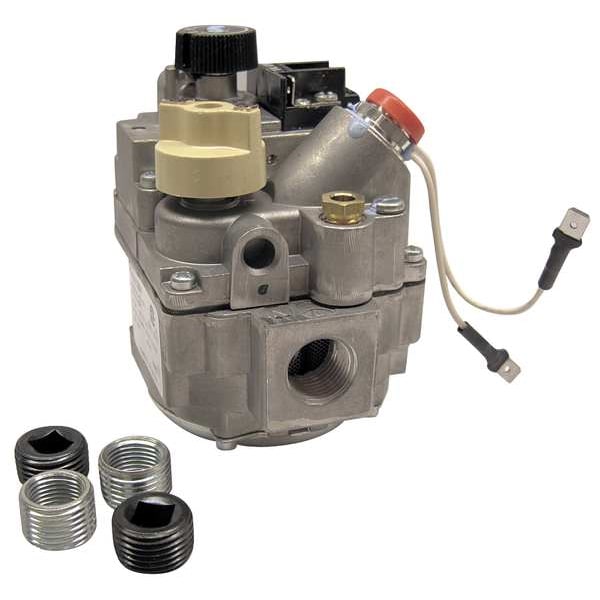

Robertshaw Gas Valve, NG/LP, Standing Pilot, 24 V, 3.5 in wc, Slow Opening, 0.2 A, -40 to 175 Degrees F 700-434 - main

Gas Valve, NG/LP, Standing Pilot, 24 V, 3.5 in wc, Slow Opening, 0.2 A, -40 to 175 Degrees F

  • Mfr # 700-434

  • Zoro # G3336331

product price:  $208.99
/ea
Free Shipping & Returns

Key Features

BtuH Capacity
100,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Standing Pilot
Inlet Size
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
700-434
Zoro #
G3336331
UPC #
662013632380
Country of Origin
Mexico

Dimensions

Inlet Size
1/2 in
Outlet Size
1/2 in
Port Connection Size
1/2 in
Pilot Port Connection Size
1/4 in

Details

BtuH Capacity
100,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Standing Pilot
Valve Type
Slow Opening
Amps AC
0.2 A
Ambient Temp. Range
-40 to 175 Degrees F
Item
Gas Valve
LP Conversion Kit
No
Pressure Setting Range
3.5 in wc
Flow Direction
Straight-Thru
Inlet Pressure Tap
Yes
Side Taps
Yes
Includes Thermostat
Mechanical Thermostat Not Included
Current
0.018 A
Pilot Port Connection Type
Compression
Operating Temperature - Maximum
175 Degrees F
Includes Pressure Regulator
Pressure Regulator Included
Sensing Type
Flame Sensor
Includes Pilot Generator Kit
Pilot Generator Kit Not Included
Electrical Connections
Screw/Spade Terminal
Manufacturer Series
700
Port Connection Gender
Female
Includes Conversion Kit
Conversion Kit Included
Pilot Type
Standing Pilot
Valve Design
Single
Port Connection Type
NPT
Voltage
24V AC
Opening Characteristic
Slow Opening
Operating Temperature - Minimum
-40 Degrees F
Reducer Bushings Included
None
For Media
Liquid Propane, Natural Gas
Heating Capacity - Maximum
100,000 BtuH
Includes Side Taps
Side Taps Included
Installation Orientation
Versatile
Includes On/Off Switch
On/Pilot/Off Switch Included
Includes Pressure Tap
Pressure Tap Inlet Included

Description

Gas Valve, Current 0.018 A, Electrical Connections Screw/Spade Terminal, Flow Direction Straight-Thru, For Media Liquid Propane, Natural Gas, Heating Capacity - Maximum 100,000 BtuH, Includes Conversion Kit Conversion Kit Included, Includes On/Off Switch On/Pilot/Off Switch Included, Includes Pilot Generator Kit Pilot Generator Kit Not Included, Includes Pressure Regulator Pressure Regulator Included, Includes Pressure Tap Pressure Tap Inlet Included, Includes Side Taps Side Taps Included
