Ignition Module

Mfr # 780-001
Zoro # G2656525

$156.99

Free Shipping & Returns

Key Features

Retries

Continuous

Control Volts

24 V

Voltage

Electrical Ratings

Type

Nonlockout, 1 Rod or 2 Rod Sensing

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

780-001

Zoro #

G2656525

UPC #

662013633554

Country of Origin

Mexico

Details

Retries

Continuous

Control Volts

24 V

Voltage

Electrical Ratings

Type

Nonlockout, 1 Rod or 2 Rod Sensing

Item

Ignition Control

Electrical Connections

1/4 in Spades and Molex plug

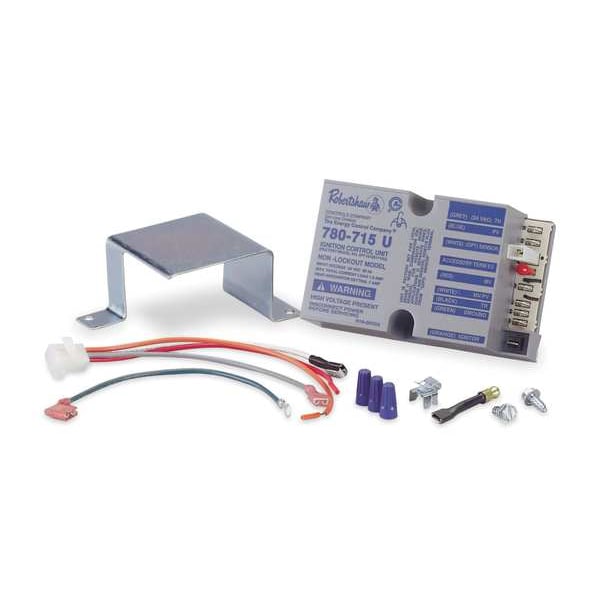

Includes

780-715 Module, Mounting Kit, Wiring Harness

Operation Description

Automatic Recycle Features Assure That, In The Event Of Flame Failure, Main Gas Is Disabled And The Spark Repetition Sequence Is Restarted Until Pilot Gas Is Ignited. Only After Pilot Ignition Has Been Re-Established Can Main Gas Be Returned To The Burner.

For Use With

Residential, Commercial Heating Equipment, Universal Replacement Spark Control Designed For Maximum Compatibility

Gas Type

Amps AC

1.5 A

Standards

cCSAus

Product Type

Ignition Control

Control Voltage

24V AC

Minimum Operating Temperature

-40 Degrees F

Series

780

For Fuel Type

Natural Gas

Main Valve Current Output

1.5 A

Maximum Operating Temperature

175 Degrees F

Application

LP/Natural Gas Furnaces

Pre-Purge Time

5 min

OEM Replacement Part Number

100-00821-02, 13707-23S, 4E958, 63355, 63550, 661400, 668-601, 73P47, 73P4701, 780-765, CSA35A-617R, CSA35A-618R, CSA42A-600R, CSA42A-601R, CSA42A-602R, CSA42A-603R, CSA42A-604R, CSA43A-600R, CSA44A-600R, CSA45A-601R, CSA45A-602R, CSA46A-600R, CSA48A-600R, G600AX-1, G600AY-1, G60AAG-1, G60AAG-3, G60AAG-4, G60AAG-5, G60AAG-6, G60CAG-5, G60CBG-1, G60CBG-10, G60CBG-11, G60CBG-12, G60CBG-14, G60CBG-16, G60CBG-17, G60CCG-1, G60CPG-1, G60DBG-1, G60DBG-2, G60DCG-1, G60DCG-2, G60DCG-3, G60DCG-4, G60DGB-1, G60PAG-1, G60PAG-2, G60PAG-3, G60PAG-4, G60PAG-5, G60PAG-6, G60PAJ-1, G60PAK-1, G60PAK-2, G60PFQ-1, G60QAG-2, G60QAG-4, G60QBG-1, G60QBG-2, G60QBG-3, G60QBG-4, G60QBG-5, G60QBG-6, G60QBG-7, G60QBG-8, G60QBG-9, G60QBH-1, G60QBK-1, G60QBL-1, G60QBL-2, G60QCJ-1, G60QCL-1, G60QDG-1, G60QLG-1, G60QPL-1, G60QRL-2, G60QRL-3, G60RAG-1, G60RBG-1, G60RBG-2, G60RBG-3, G60RBK-1, G60RBK-2, G60RCG-1, G60RCG-2, G60RCJ-1, G60RDG-1, G60RDK-1, G60RHP-1, G60RPL-1, G65BBG-1, G65BBG-2, G65BBG-3, G65BBG-4, G65BBG-5, G65BBG-6, G65BBG-7, G65BBG-8, G65BBM-1, G65BBM-2, G65BBM-3, G65BBM-4, G65BCG-1, G65BCM-1, G65BFG-1, G65BKG-1, G65BKG-2, G65BKG-3, G65BKM-1, G65BKM-2, G65BKM-3, G65BLG-2, G66AG-1, G66AG-2, G66BG-1, L37-706, L37-838, LH33AP101, LH33CM600, LH33CZ003, P361-3904, P771-1033, P771-1035, R8184G 1013, R8184G 1161, S8600F1000, S8600F1034, S8600F1042, S8610A1009, S8610F1008, S8610F1016, S86A1001, S86A1019, S86A1027, S86A1035, S86B1009, S86B1017, S86B1025, S86E1002, S86E1010, S86E1028, S86E1036, S86E1044, S86E1051, S86E1069, S86E1077, S86E1101, S86E1119, S86E1127, S86F1000, S86F1018, S86F1026, S86F1042, S86F1059, S86F1067, S86F1075, S86F1083, S86F1091, S90A1005, SP715, SP715A, SP715U, USI715U

Replacement Type

Universal

Electrical Connection Type

1/4 in Spade Terminals, Molex Plug

Pilot Valve Current Output

1 A

Compatible with Series

Universal

Flame Sensor Current Output

0.7 mA

Input Voltage

24V AC

Number of Retries

Maximum Input Current

1.5 A

Compatible with Brand

Carrier, Goodman, Honeywell, Johnson Controls, Johnstone Supply, Lennox Industries, Robertshaw, Uni-Line, Westward

Lock Out Time

1 min

Ignition Cycle Time

60 seconds

Thermostat Anticipator Setting

Thermostat Anticipator

Frequency

50/60 Hz

Description

Ignition Control, Product Type Ignition Control, Maximum Operating Temperature 175 Degrees F, Minimum Operating Temperature -40 Degrees F, Lock Out Time 1 min, Pre-Purge Time 5 min, Number of Retries 3, Main Valve Current Output 1.5 A, Flame Sensor Current Output 0.7 mA, Ignition Cycle Time 60 seconds, Automatic Reset Time Not Applicable, Compatible with Series Universal
